AvailableTurn-Mill CNC Lathe

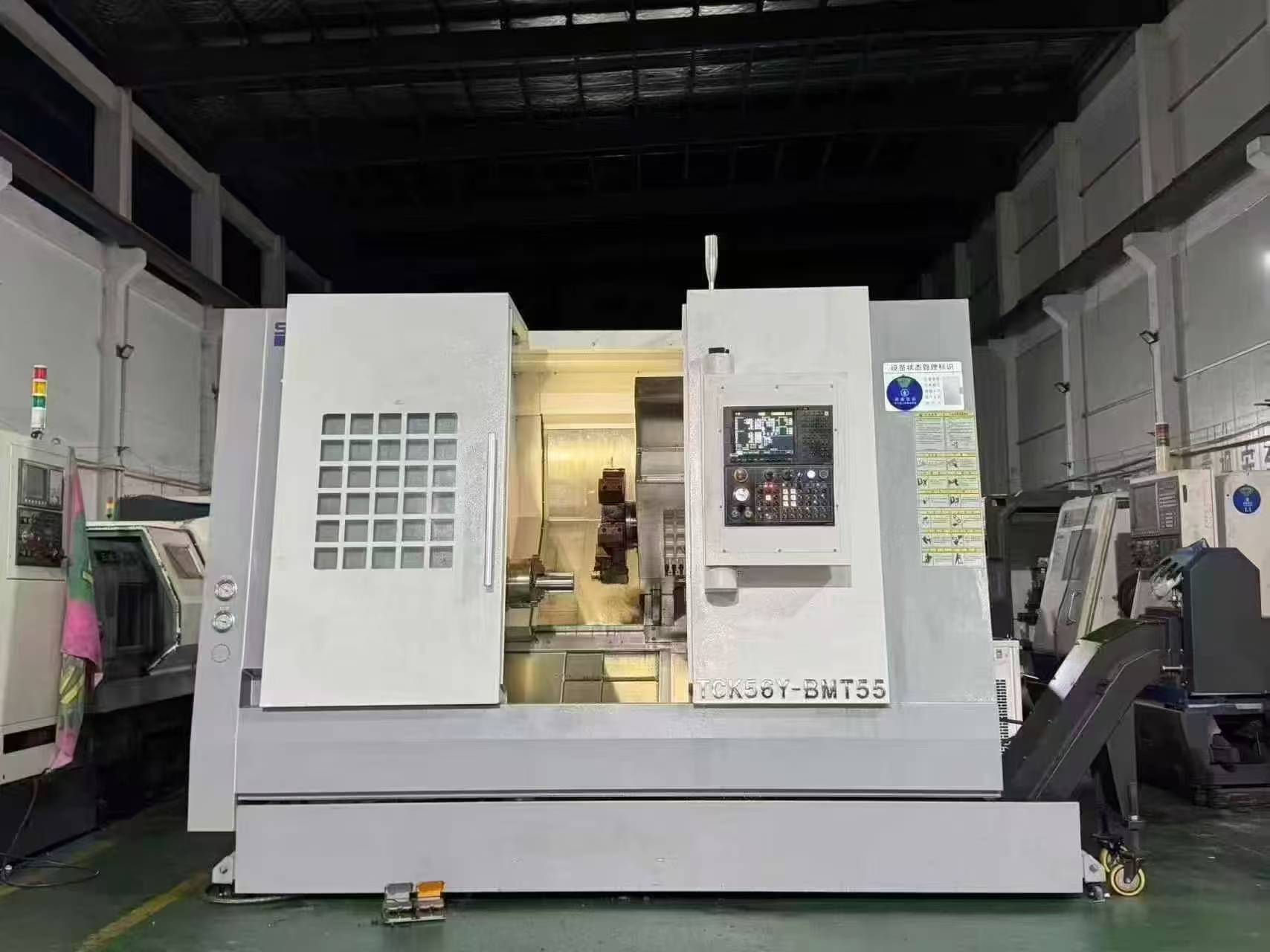

Used Shenyang Xisi TCK 56 Y Turn-Mill CNC Lathe

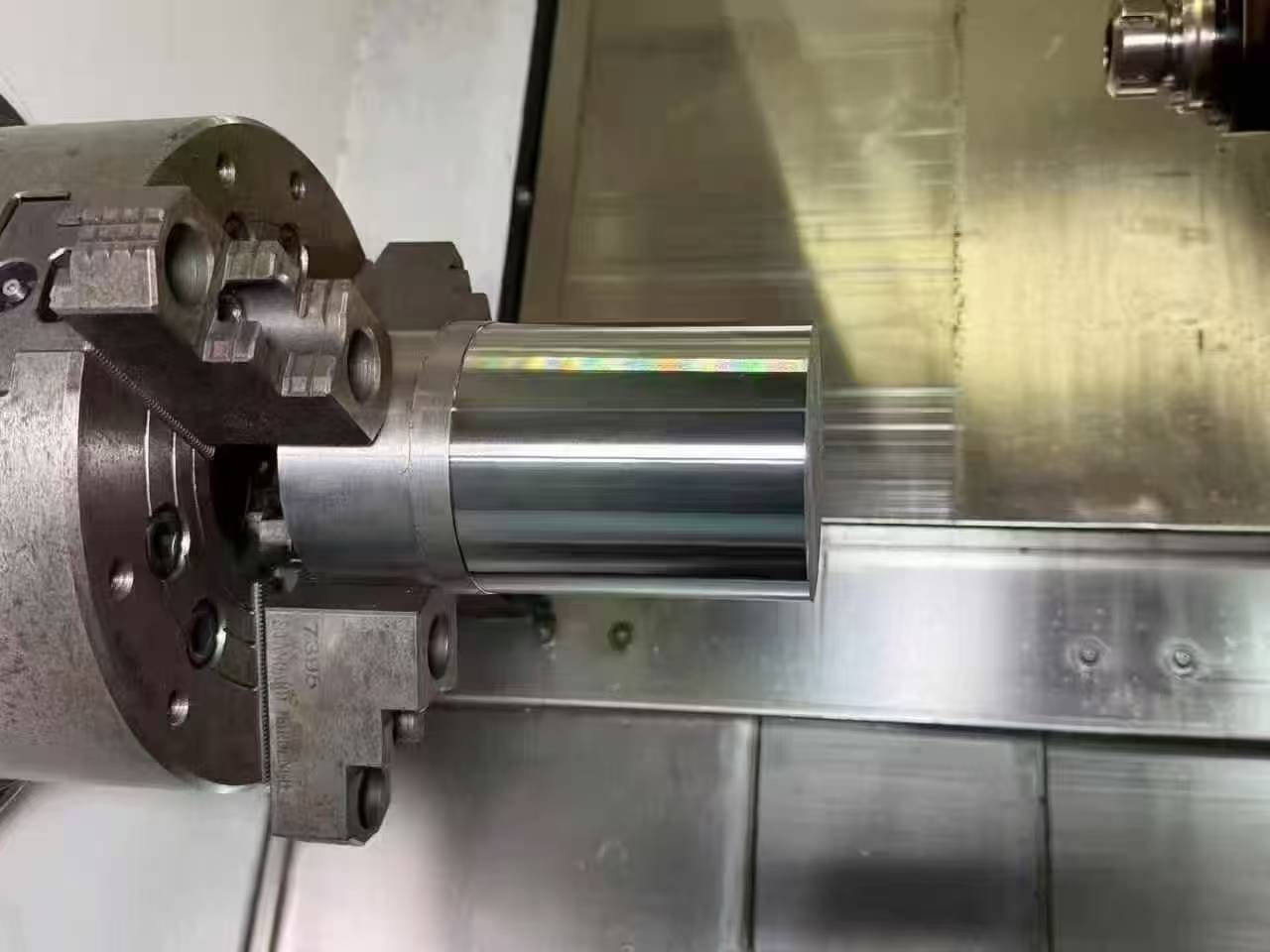

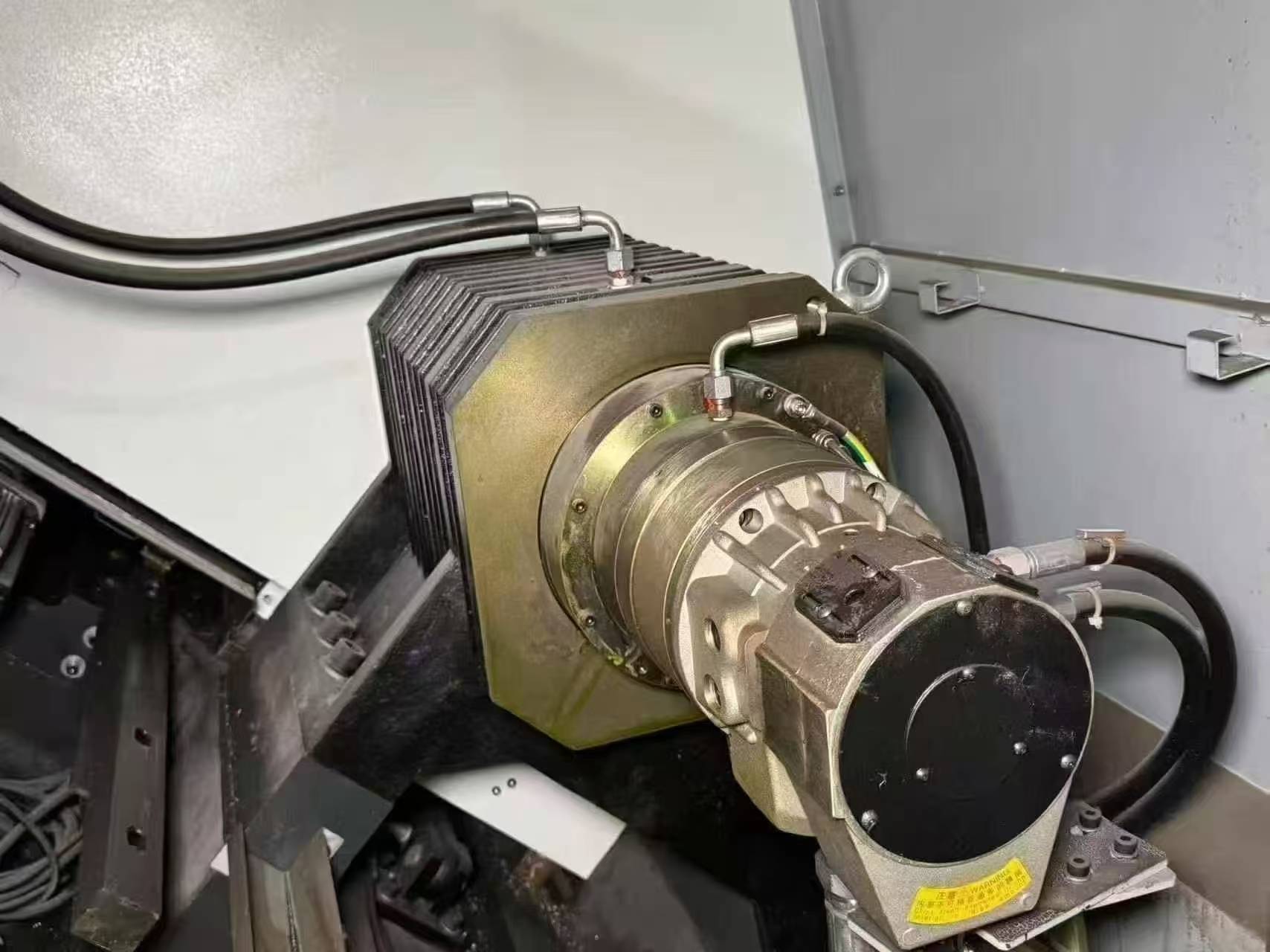

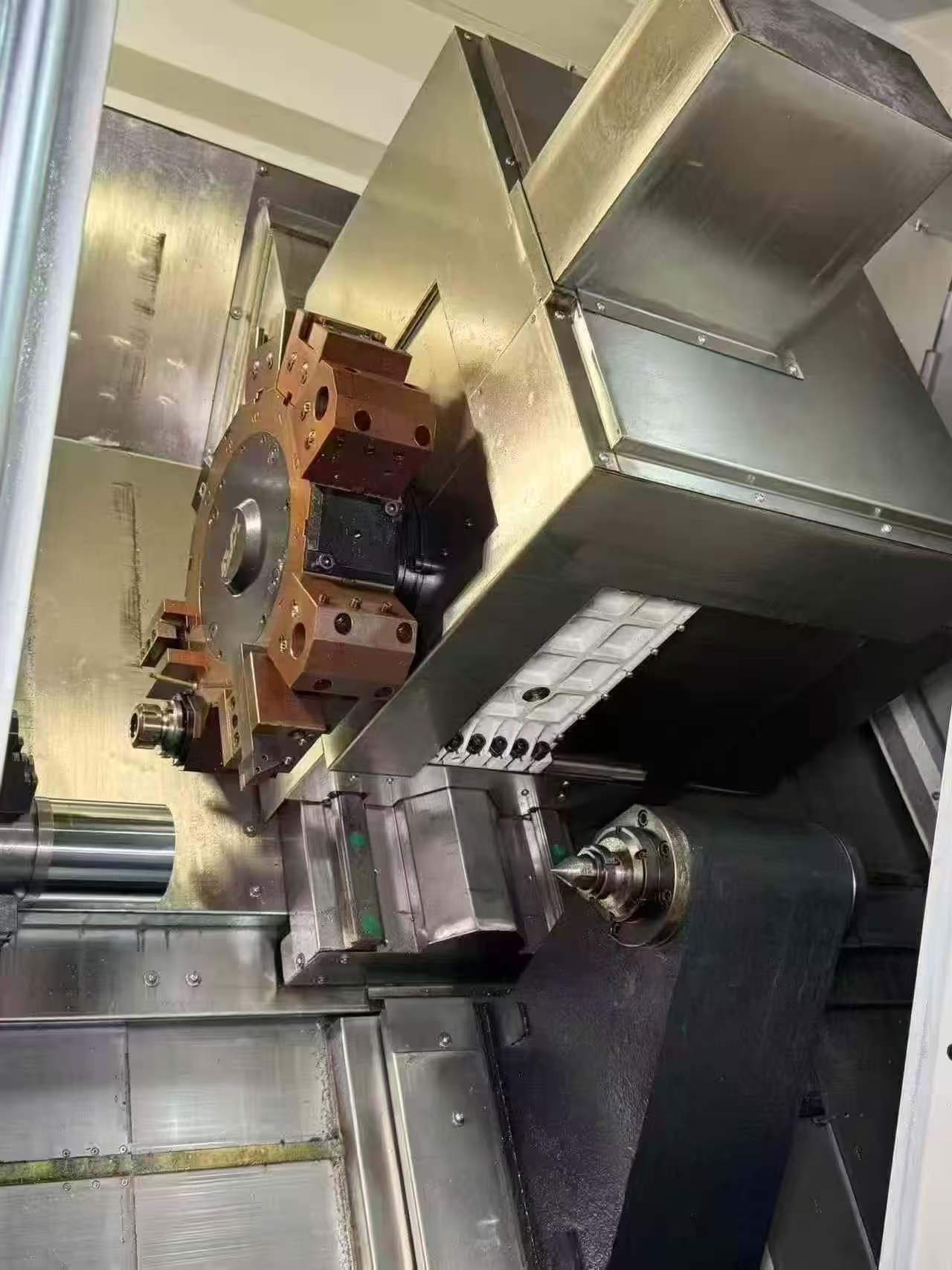

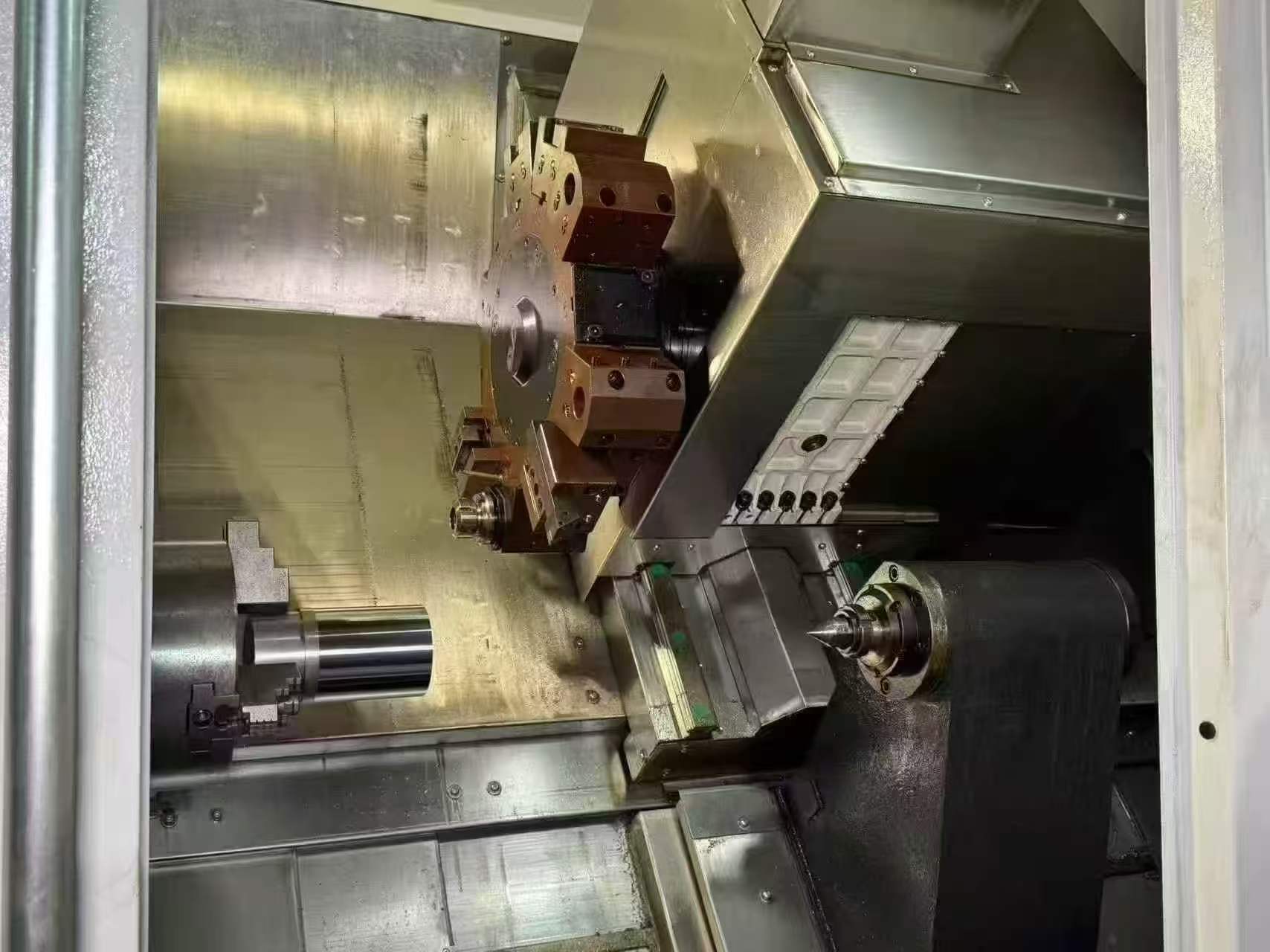

Shenyang Xisi TCK 56 Y turn-mill center with Y-axis and live tooling. 45° slant bed integral casting. Equipped with 12-station BMT-55 live tool turret, 30 kW high-speed high-precision motorized spindle, C-axis function, and Beijing KND H 32 iPLUS control system. Heavy-duty roller linear guideways on X and Z axes. Tested with perfect surface finish and 0.01 mm accuracy. All axes run smoothly without noise. Reliable and durable.

Machine Code: TML260709
Year: On request
Location: China
Usage Hours: On request

Accessories

Hydraulic chuck, tailstock center, chip conveyor (not specified but included if present? Not mentioned explicitly, so leave blank)

Email Inquiry

Main Specifications

Spindle speed	50-4500 rpm
Maximum swing over bed	560 mm
Maximum cutting diameter	360 mm
Maximum workpiece length	500 mm
Y-axis travel	100 mm
Spindle bore	65 mm (A 2-6)
Turret stations	12 (BMT-55 live tooling)
Spindle motor power	30 kW

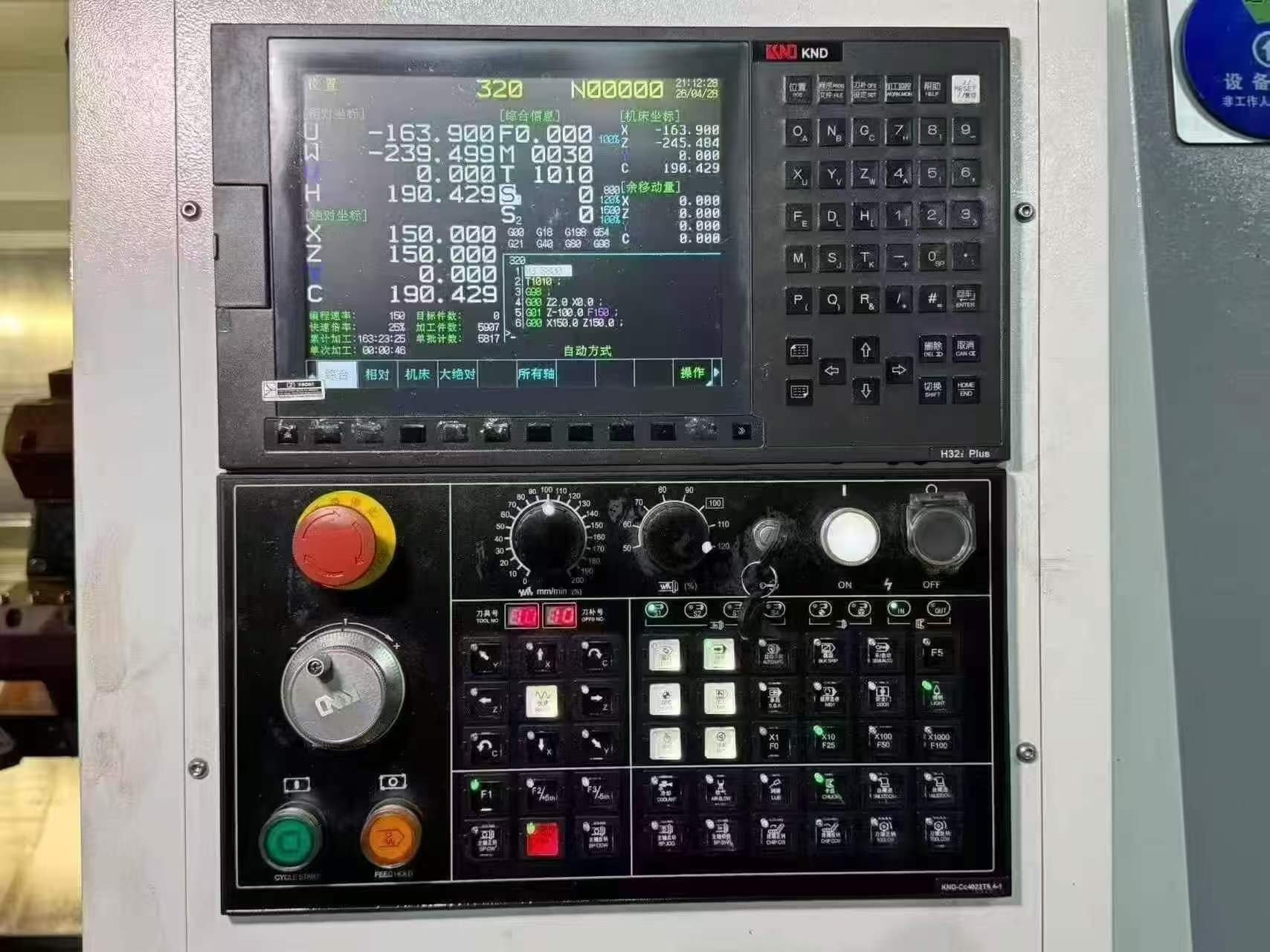

Control system	Beijing KND H 32 iPLUS
