AvailableHorizontal Machining Center

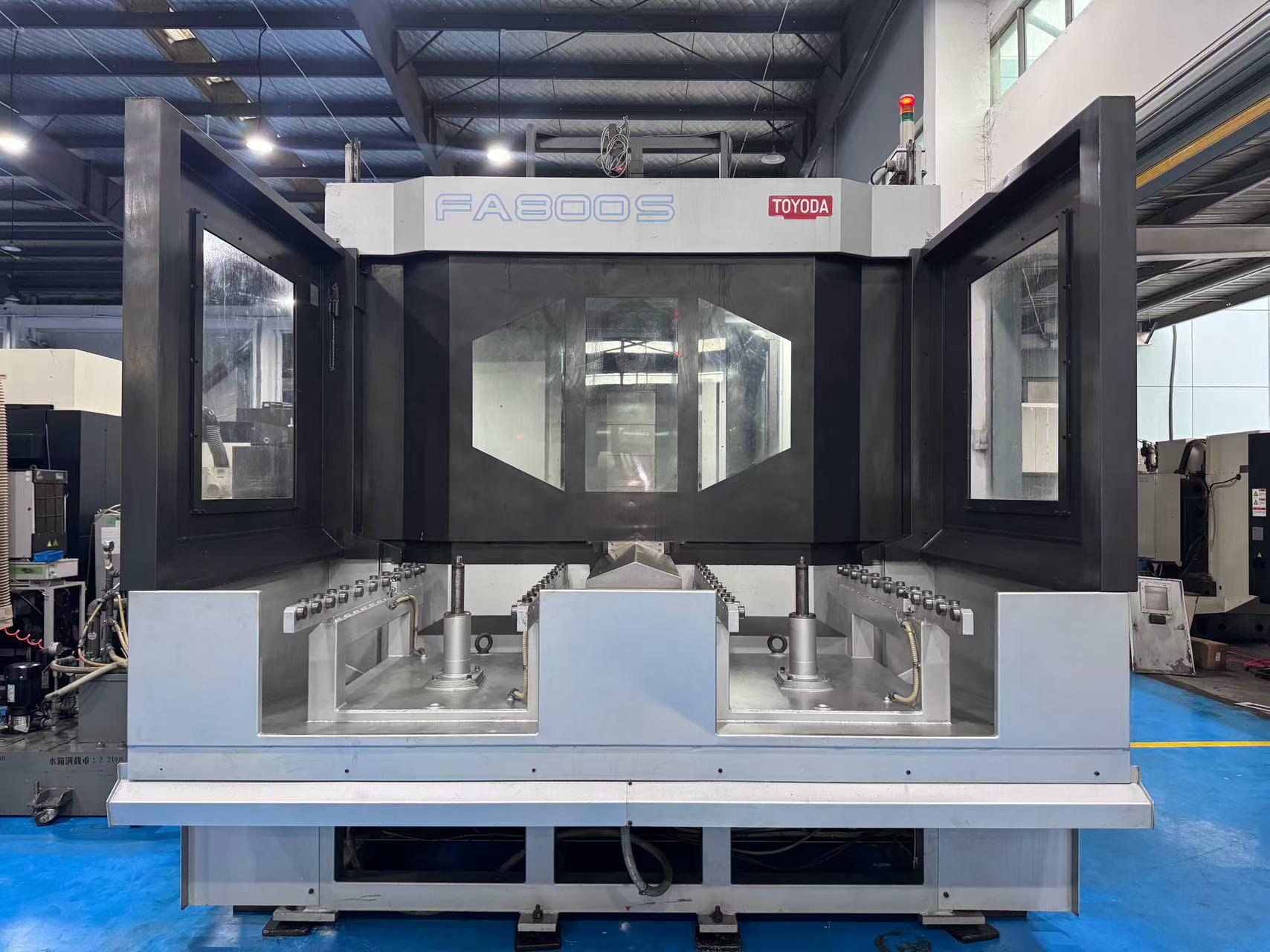

Used Toyoda FA 800 S Horizontal Machining Center with Fanuc 31 i

8 units of Toyoda FA 800 S horizontal machining centers with dual worktables available from stock. Travel: 1350 x 1150 x 1150 mm. Spindle: BT50, 6000 rpm. 60 tools x 2 units, 190 tools x 6 units. FANUC 31i-A control. Options: 30 kg through-spindle coolant, Renishaw probe, tool breakage detection, chip wash, top spray. Years: 2011/2012.

Machine Code: HMC260703
Year: 2011
Location: China
Usage Hours: On request

Accessories

30 kg through-spindle coolant, Renishaw probe, tool breakage detection device, chip wash, top spray

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	6000 rpm
X/Y/Z travel	1350 x 1150 x 1150 mm
Spindle taper	BT50

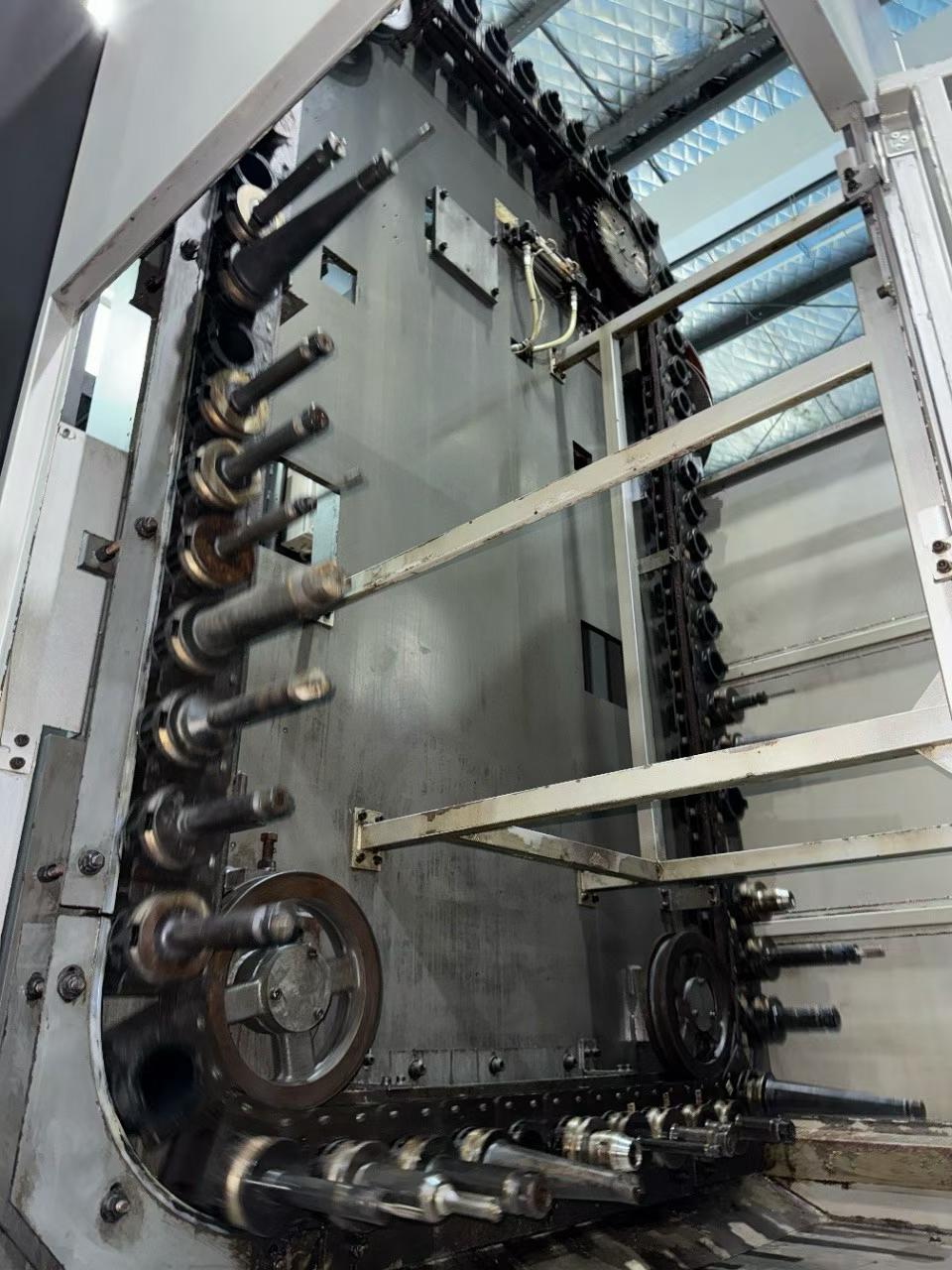

Tool magazine capacity	60 tools (2 units), 190 tools (6 units)
Year	2011/2012
Machine Type	Dual-table horizontal machining center
Brand	Toyoda
Model	FA 800 S
Indexing Accuracy	0.001 degree

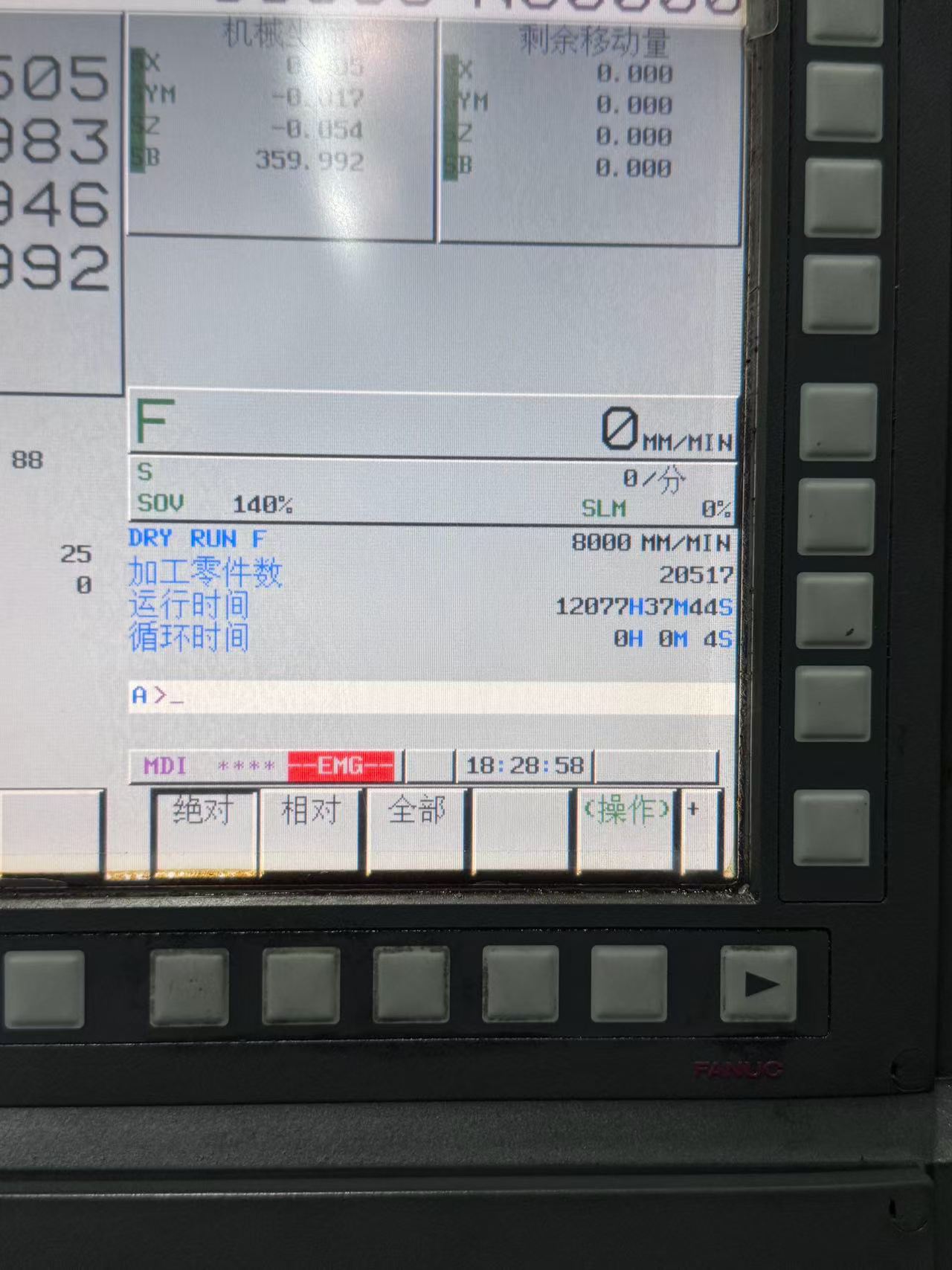

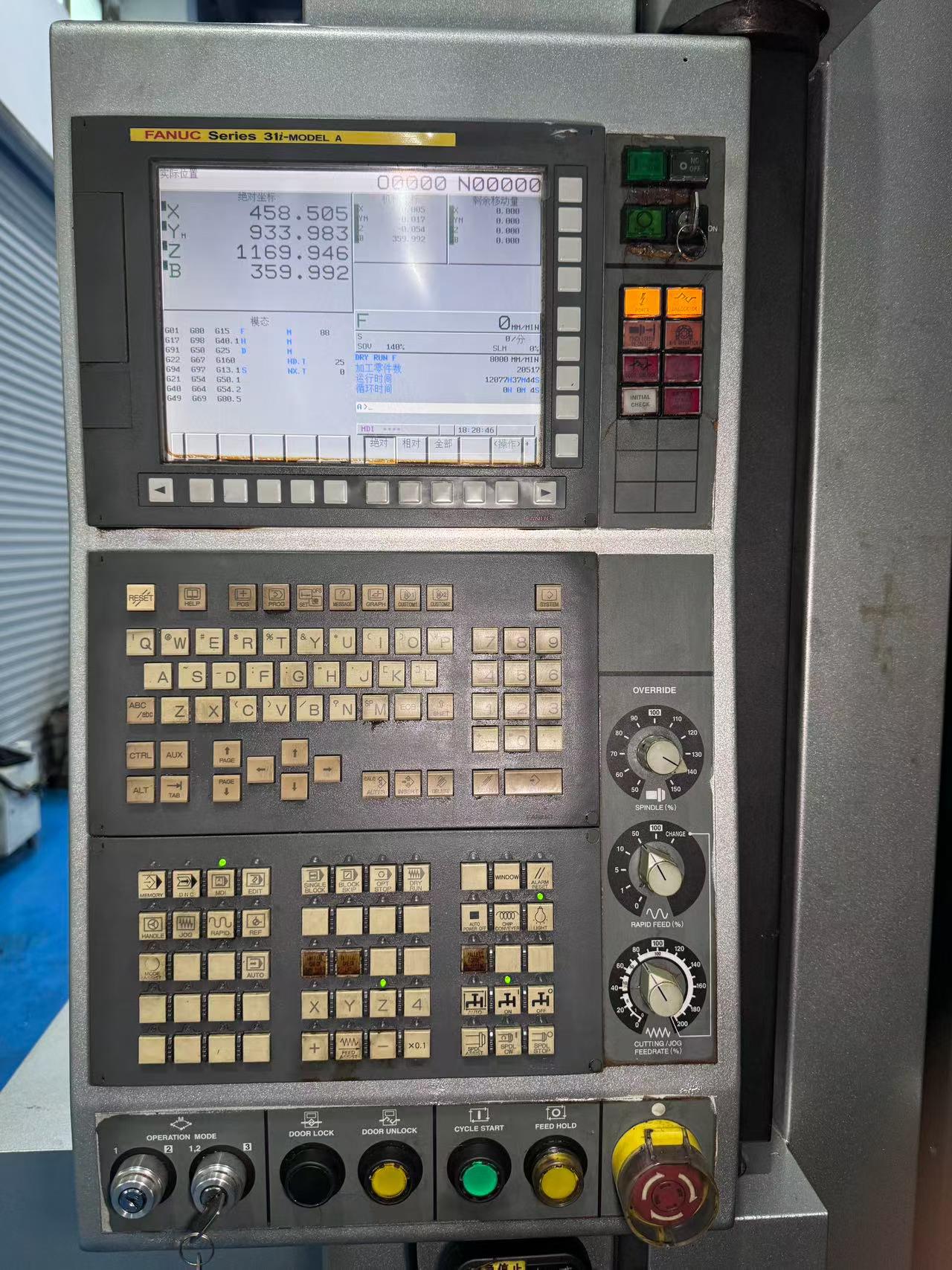

Controller	FANUC 31i-A
Through-spindle Coolant	30 kg/cm² pressure
Top Spray Coolant	Included
