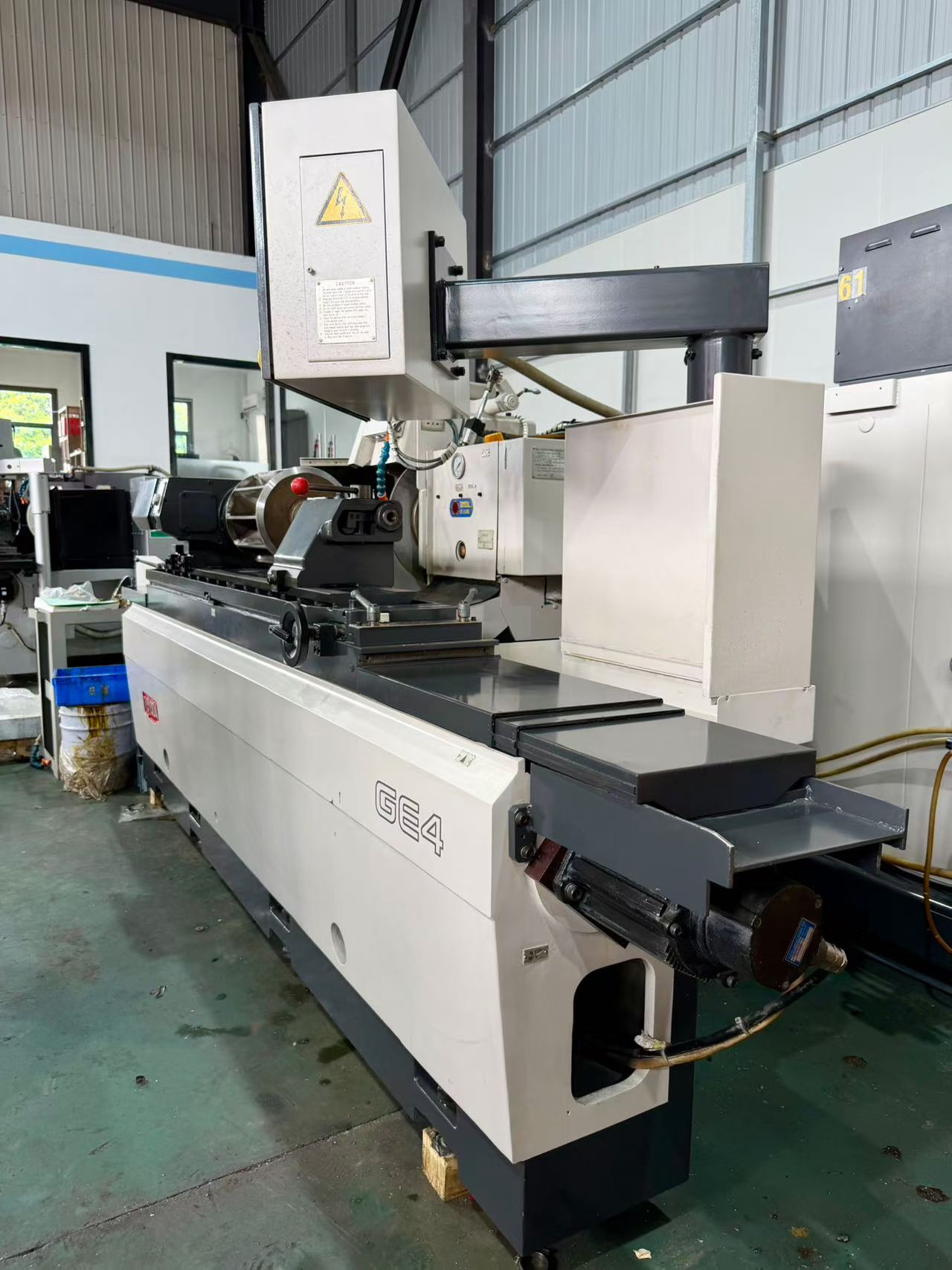

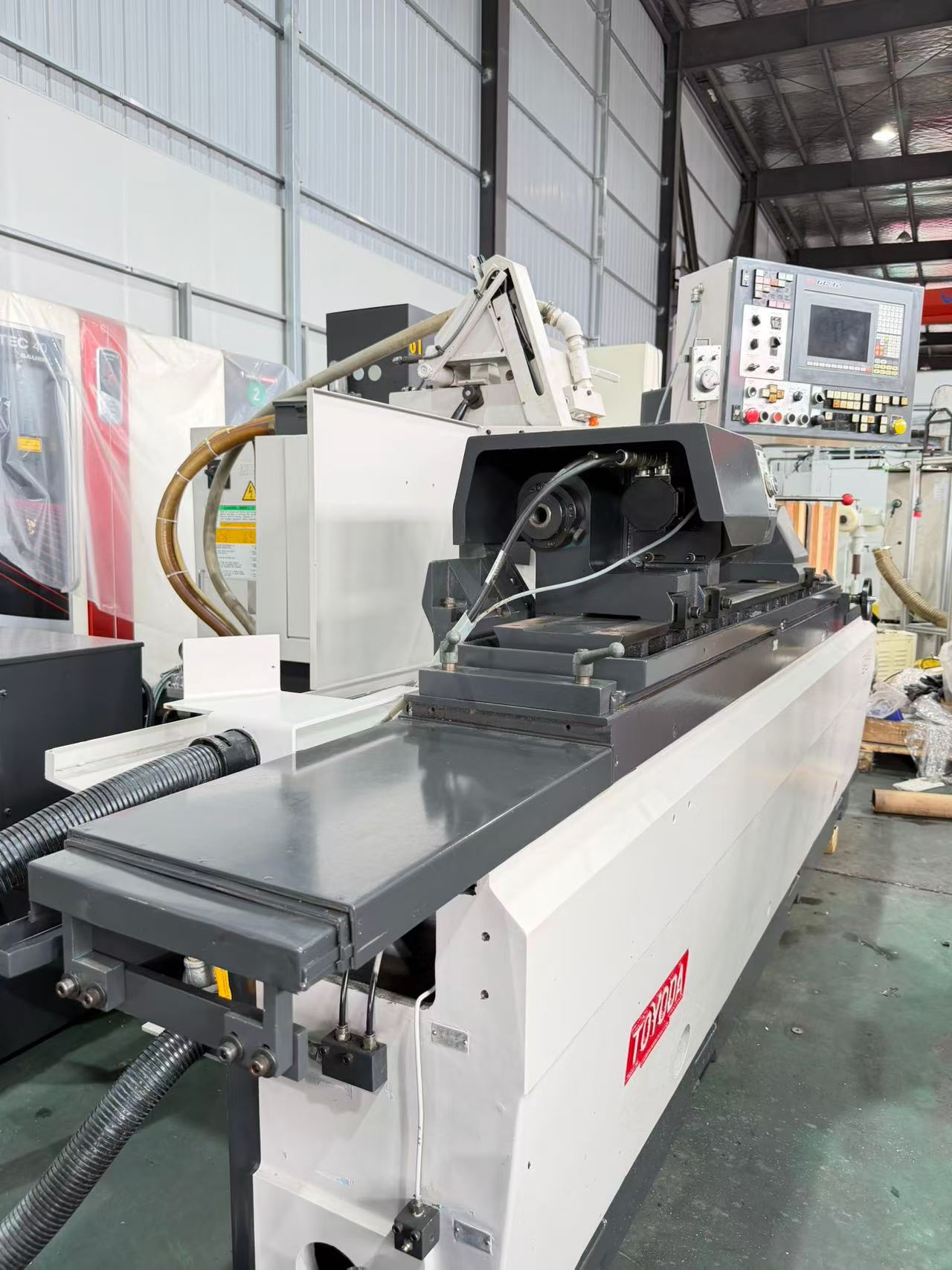

Used Toyoda GL 4 P-100 CNC Cylindrical Grinding Machine

Arrived from Japan. New machine cost over 2 million RMB. Workpiece center table feed angle: 90°.

Accessories

Face measurement, outer diameter measurement (Tokyo Precision), hydraulic tailstock

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Swing on table	320 mm
Distance between centers	1000 mm
Max load between centers	150 kg

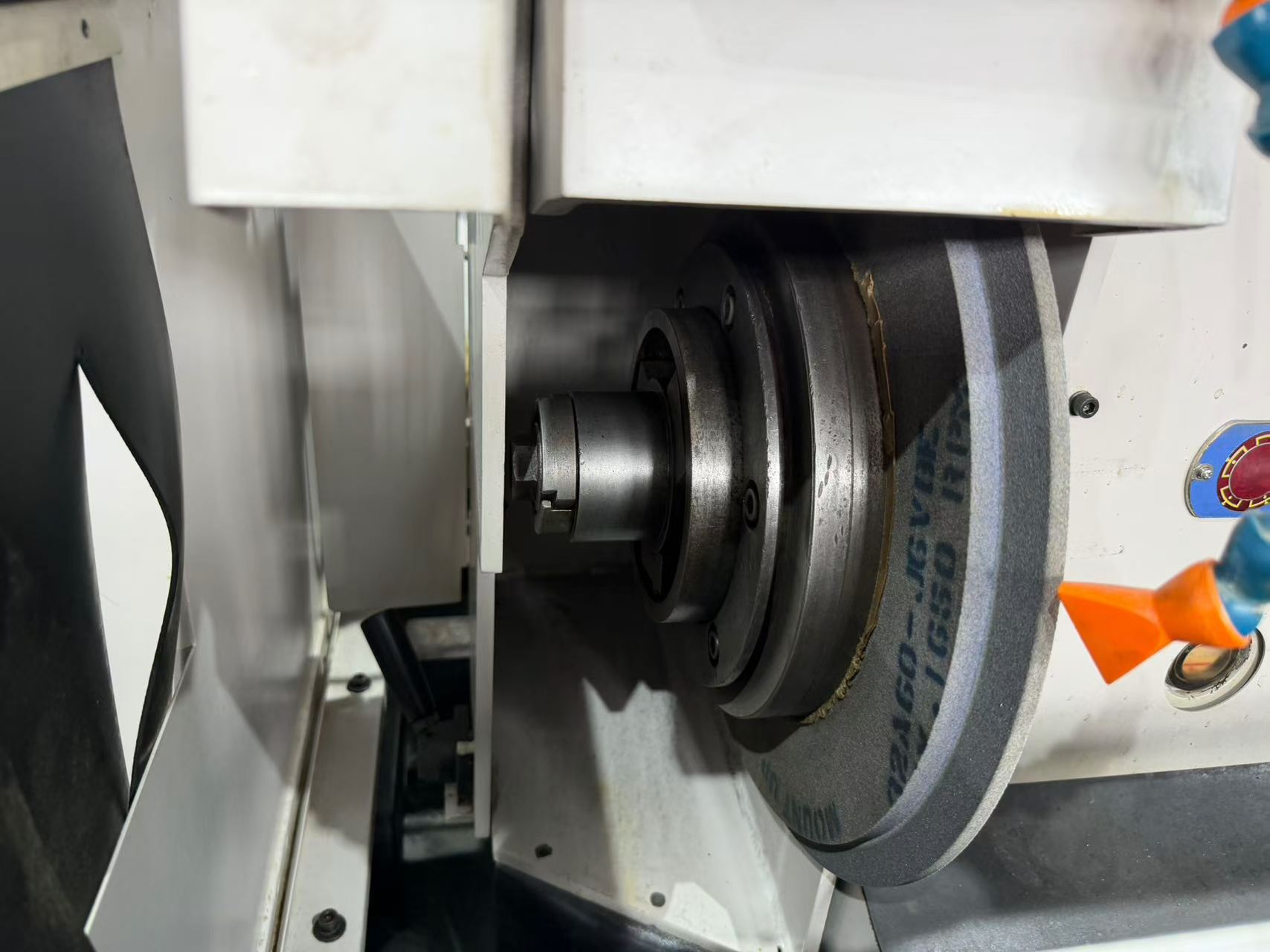

Wheel size (OD × width × ID)	405 x 75 x 127 mm
Wheel rotational speed	2120 min⁻¹
Peripheral speed	45 m/s
Worktable full travel	1270 mm
Rapid traverse	15 m/min
Minimum setting unit	0.0001 mm
Worktable swivel angle (CCW-CW)	10° - 0°
Machine dimensions (L×W)	4100 x 2050 mm
Machine weight	4500 kg
Machine Type	Cylindrical Grinding Machine

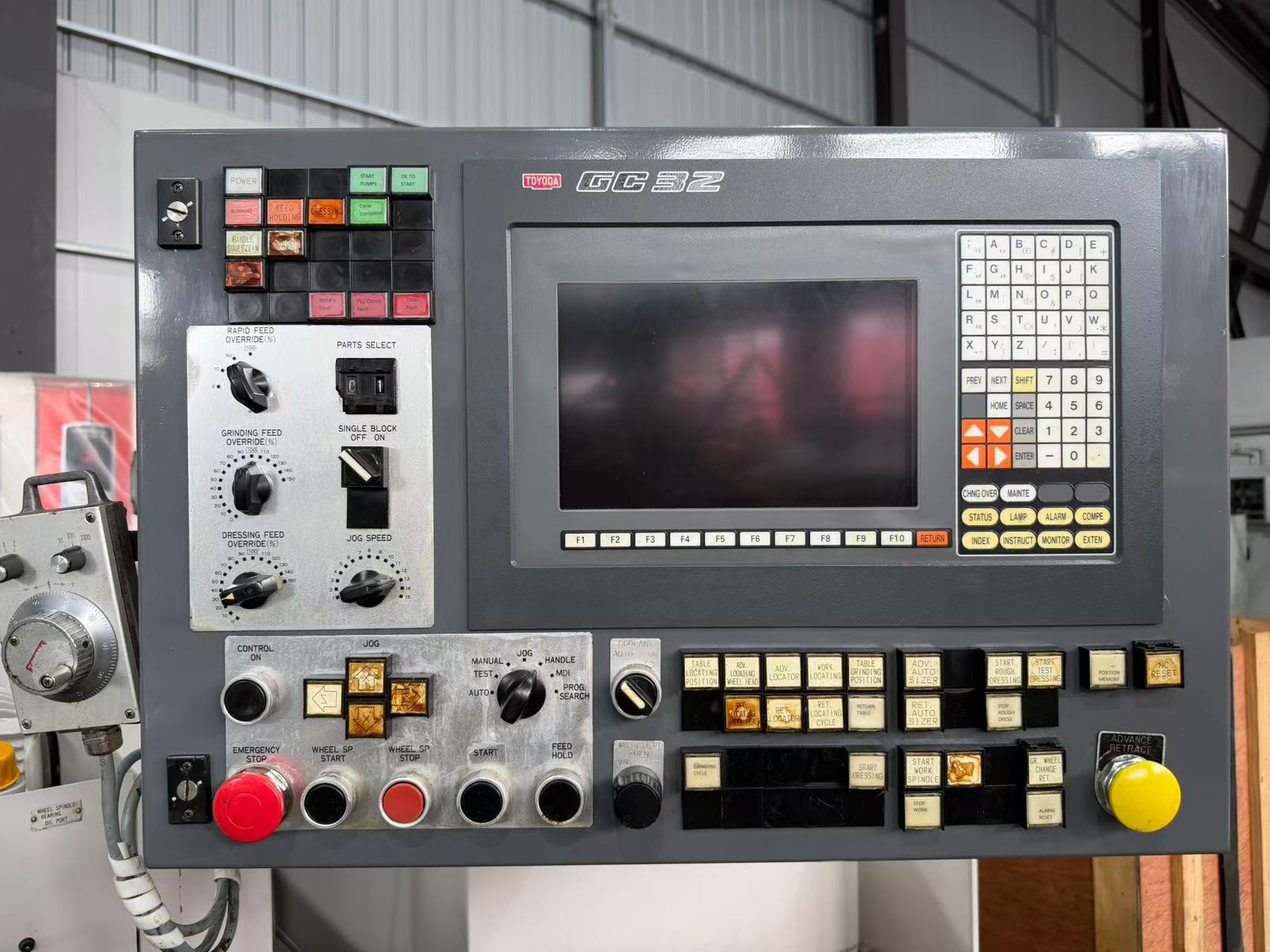

Controller	Toyoda GC 32 with conversational interface
Spindle Type	Hydrostatic spindle
Original Price	>2,000,000 RMB
Worktable Feed Angle At Workpiece Center	90°
Wheel Size	405 x 75 x 127 mm
Worktable Swivel Angle (with End Face Measurement)	10° - 0°
Outside Diameter Measurement	Tokyo Precision
Hydraulic Tailstock	Included
Machine Dimensions	4100 x 2050 mm
Brand	Toyoda
Model	GL 4 P-100
Worktable Type	45 m/s
Rapid Traverse Speed	15 m/min
Worktable Swivel Angle (ccw - Cw)	10° - 0°
End Face Measurement	Included
