Back to machines
AvailableTurn-Mill CNC Lathe

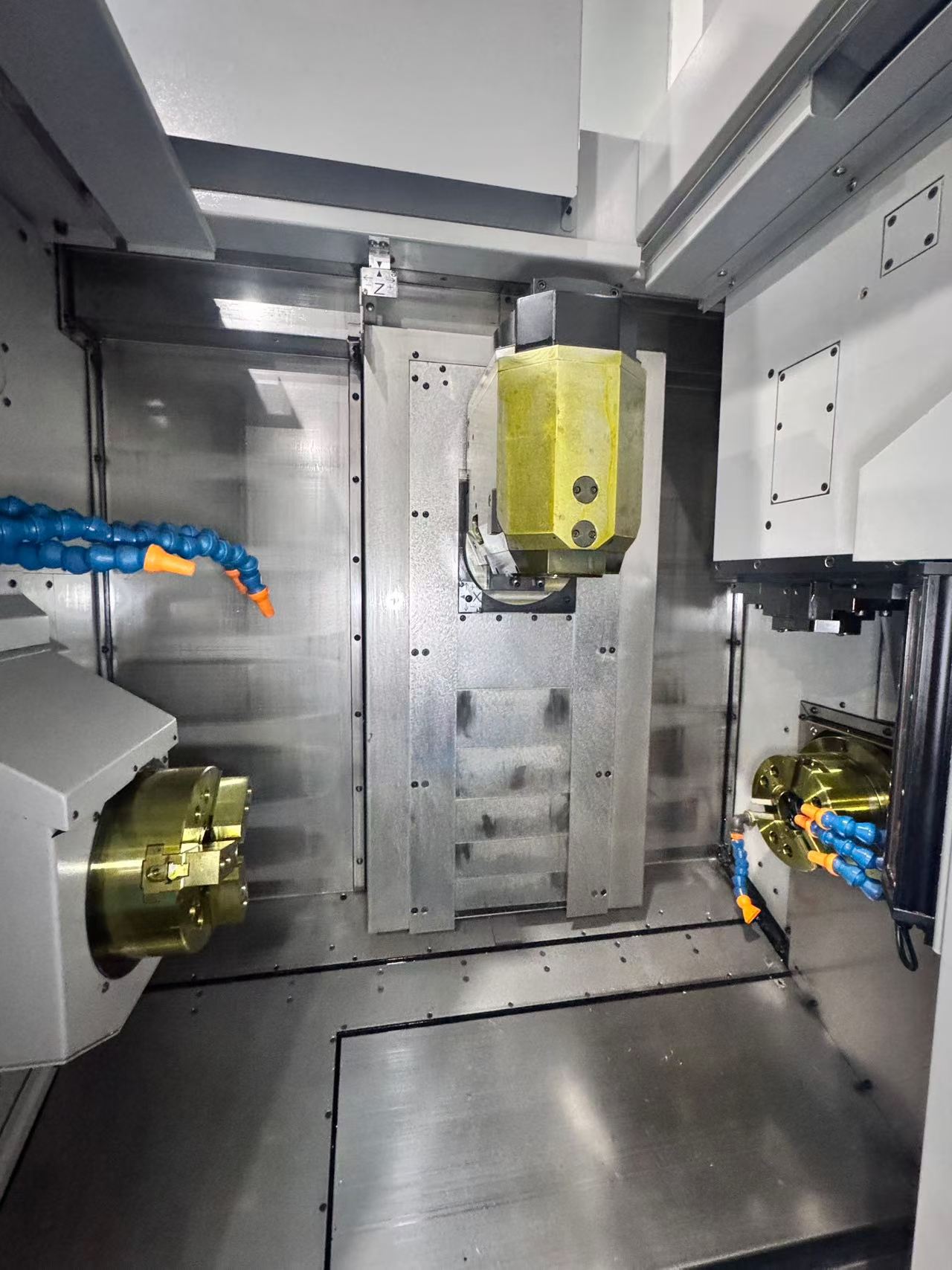

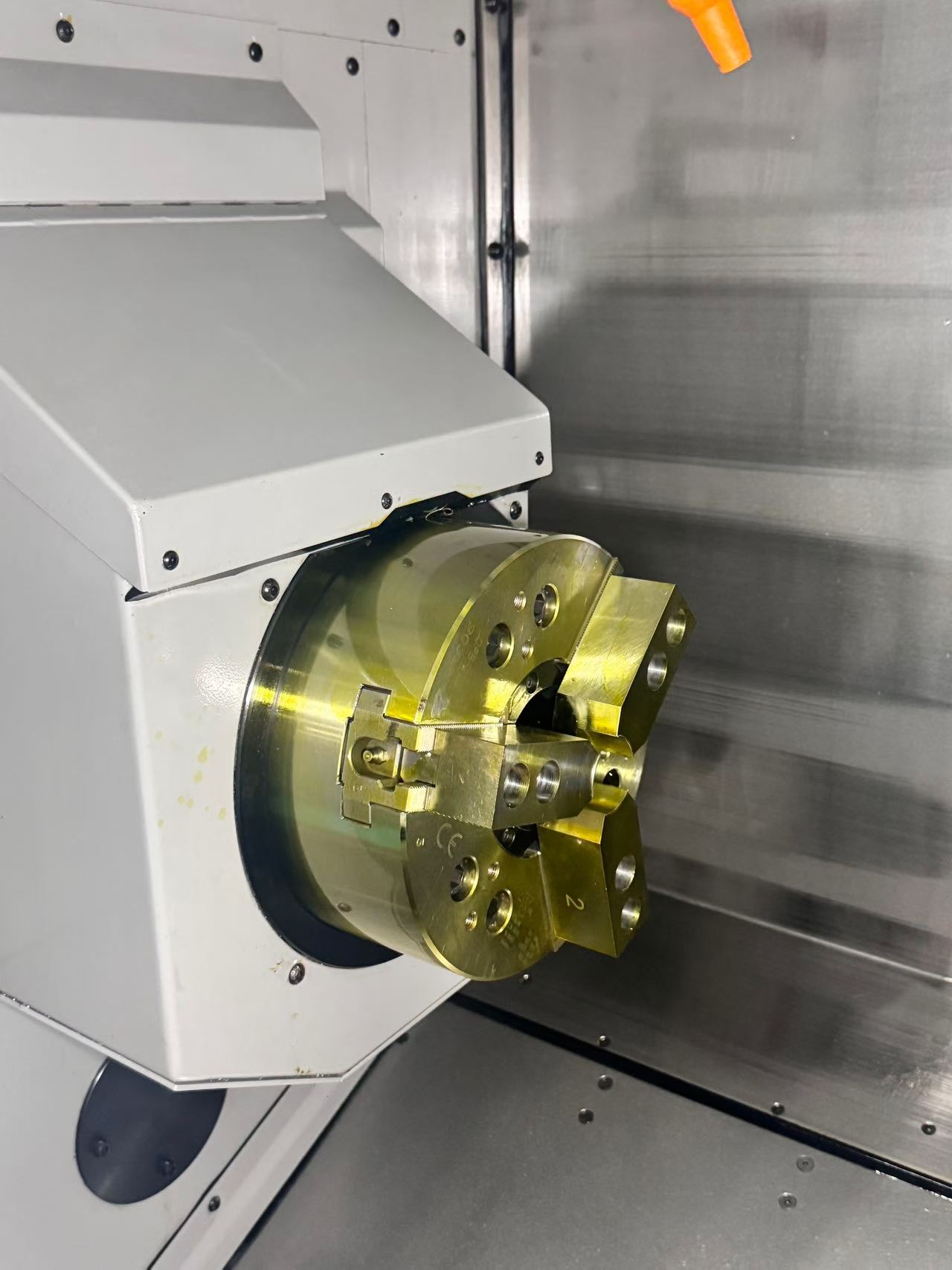

Used Tsugami TMA 8 J Turn-Mill Center with Fanuc 0iTF

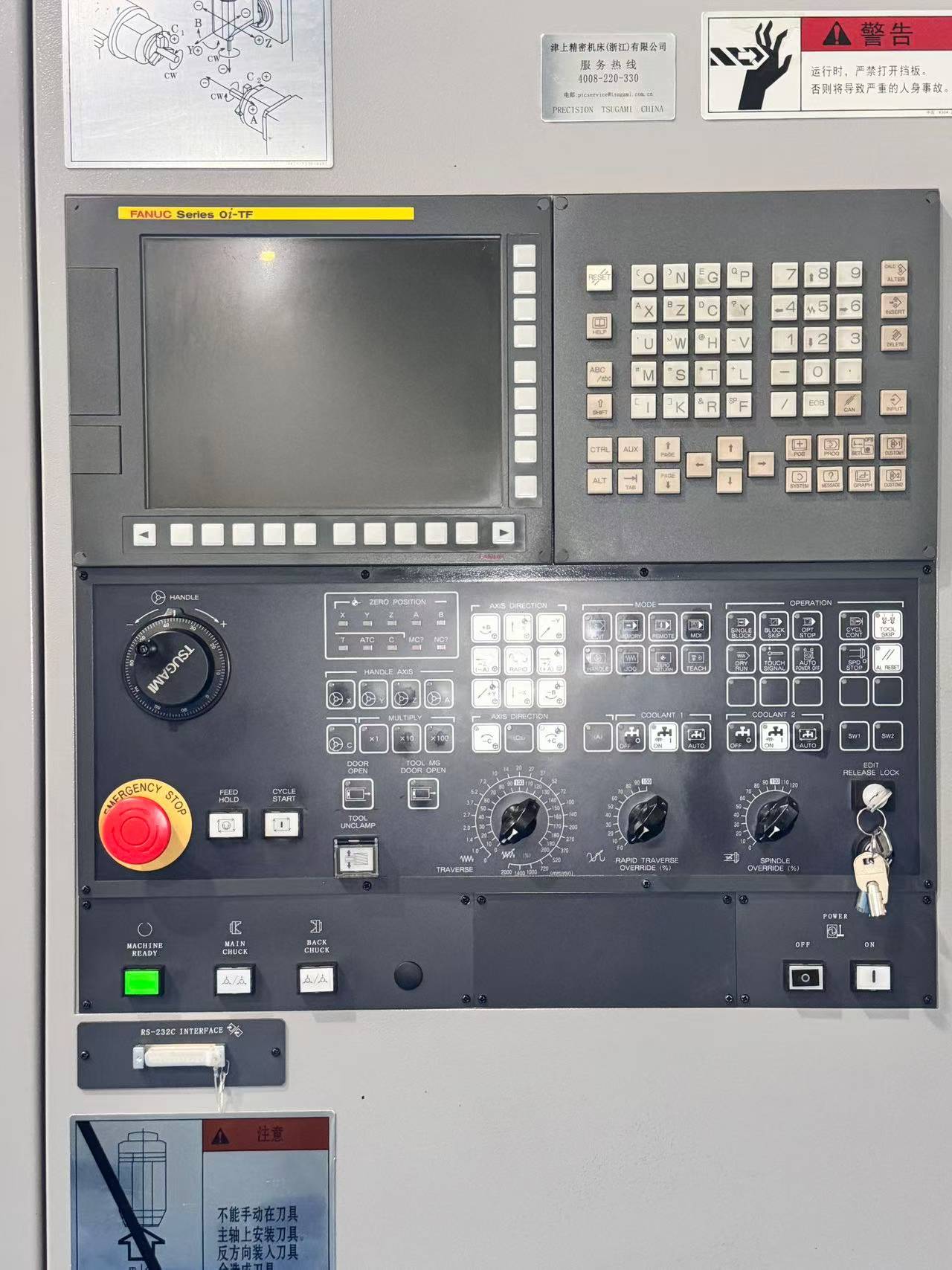

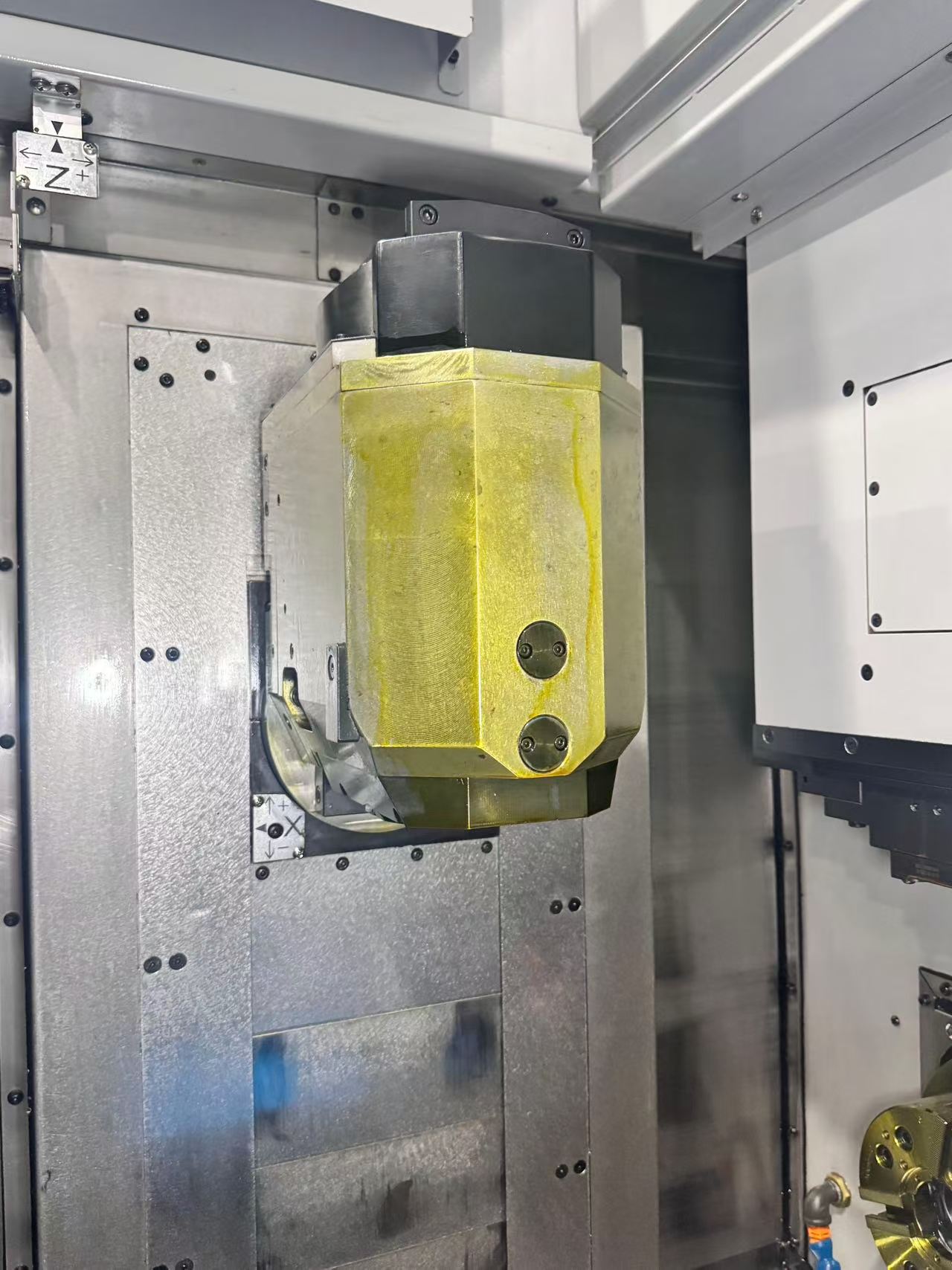

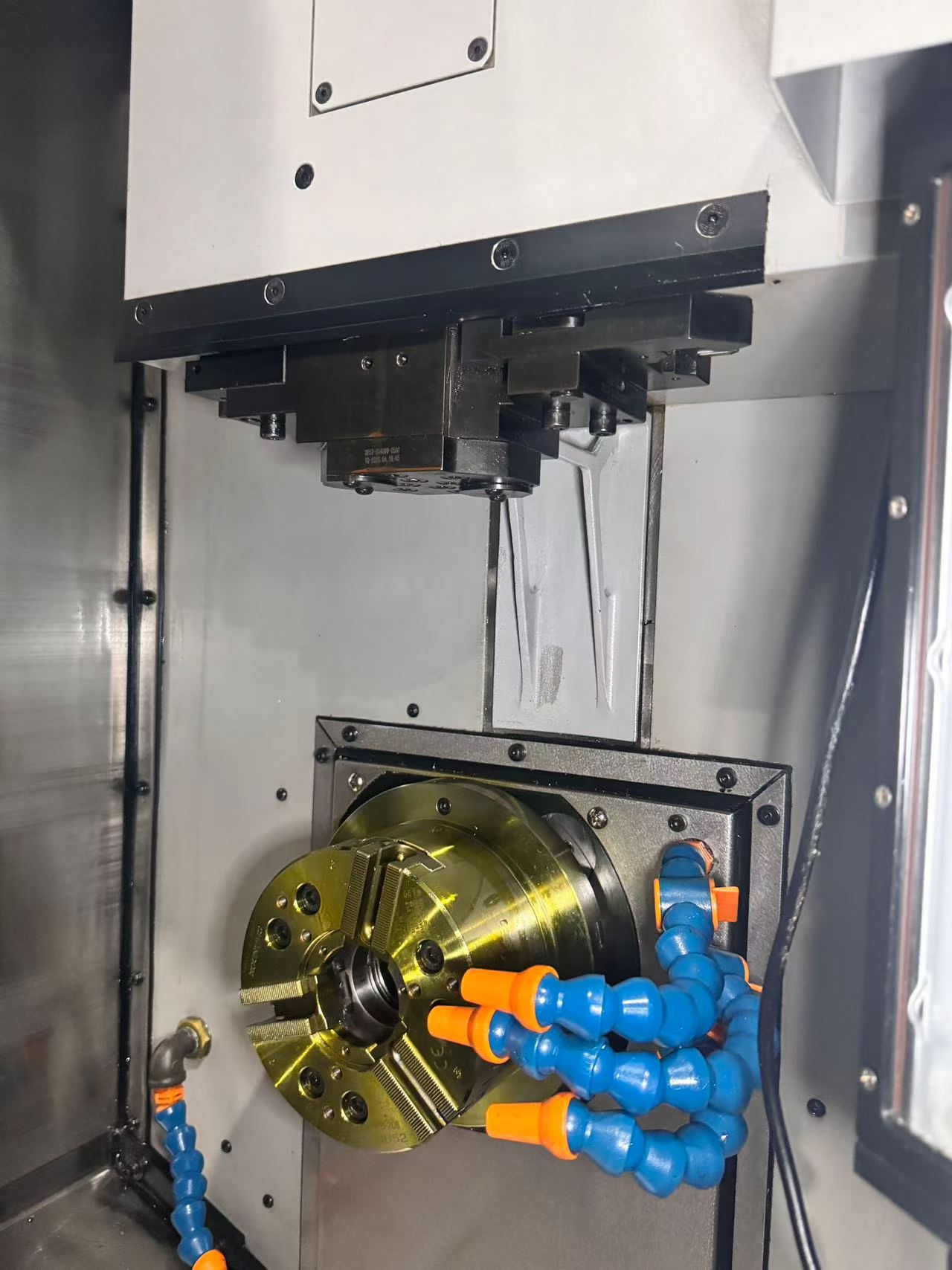

Available from stock: Tsugami TMA 8 J Turn-Mill Center. Fanuc 0iTF control. Equipped with main spindle, sub-spindle, and tool spindle with B-axis. 60-position servo tool magazine. Lightly used since 2020.

Machine Code
TML260606
Year
2020
Location
China
Usage Hours
On request

Accessories

Chip conveyor with chip bucket, spindle oil cooler, through-spindle coolant (center through)

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Maximum machining diameter220 mm
Bar capacity65 mm
Maximum machining length580 mm
Main spindle speed5000 rpm
Main spindle power11/15 kW
Main spindle torque210 Nm
Sub-spindle speed5000 rpm
Sub-spindle power5.5/11 kW
Sub-spindle torque131 Nm
Tool spindle speed20000 rpm
Tool spindle power11 kW
B-axis travel-15 to 195 deg

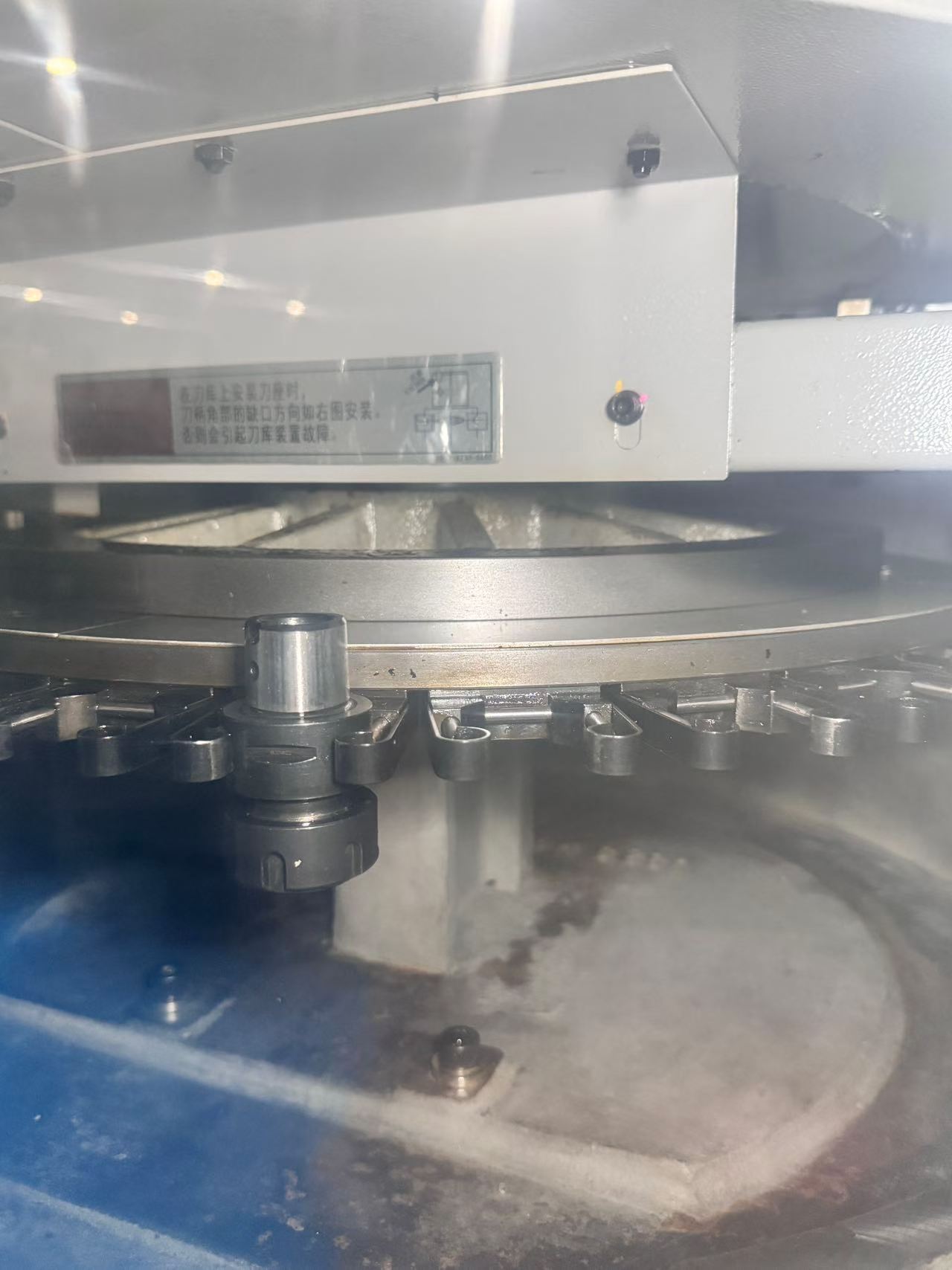

Tool magazine capacity60
X/Y/Z travel860x130x750 mm
Rapid traverse (X/Y/Z)30/24/40 m/min
Machine dimensions4300x2200 mm
Year of manufacture2020
