Used Yalis VL-1690 CNC Machining Center with FANUC MF Plus

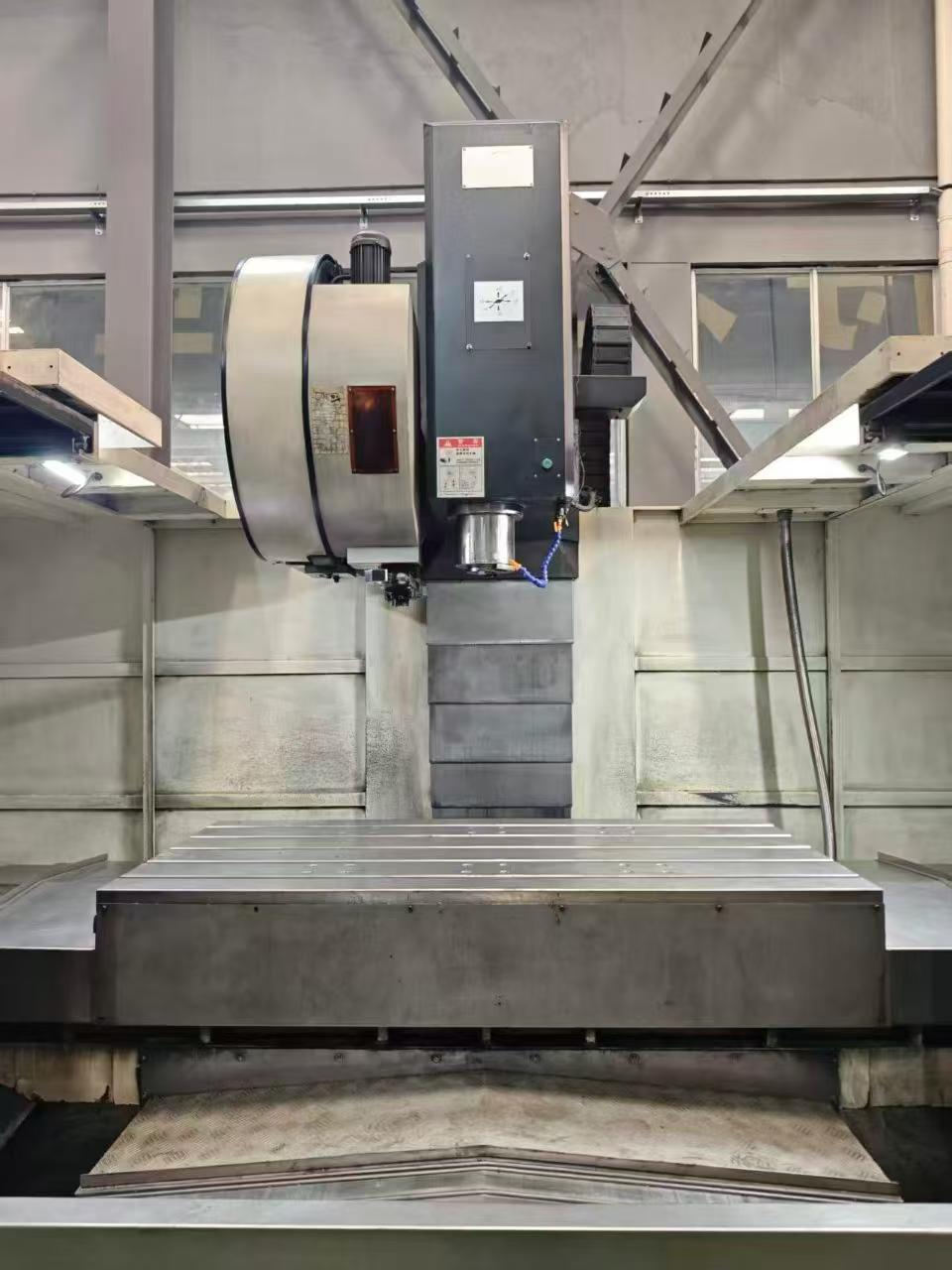

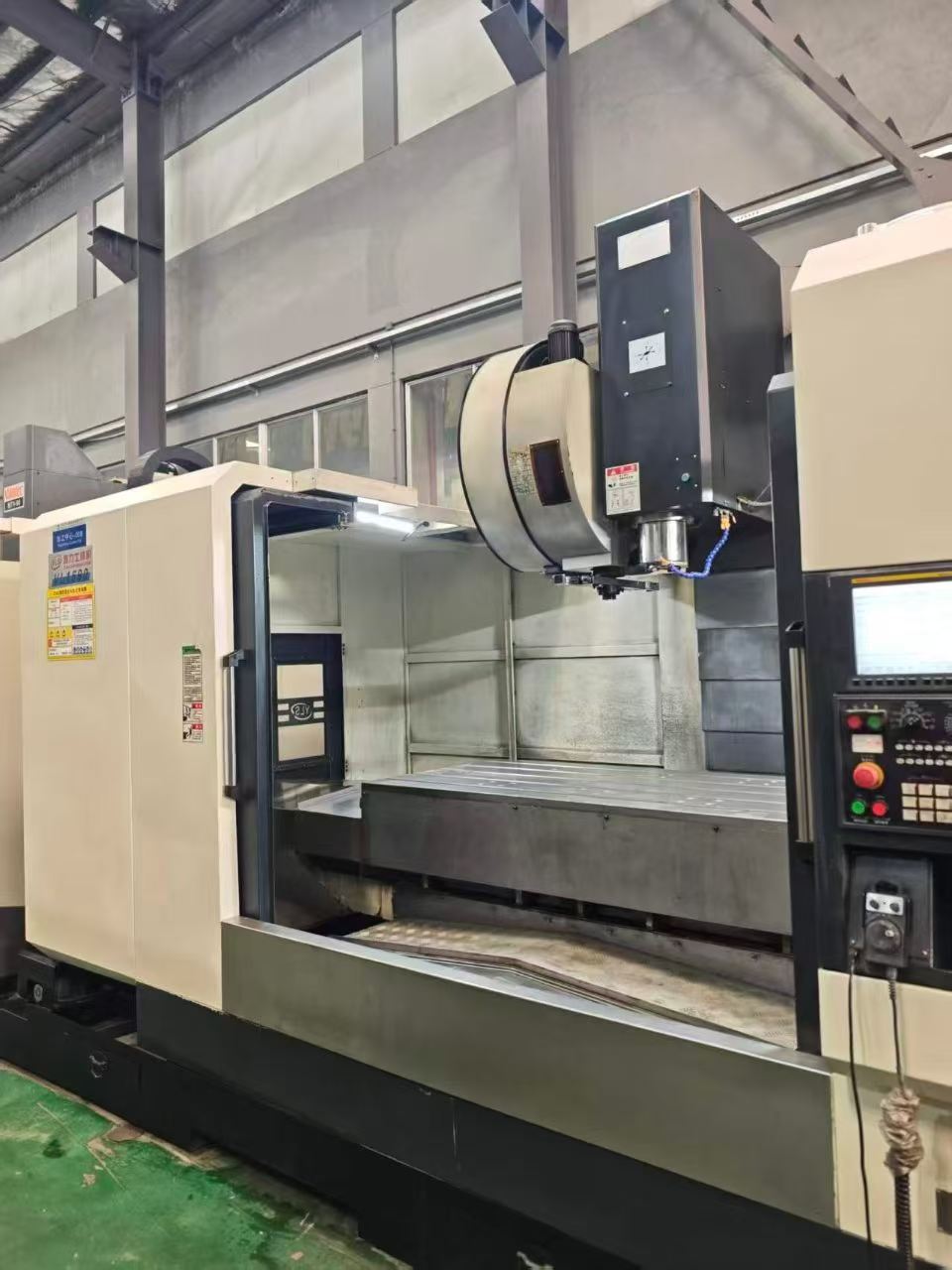

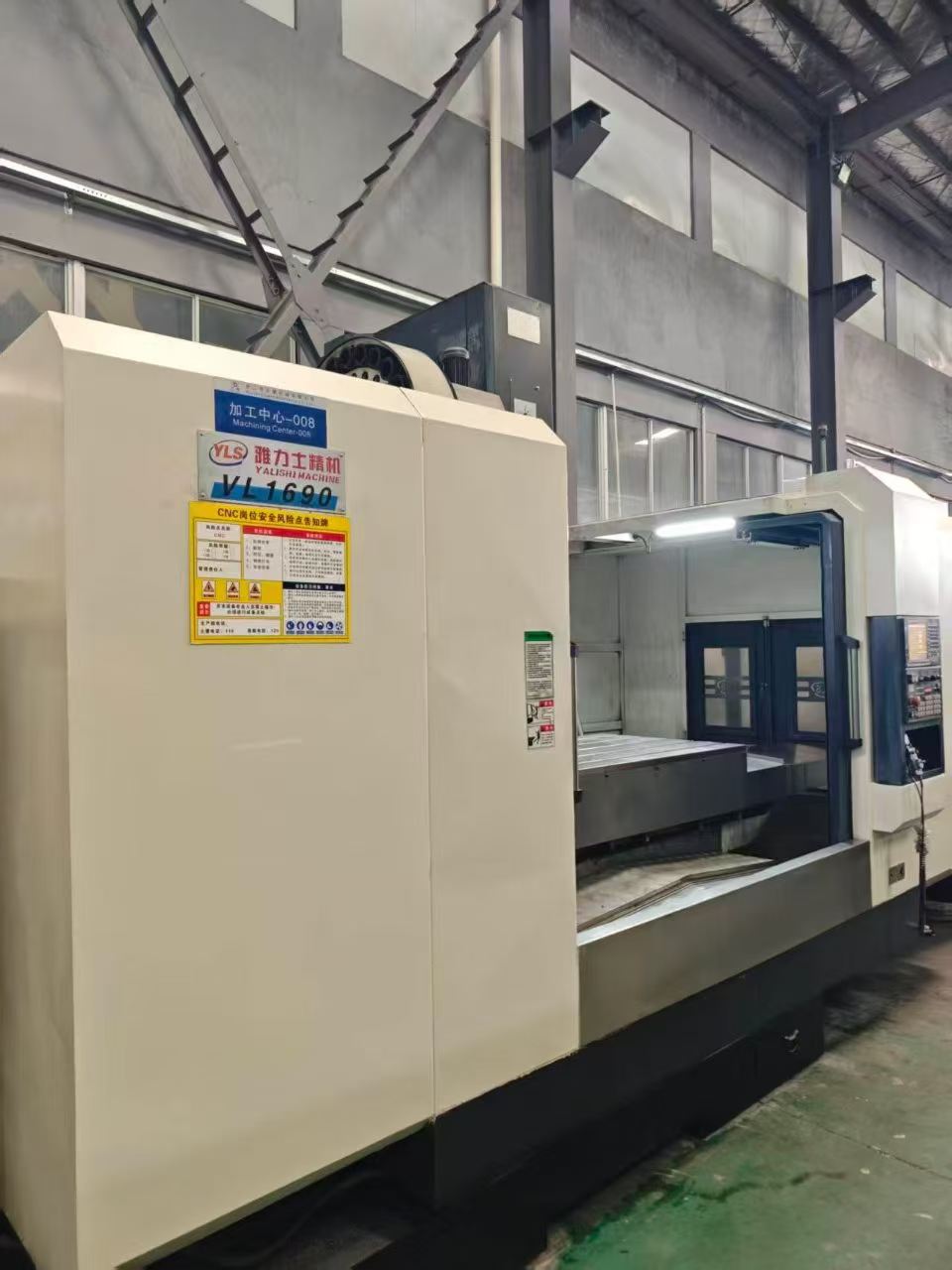

This is a used Yalis VL-1690 CNC machining center manufactured in 2021. It is equipped with a FANUC MF Plus controller, two linear guideways and one box guideway for rigidity, and a reliable Taiwan-made LuoYi BT50 spindle rated for 8000 rpm with oil cooling. The machine is fitted with a 24-station mechanical tool magazine from Taiwan Okada. The worktable measures 1800 x 900 mm, with a spindle nose to table distance of 800 mm. The X/Y/Z travels are 1601/901/680 mm respectively. The machine has been inspected and is reported to be in very good condition. It is available for inspection and export from China.
- Machine Code
- MC2608207
- Year
- 2021
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Year | 2021 |
|---|---|

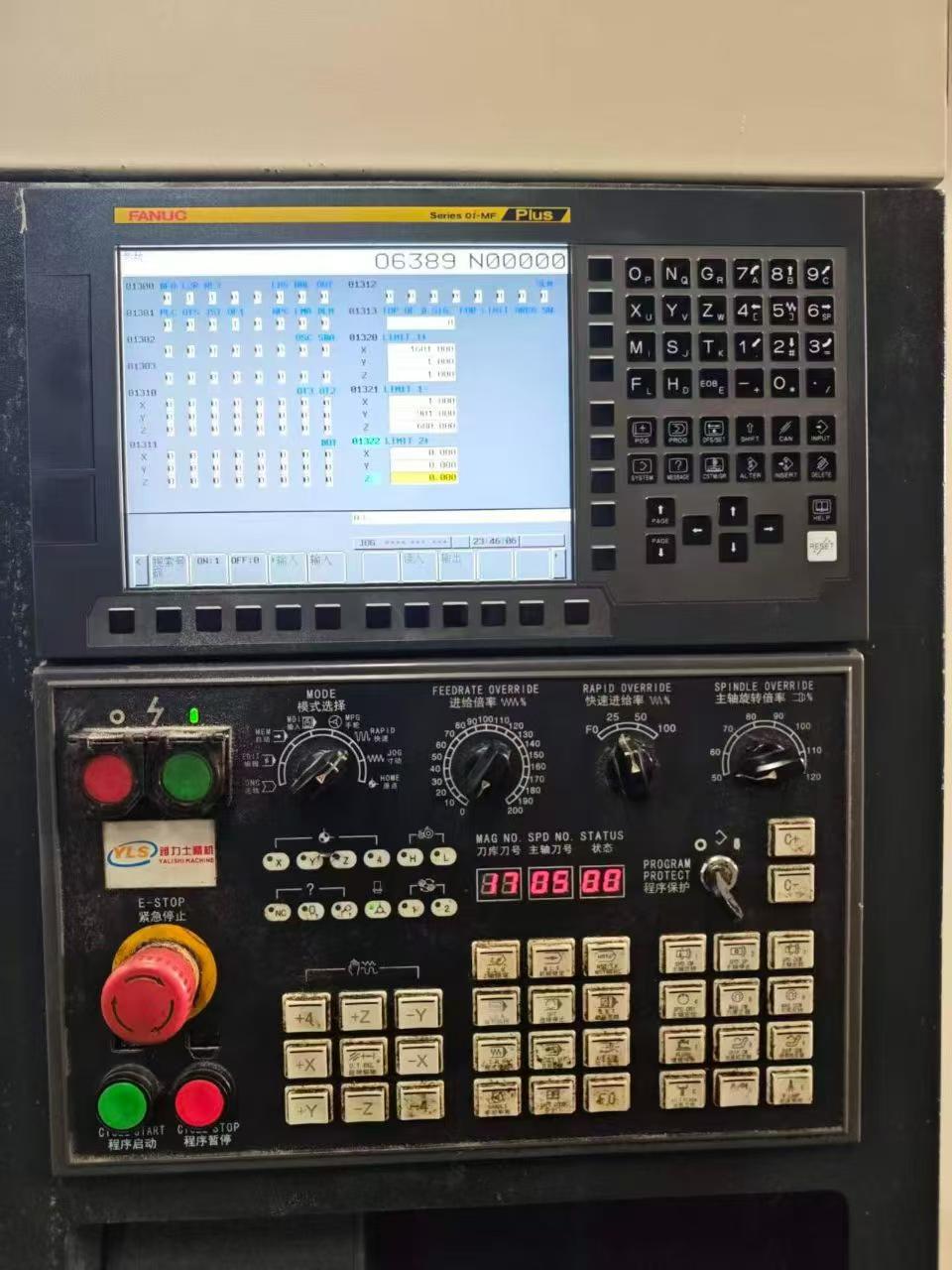

| Controller | FANUC MF Plus |
| Guideways | Two linear guideways and one box guideway |

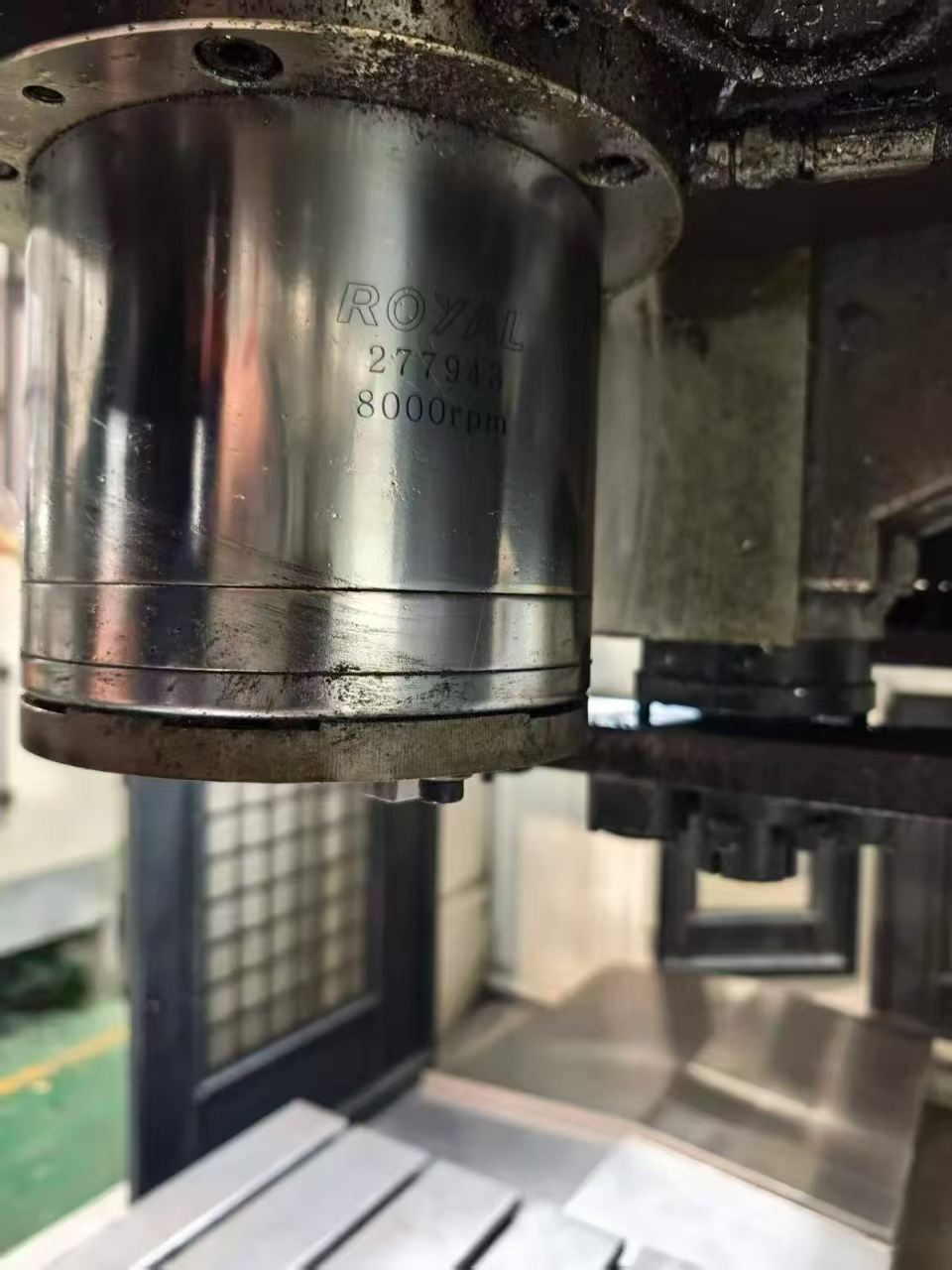

| Spindle | Taiwan LuoYi BT50, 8000 rpm, with oil cooling |

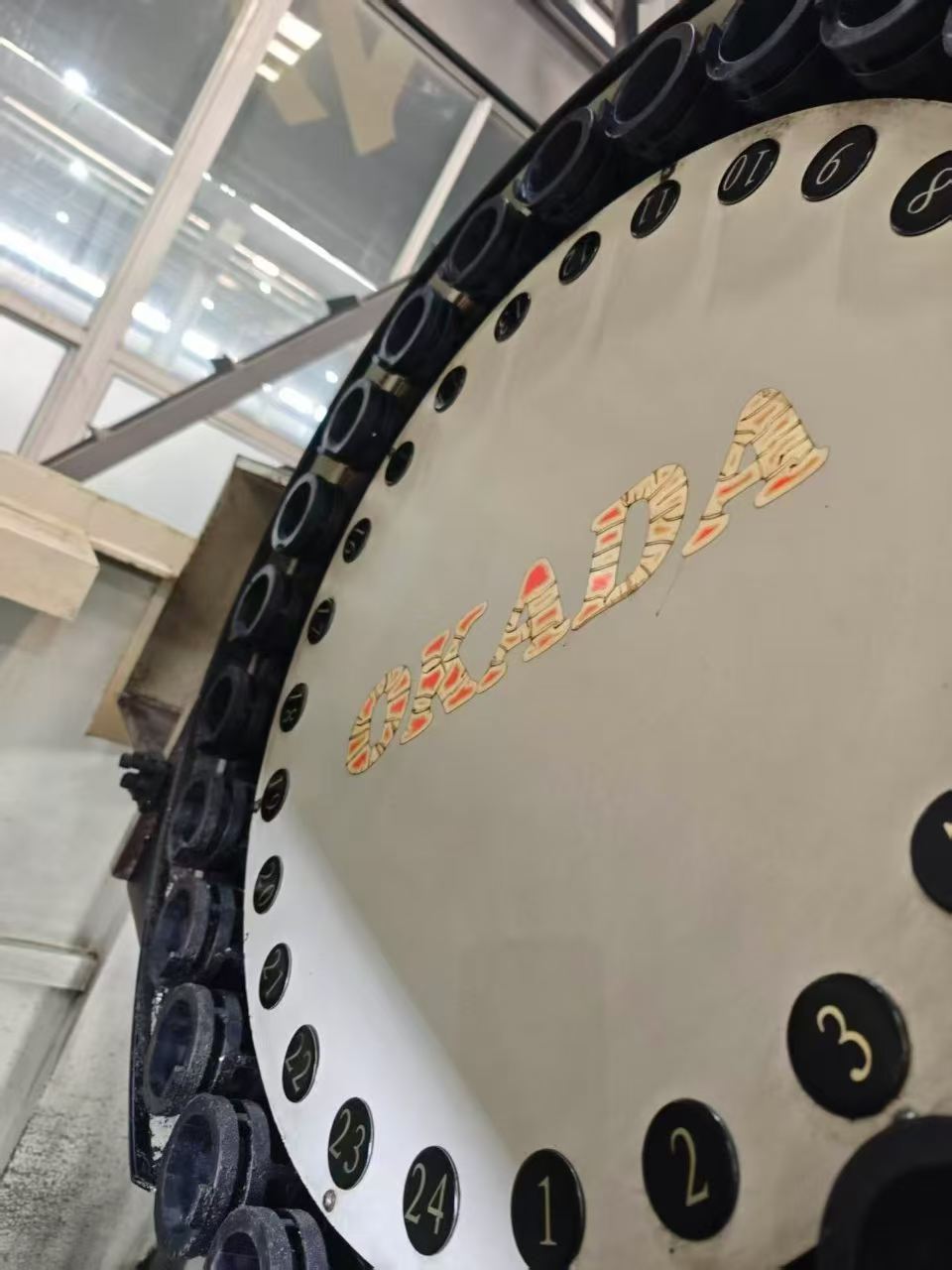

| Tool magazine | Taiwan Okada 24-tool mechanical |

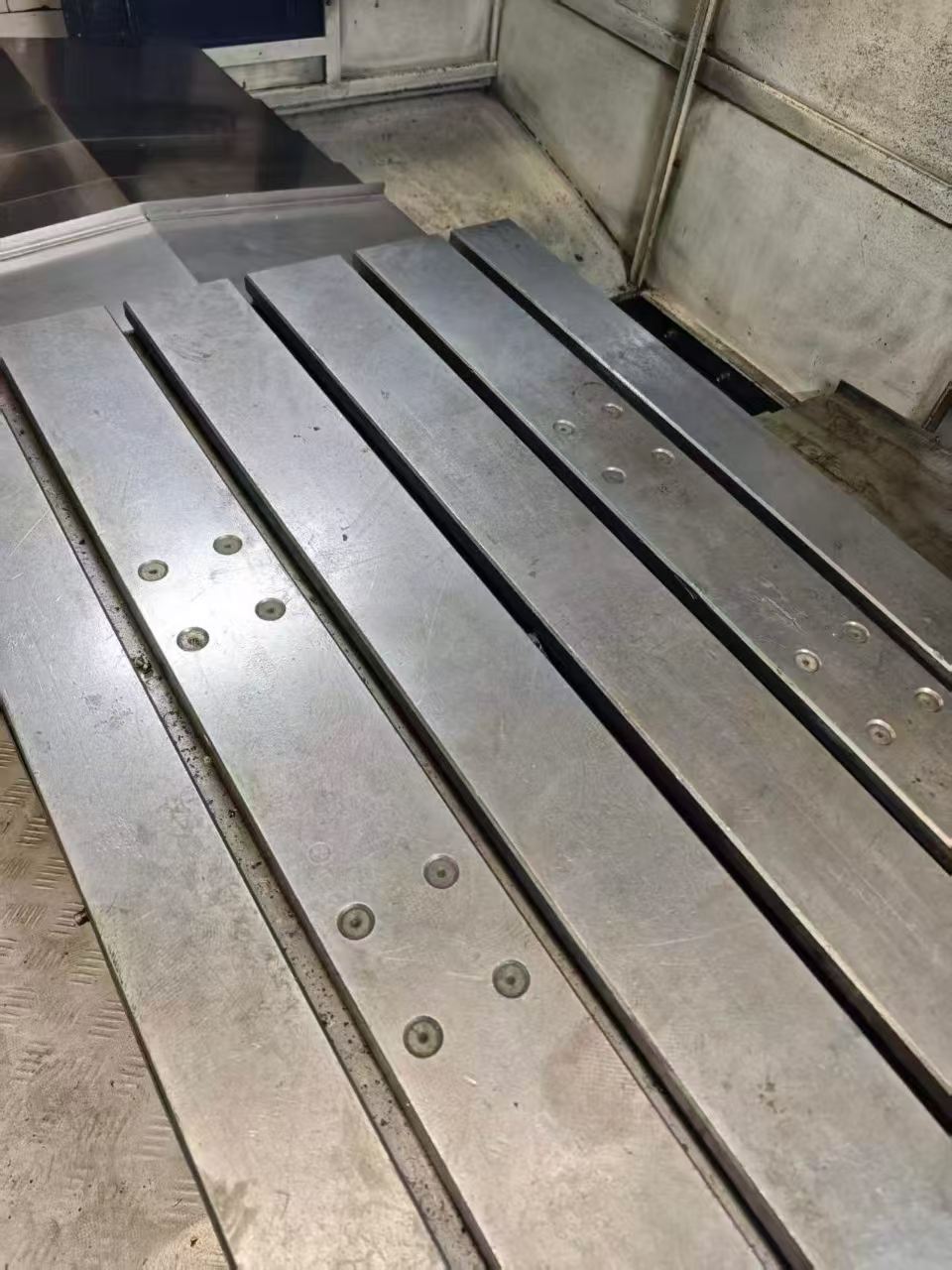

| Worktable size | 1800 x 900 mm |
| Spindle nose to table distance | 800 mm |
| X/Y/Z travel | 1601/901/680 mm |
| Machine Type | Machining Center |
| Brand/Model | Yalis VL-1690 |
| Guideway Configuration | Two linear guideways and one box guideway |
