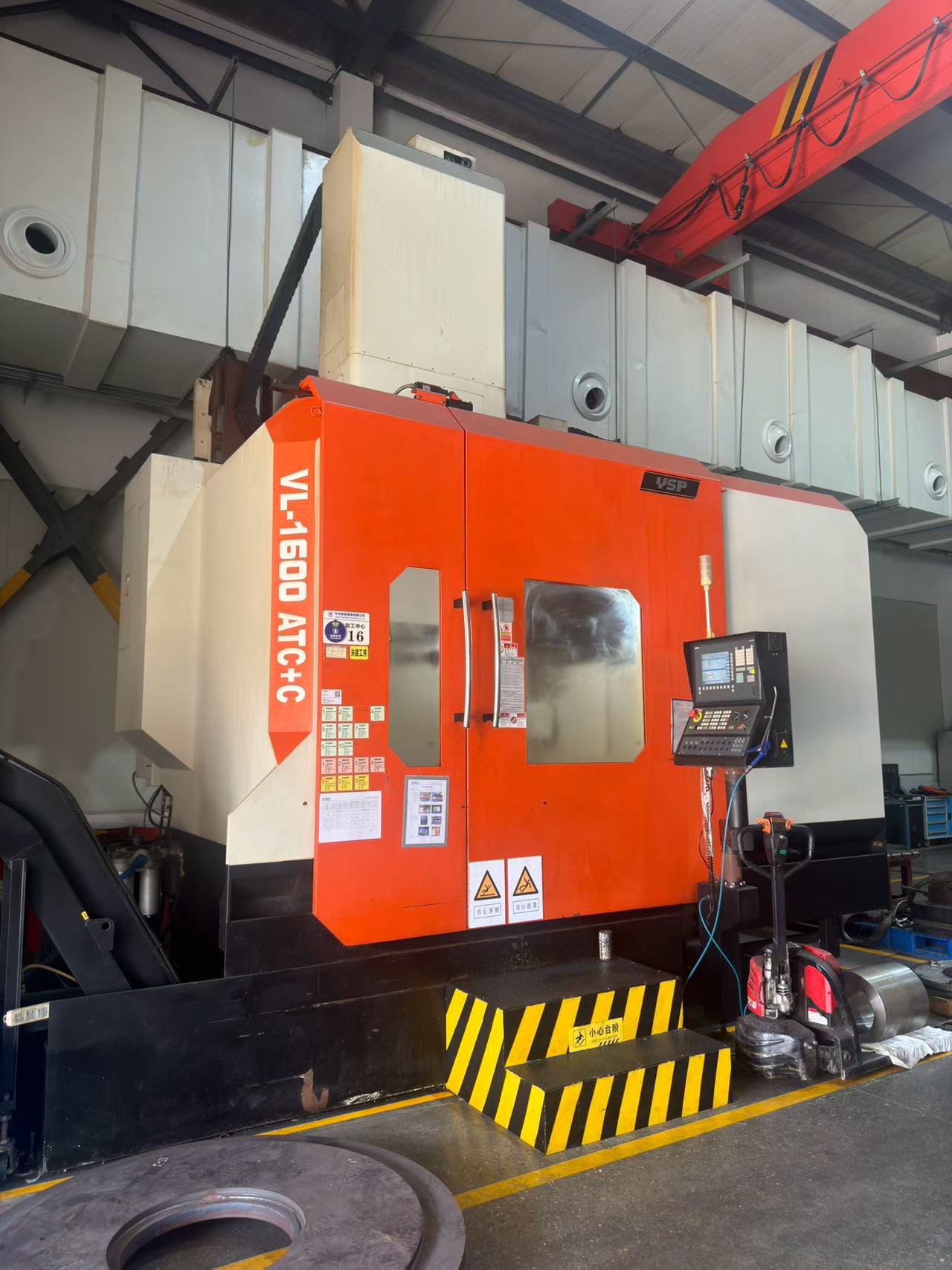

Used YouXin 1600 CNC vertical turn-mill center with Siemens 840 D control. Worktable 1.6 m, max turning diameter 1.8 m, max machining height 1.25 m. Equipped with 16-tool magazine, square ram 250 x 250 mm, X/Z travels 2000/1350 mm. Chuck max speed 256 rpm, spindle 2400 rpm, BT50 taper. Machine includes 3-axis linear scales. Available for inspection.

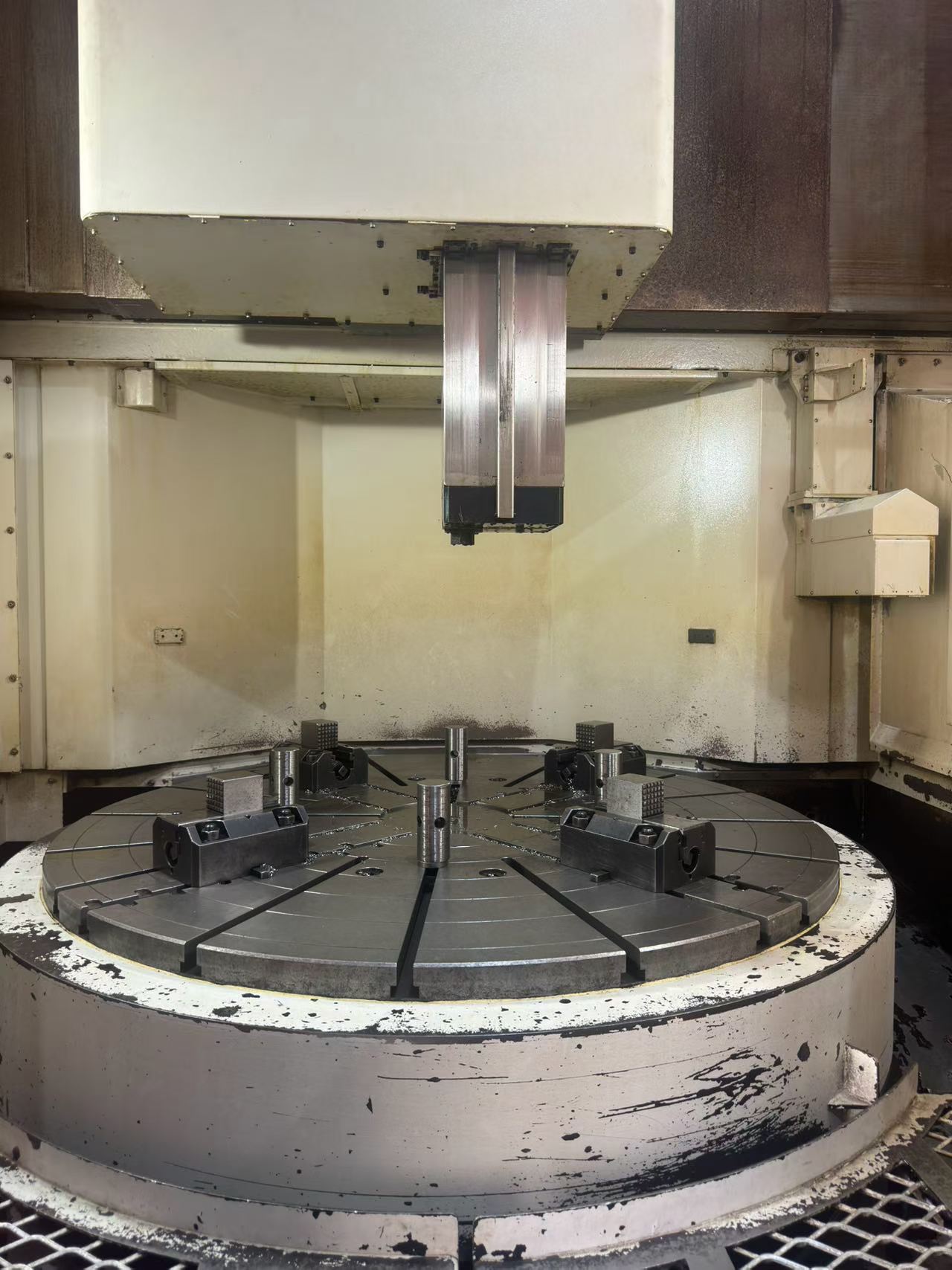

| Worktable diameter | 1.6 m |
|---|---|
| Max swing | 2 m |
| Max turning diameter | 1.8 m |
| Max machining height | 1.25 m |
| Tool magazine capacity | 16 |
| Ram cross section | 250 x 250 mm |
| X-axis travel | 2000 mm |
| Z-axis travel | 1350 mm |
| Chuck max speed | 256 rpm |
| Spindle speed | 2400 rpm |
| Spindle taper | BT50 |

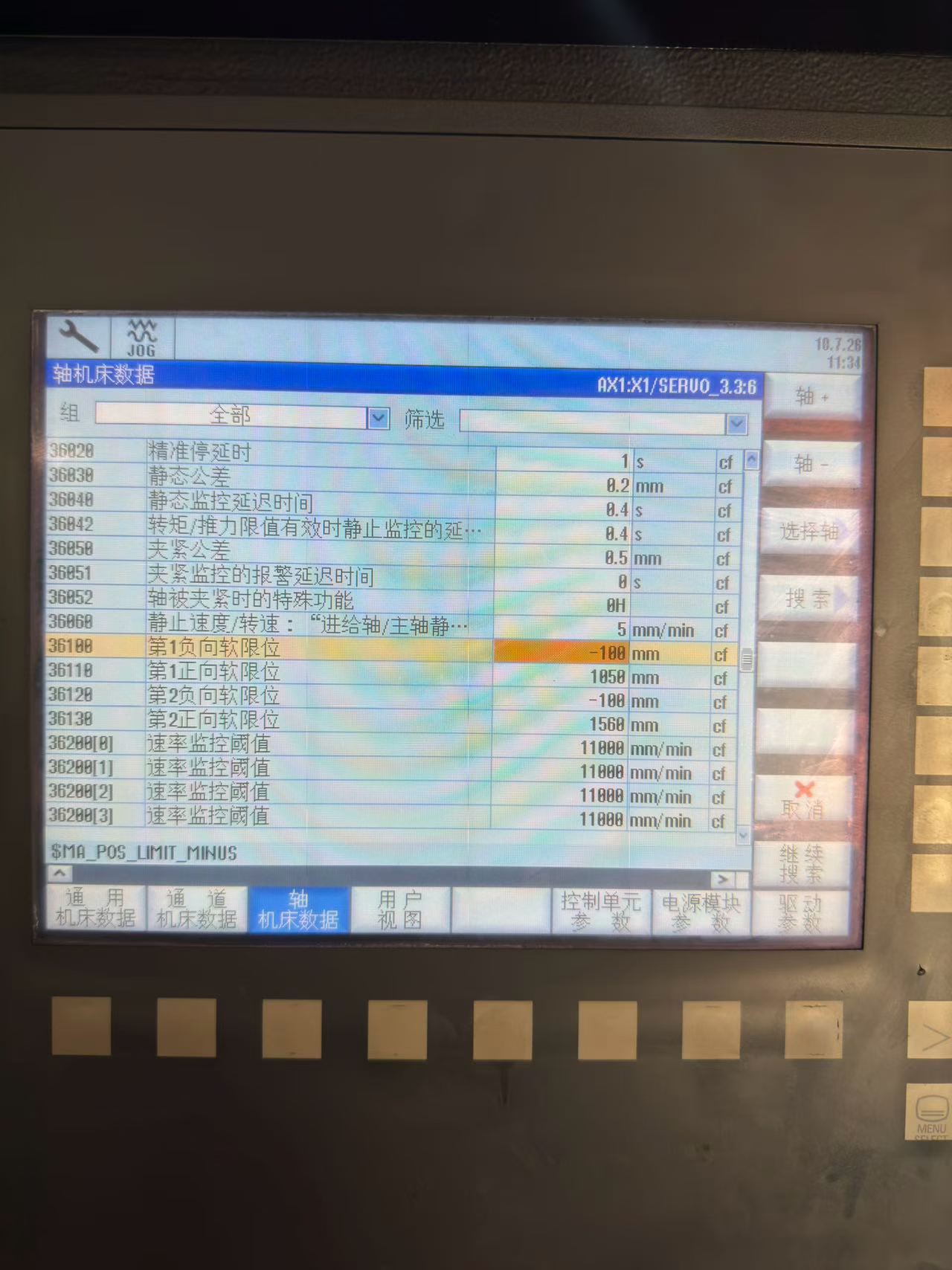

| Controller | Siemens 840 D |
