AvailableVertical Machining Center

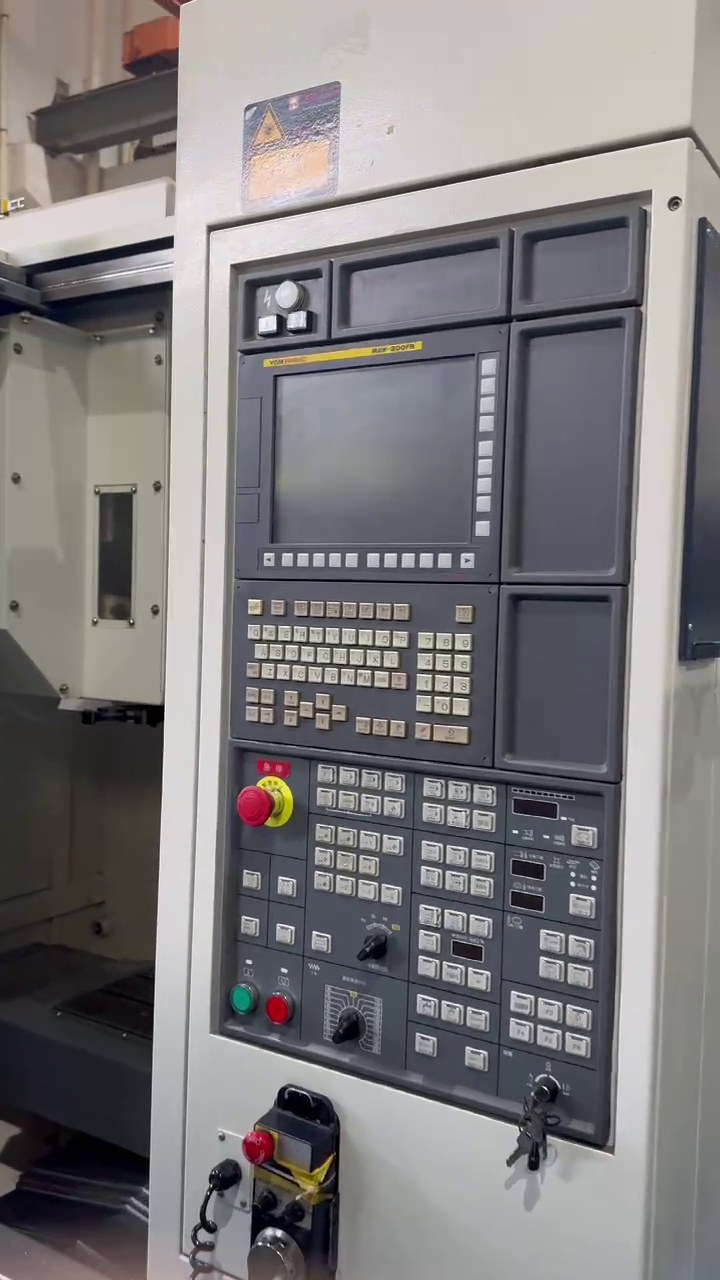

Used YCM FV 56 A Vertical Machining Center with FANUC MXP-200 FB

YCM FV 56 A vertical machining center, manufactured in Taiwan in 2018 and fitted with the FANUC MXP-200 FB high-specification mold package control system. The machine is equipped with a BBT 40 spindle running at up to 15,000 rpm, and its X/Y/Z travels measure 560 x 410 x 450 mm. All three axes travel on Japanese THK linear guideways, and a 20-tool automatic tool magazine supports continuous mold and production work. Machining accuracy is held within 0.01 mm.

Machine Code: VMC2609161
Year: 2018
Location: China
Usage Hours: On request

Accessories

20-station automatic tool magazine; Japanese THK linear guideways on all three axes

Open machine video

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	15,000 rpm
Spindle taper	BBT 40
X/Y/Z travel	560 x 410 x 450 mm
Tool magazine capacity	20 tools
Guideway type	Japanese THK linear guideways
Year of manufacture	2018
Accuracy	Within 0.01 mm
Brand	YCM
Control system	FANUC MXP-200 FB
