AvailableTurn-Mill CNC Lathe

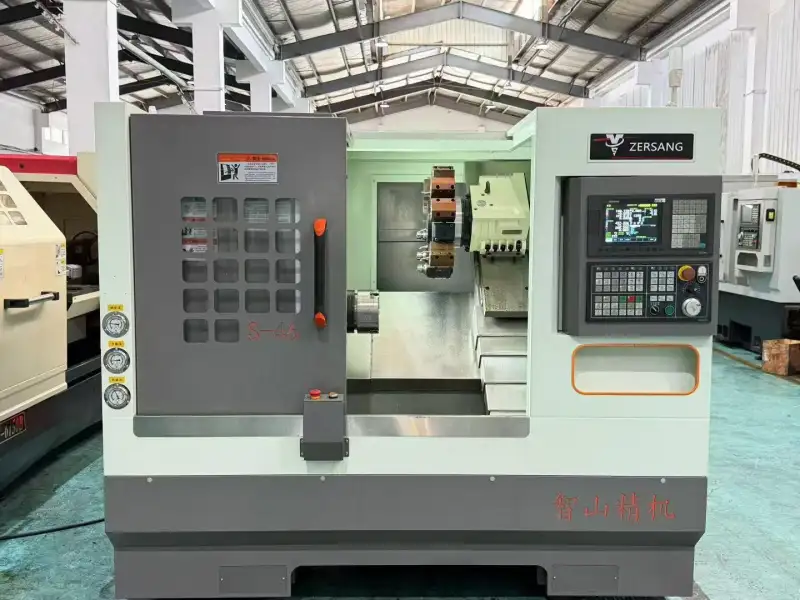

Used ZERSANG S-46 Turn-Mill CNC Lathe with 12-Station BMT 45 Live Tooling Turret

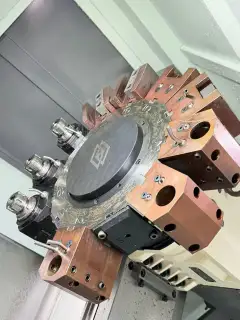

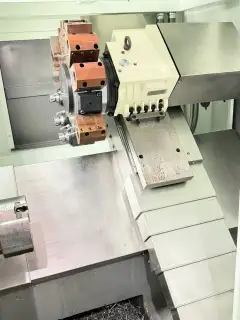

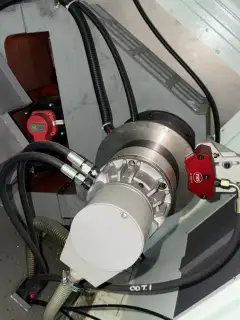

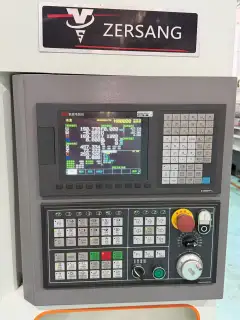

ZERSANG S-46 turn-mill CNC lathe in approximately 95% new condition, built for combined turning and milling in a single setup. The machine is equipped with the KND K 1000 TF 1i turn-mill CNC control system. Workholding is a 6-inch chuck on an A 2-5 spindle nose with a 46 mm through-bore, matched to a 12-station BMT 45 live tooling turret that carries three 90-degree live tools. The high-speed motorized spindle provides high indexing accuracy and is fitted with a hydraulic brake. Swing diameter is Ø460 mm, with 800 mm X-axis travel and 400 mm Z-axis travel. Machining accuracy is held to new-machine standard. The unit is ready for inspection and immediate delivery.

Machine Code: TML261003
Year: On request
Location: China
Usage Hours: On request

Accessories

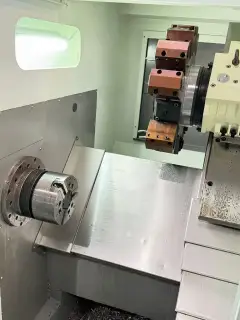

6-inch chuck with A 2-5 spindle nose and 46 mm through-bore; 12-station BMT 45 live tooling turret with three 90-degree live tools; high-speed motorized spindle with hydraulic brake

Email Inquiry

Main Specifications

Machine type	Turn-mill CNC lathe
Control system	KND K 1000 TF 1i
Chuck size	6inch
Spindle nose	A 2-5
Spindle through-bore	46 mm
Spindle type	High-speed motorized spindle with hydraulic brake
Turret type	BMT 45 live tooling turret
Turret stations	12
90-degree live tools	3
Swing diameter	Ø460 mm
X-axis travel	800 mm
Z-axis travel	400 mm
Condition	Approximately 95% new
Brand	ZERSANG
