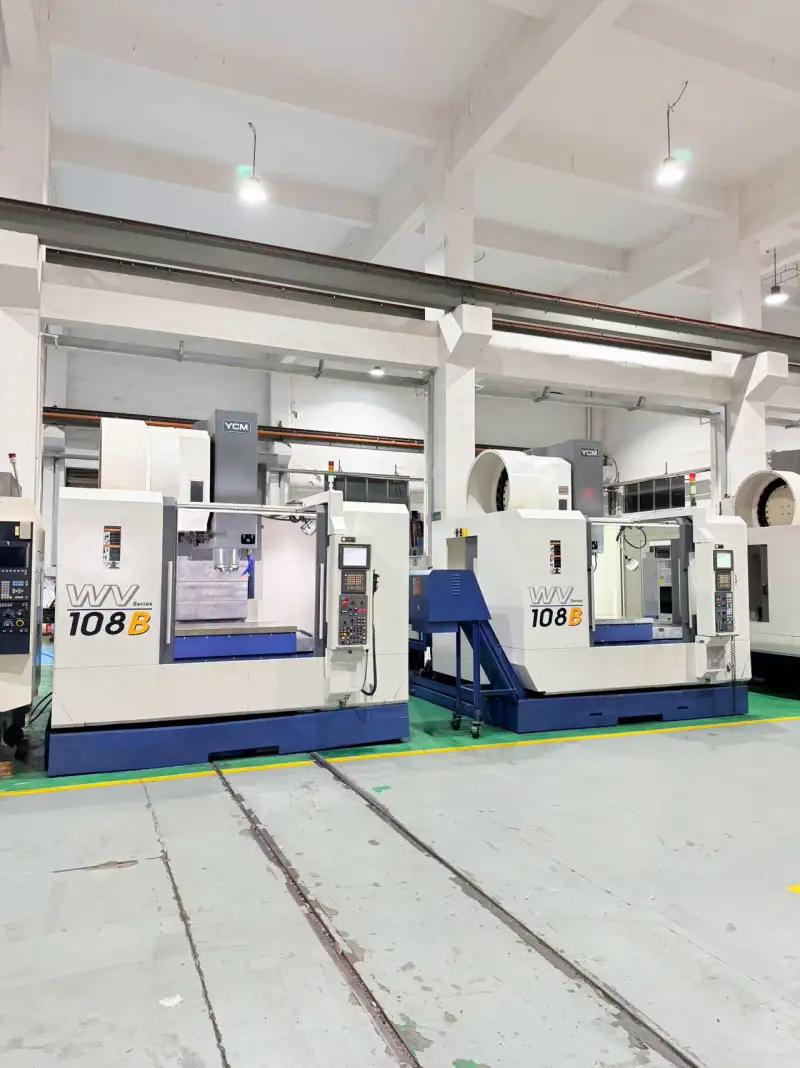

Two Used YCM WV 108 B Machining Centers with FANUC 200 i Control
Two identical YCM WV 108 B machining centers with FANUC 200 i control. X/Y/Z travel: 1120 x 762 x 700 mm. Two linear guideways and one box guideway. Worktable size: 1300 x 820 mm. One unit has a BT50 geared-head spindle at 6000 rpm; the other has a BT50 direct-drive spindle at 10000 rpm with high/low gear range. Spindle power: 22 kW. 24-station arm-type tool magazine. Equipped with oil cooler and linear scales on all three axes. Year of manufacture: 2015.
- Código da Máquina
- MC260842
- Ano
- 2015
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Oil cooler, linear scales on all three axes.
Principais Especificações
| X/Y/Z travel | 1120 x 762 x 700 mm |
|---|---|
| Guideway type | Two linear guideways + one box guideway |
| Worktable size | 1300 x 820 mm |
| Machine 1 spindle | BT50 geared head, 6000 rpm |
| Machine 2 spindle | BT50 direct drive, 10000 rpm with high/low gear |
| Spindle power | 22 kW |
| Tool magazine | 24-station arm-type |
| Year of manufacture | 2015 |
