AvailableMachining Center

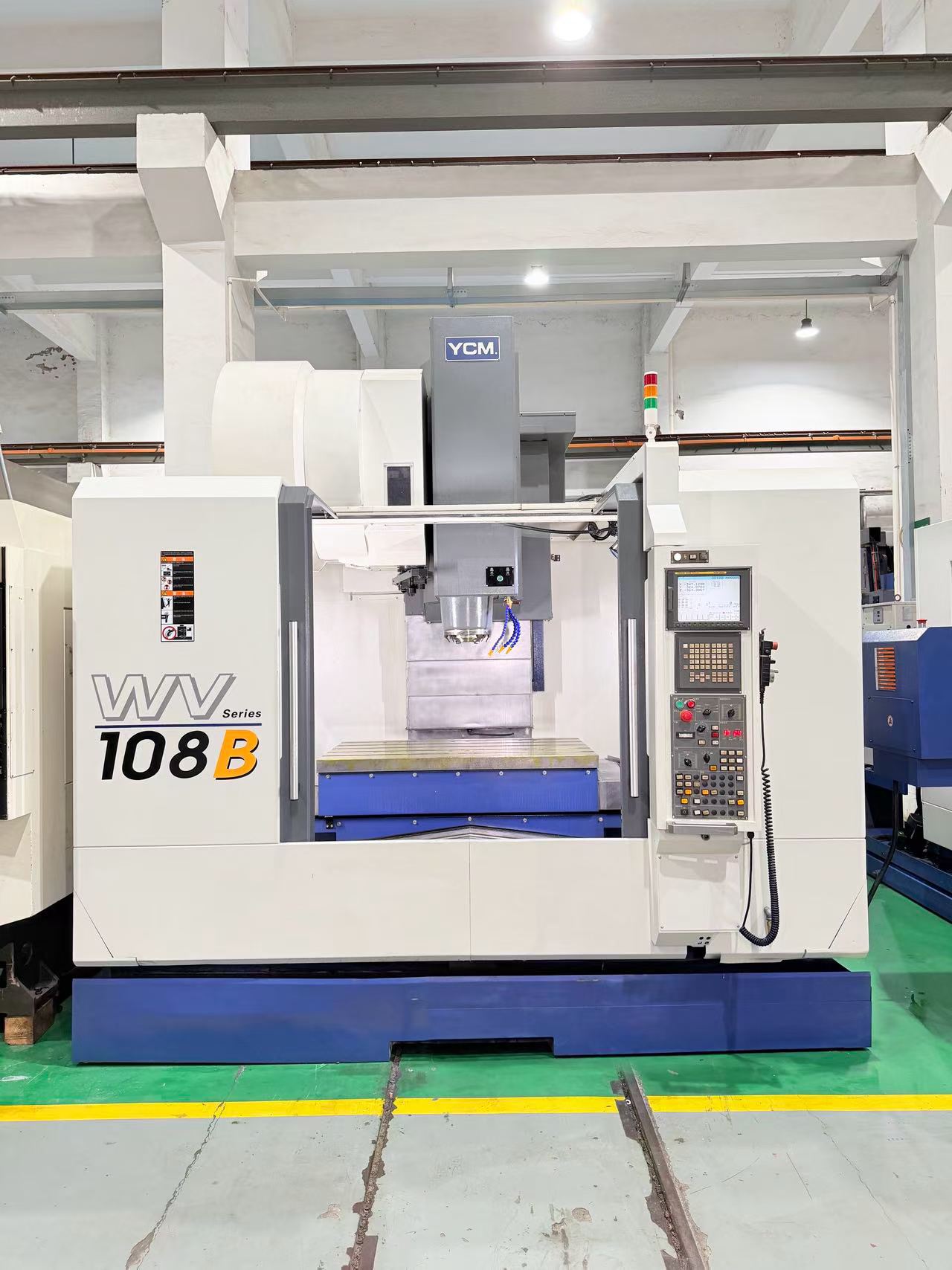

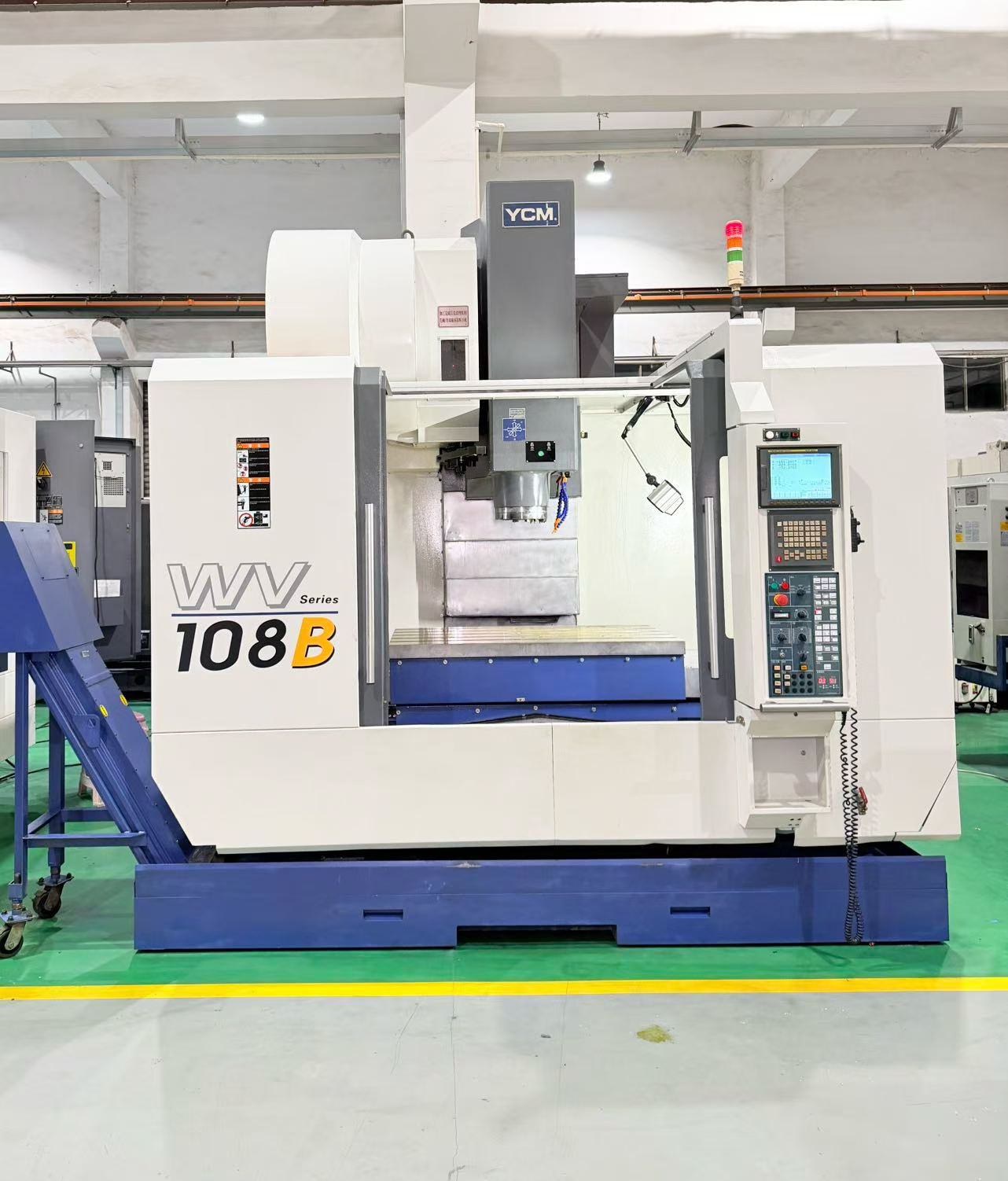

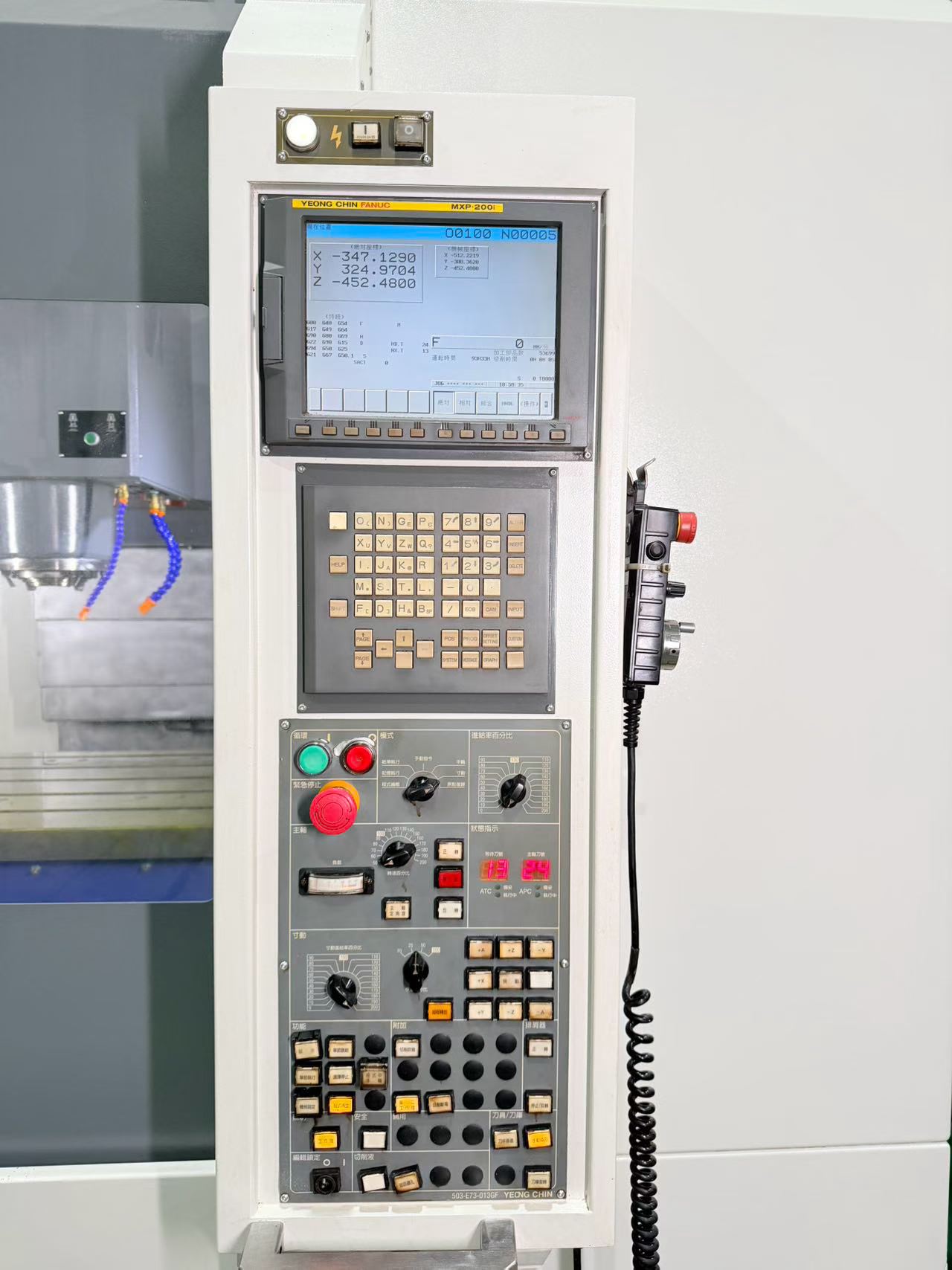

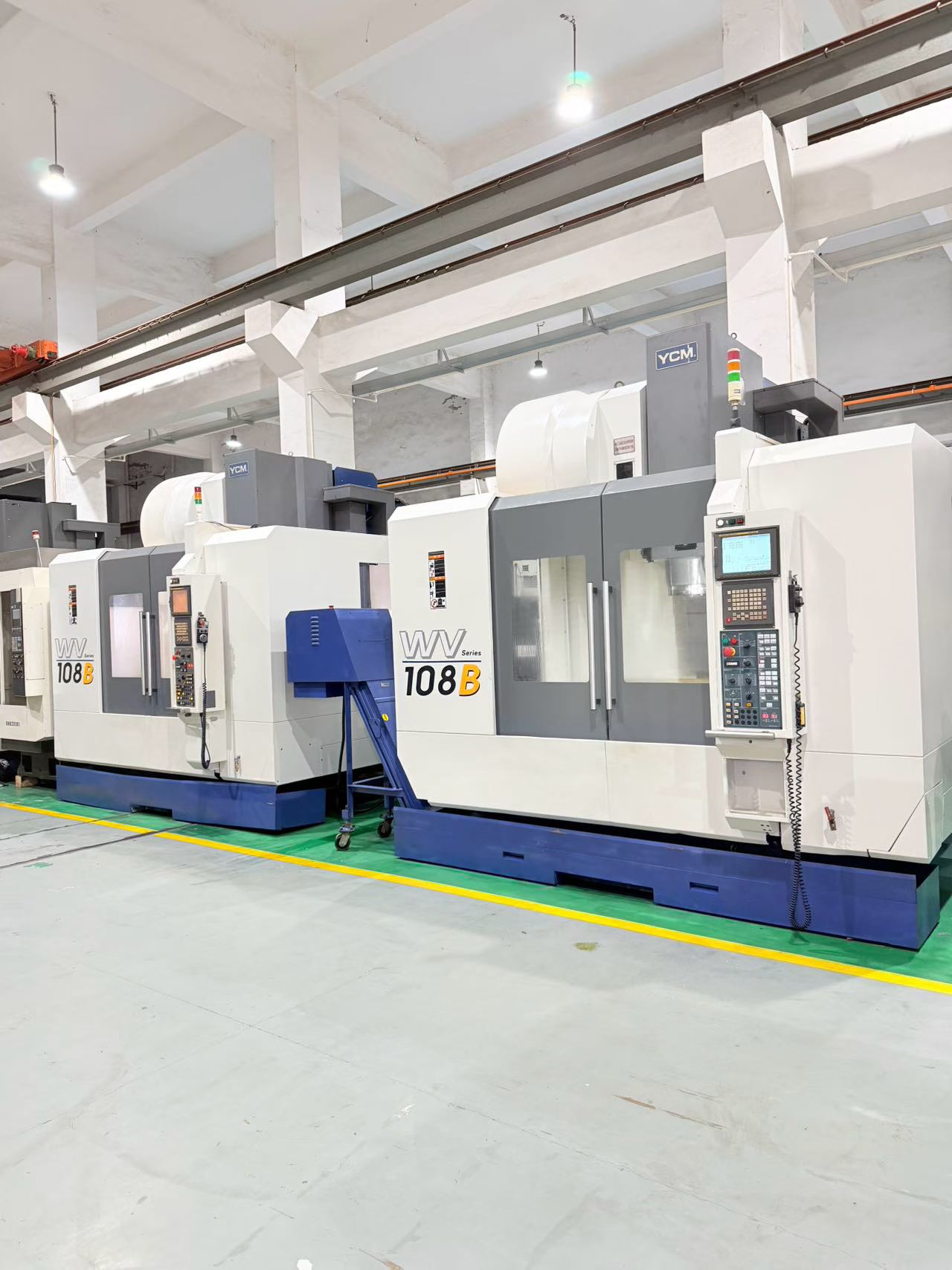

Two Used YCM WV 108 B Machining Centers with FANUC 200 i Control

Two identical YCM WV 108 B machining centers with FANUC 200 i control. X/Y/Z travel: 1120 x 762 x 700 mm. Two linear guideways and one box guideway. Worktable size: 1300 x 820 mm. One unit has a BT50 geared-head spindle at 6000 rpm; the other has a BT50 direct-drive spindle at 10000 rpm with high/low gear range. Spindle power: 22 kW. 24-station arm-type tool magazine. Equipped with oil cooler and linear scales on all three axes. Year of manufacture: 2015.

Machine Code: MC260842
Year: 2015
Location: China
Usage Hours: On request

Accessories

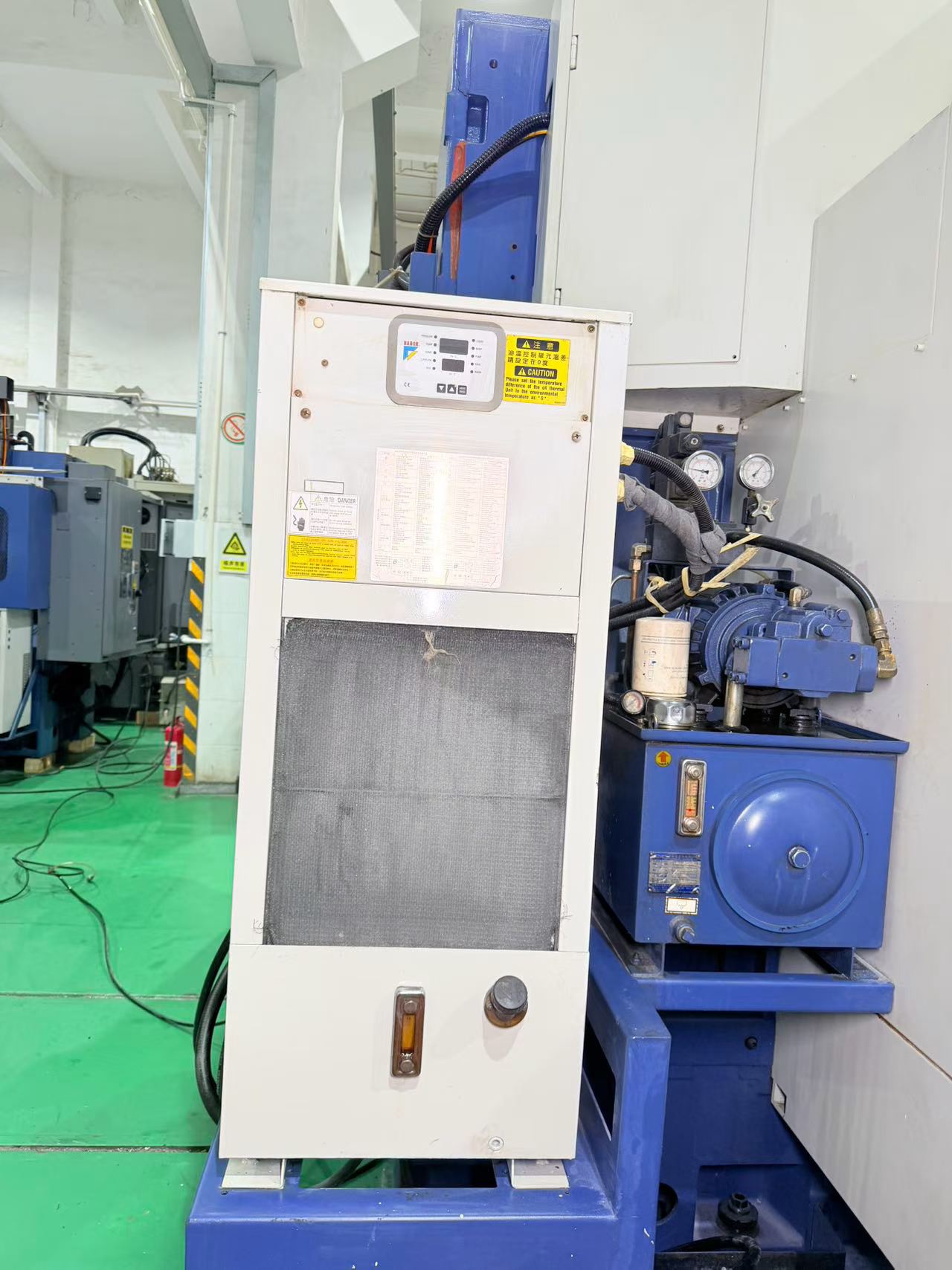

Oil cooler, linear scales on all three axes.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

X/Y/Z travel	1120 x 762 x 700 mm
Guideway type	Two linear guideways + one box guideway
Worktable size	1300 x 820 mm
Machine 1 spindle	BT50 geared head, 6000 rpm
Machine 2 spindle	BT50 direct drive, 10000 rpm with high/low gear
Spindle power	22 kW
Tool magazine	24-station arm-type
Year of manufacture	2015
