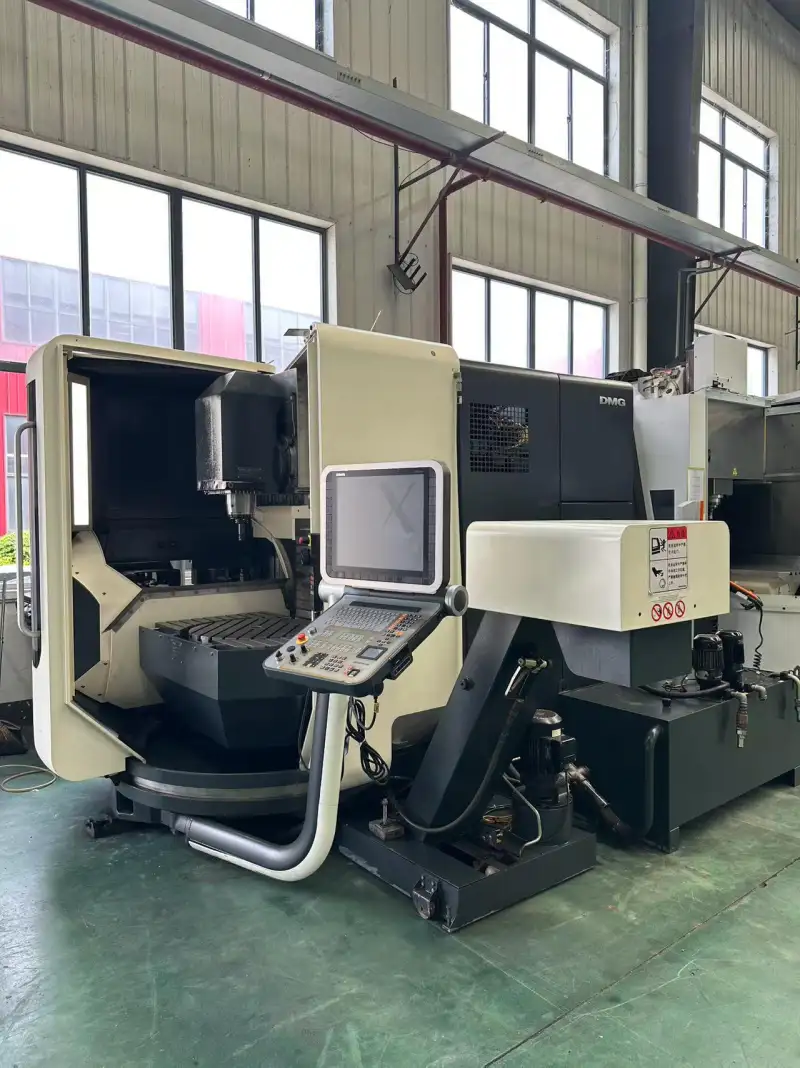

Used DMG MORI 60 monoBLOCK 5-Axis Machining Center with HEIDENHAIN iTNC 530
DMG MORI 60 monoBLOCK 5-axis simultaneous machining center. Equipped with HEIDENHAIN iTNC 530 control. B-axis swivel range (optional): -30° to +150°; C-axis rotation: 360° continuous. With Heidenhain full closed-loop linear scales on all five axes. Manufactured in 2010.
- Código da Máquina
- MC260891
- Ano
- 2010
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Heidenhain full closed-loop linear scales on all five axes
Principais Especificações
| X/Y/Z travel | 730 x 560 x 560 mm |
|---|---|
| Spindle speed | 18,000 rpm |
| Spindle power | 15/10 kW |
| Spindle taper | SK 40 |
| Tool magazine capacity | 24 tools |
| Rotary worktable diameter | 600 mm |
| Maximum workpiece height | 550 mm |
| B-axis swivel range | (optional) -30° to +150° |
| C-axis rotation range | 360° continuous |
| Maximum table load | 500 kg |
| Year of manufacture | 2010 |
