Back to machines
AvailableMachining Center

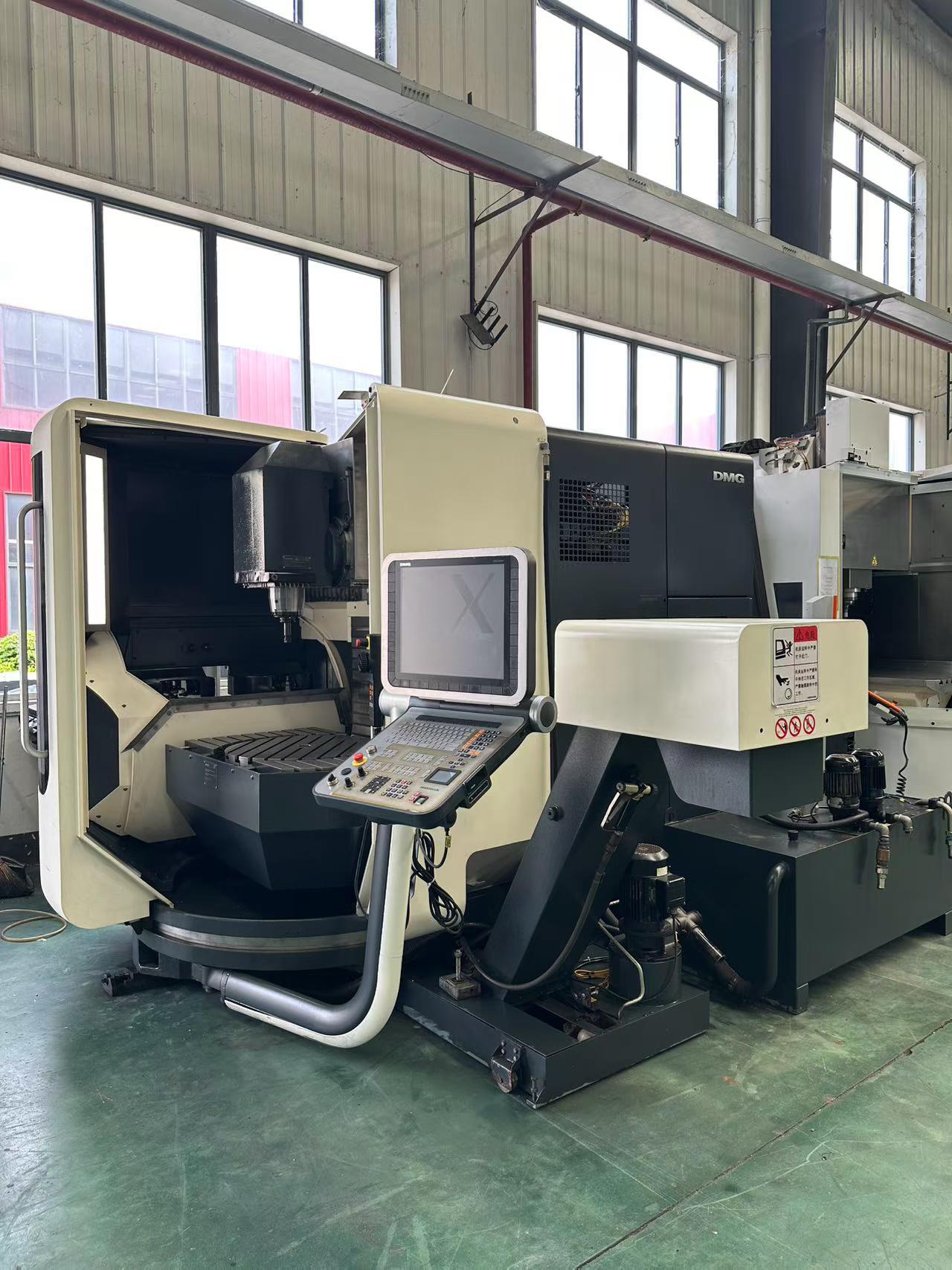

Used DMG MORI 60 monoBLOCK 5-Axis Machining Center with HEIDENHAIN iTNC 530

DMG MORI 60 monoBLOCK 5-axis simultaneous machining center. Equipped with HEIDENHAIN iTNC 530 control. B-axis swivel range (optional): -30° to +150°; C-axis rotation: 360° continuous. With Heidenhain full closed-loop linear scales on all five axes. Manufactured in 2010.

Machine Code
MC260891
Year
2010
Location
China
Usage Hours
On request

Accessories

Heidenhain full closed-loop linear scales on all five axes

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

X/Y/Z travel730 x 560 x 560 mm
Spindle speed18,000 rpm
Spindle power15/10 kW
Spindle taperSK 40
Tool magazine capacity24 tools
Rotary worktable diameter600 mm
Maximum workpiece height550 mm
B-axis swivel range(optional) -30° to +150°
C-axis rotation range360° continuous
Maximum table load500 kg
Year of manufacture2010
