DisponívelMachining Center

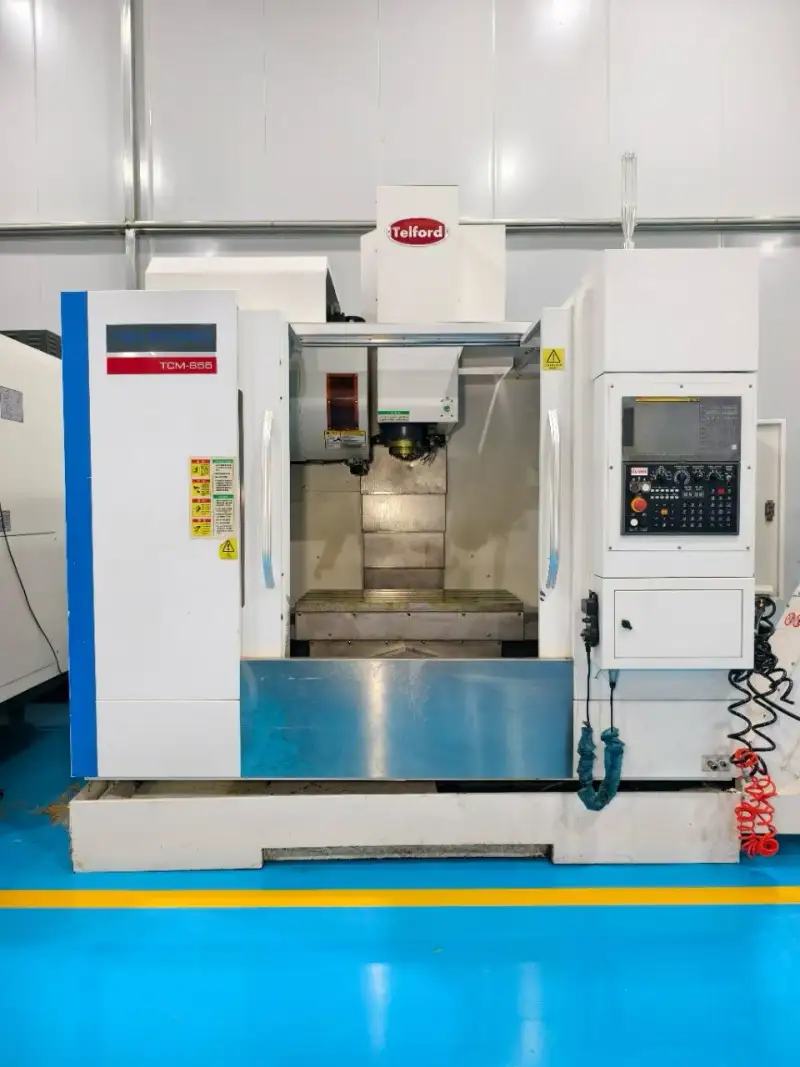

Used Taidfu TCM-855 Machining Center

In stock, offering used Taidfu TCM-855 machining center. Equipped with FANUC 0i-MF Plus control system, BT40 direct-drive spindle (12000 rpm, short-nose), 24-tool arm-type tool magazine, and 45 mm roller linear guideways on all three axes. Working range: X/Y/Z 800 x 550 x 550 mm, rapid traverse 36 m/min, worktable 1000 x 500 mm, spindle nose to table surface 660 mm. Precision inspection results: spindle runout 0.01 mm, vertical parallelism 0.015 mm, horizontal parallelism 0.008 mm, 3-axis repeatability 0.003 mm. Comes with chip conveyor. Year of manufacture: 2024.

Código da Máquina: MC260805
Ano: 2024
Localização: China
Horas de Uso: Sob consulta

Acessórios

Chip conveyor

Consulta por E-mail

Principais Especificações

Spindle speed	12000 rpm
Spindle taper	BT40
Spindle motor power	7.5 kW
Spindle nose	Short-nose, direct-drive
Tool magazine capacity	24 tools
Guideway	45 mm roller linear guideways on all axes
X/Y/Z travel	800 x 550 x 550 mm
Rapid traverse	36 m/min
Worktable size	1000 x 500 mm
Spindle nose to table	660 mm
Spindle runout	0.01 mm
Spindle vertical parallelism	0.015 mm
Spindle horizontal parallelism	0.008 mm
Three-axis repeatability	0.003 mm
Year of manufacture	2024
