AvailableTurn-Mill CNC Lathe

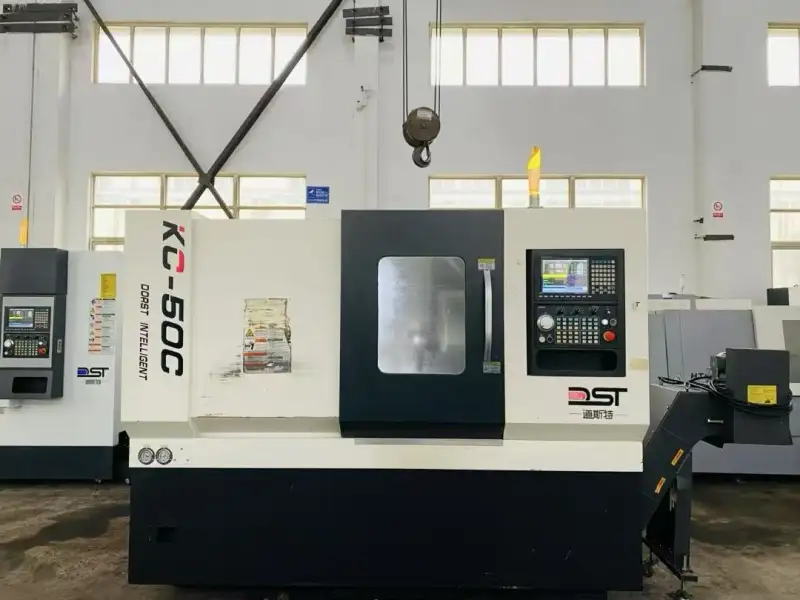

Used DORST KC-50 C Turn-Mill CNC Lathe with SYNTEC 22 TA Control

DORST KC-50 C turn-mill CNC lathe in used condition, approximately 90% new. The machine is built around a large-diameter 12-station servo live tooling turret and is equipped with a SYNTEC 22 TA absolute multi-axis bus CNC system. Three BMT 55/ER 32 live tool holders are supplied — two at 0° and one at 90° — supporting driven drilling and milling work off the turret. Workholding is an 8-inch hollow hydraulic chuck, and the 11 kW A 2-6 high-speed spindle unit runs together with a hydraulically braked C axis. Both axes ride on HIWIN precision roller linear guideways, and the machine is completed by an MT 5 hydraulic tailstock and a chain-type chip conveyor. Suited to parts that do not require a Y axis, where its relatively high machining rigidity is an advantage.

Machine Code: TML261007
Year: On request
Location: China
Usage Hours: On request

Accessories

Chain-type chip conveyor; three BMT 55/ER 32 live tool holders (two at 0°, one at 90°)

Email Inquiry

Main Specifications

Machine type	Turn-mill CNC lathe

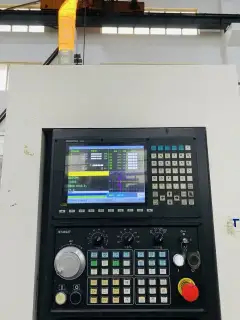

Control system	SYNTEC 22 TA absolute multi-axis bus
Tool turret	12-station servo live tooling turret

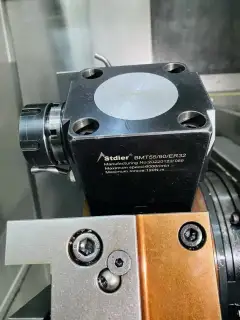

Live tool holder interface	BMT 55 / ER 32
Live tool holders supplied	3 (two at 0°, one at 90°)
Chuck	8-inch hollow hydraulic chuck
Spindle motor power	11 kW
Spindle nose	A 2-6
C axis	Hydraulic brake
Guideways	HIWIN precision roller linear guideways, both axes
Tailstock	MT 5 hydraulic tailstock
Chip conveyor	Chain-type
Live Tool Holder Orientation	2 at 0°
Controller	SYNTEC 22 TB absolute multi-axis bus control system

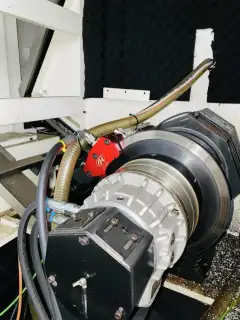

Spindle	11 kW A 2-6 high-speed spindle unit
Guideway Configuration	HIWIN precision roller linear guideways on both axes
Brand	Jiangsu Daosite
Model	KC-50 C(52)
Condition	Used, 9/10 new (1 unit just arrived)
