Used KAFO B-2616 CNC Double-Column Gantry Milling Machine with FANUC 18 i-MB

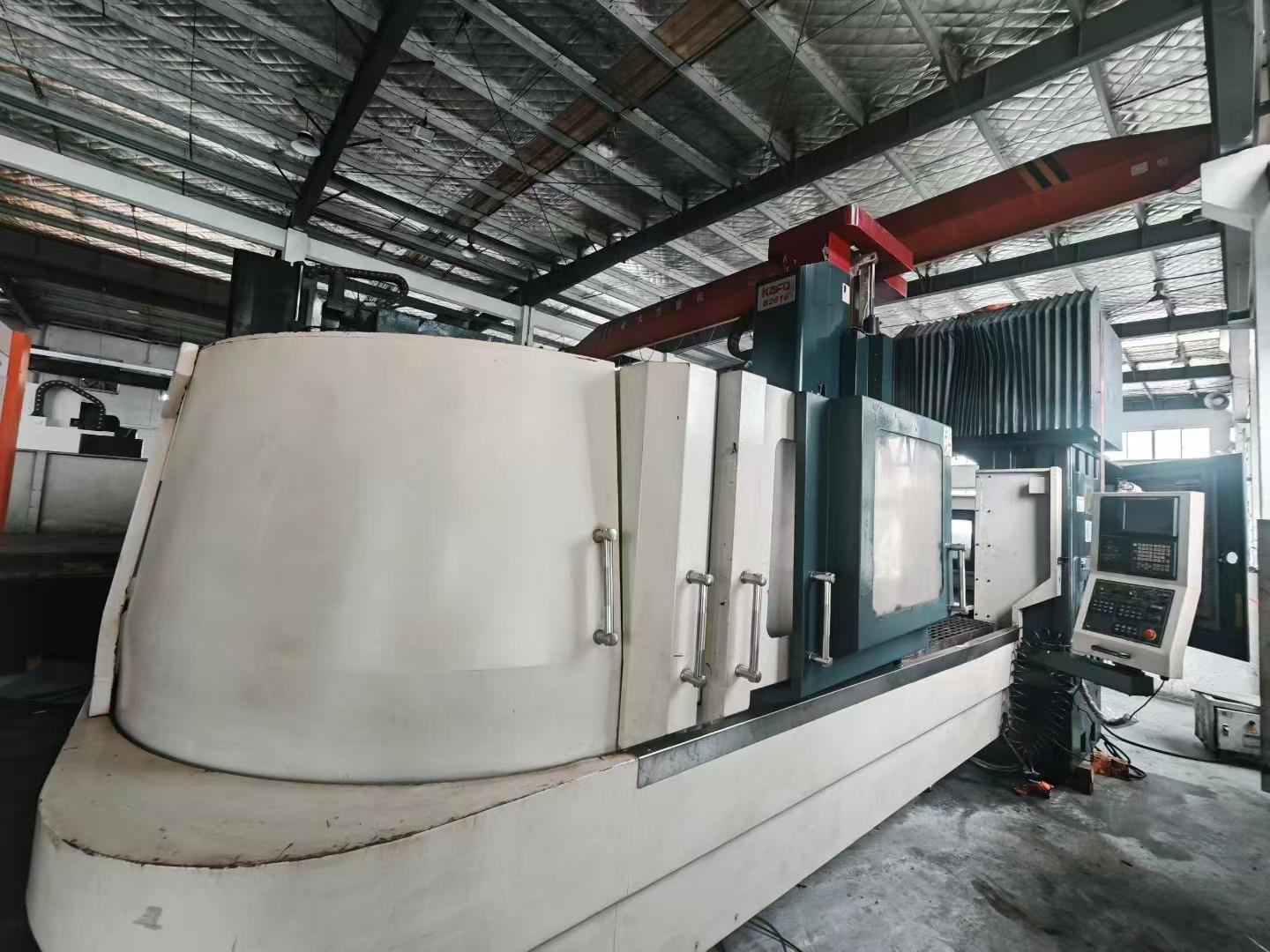

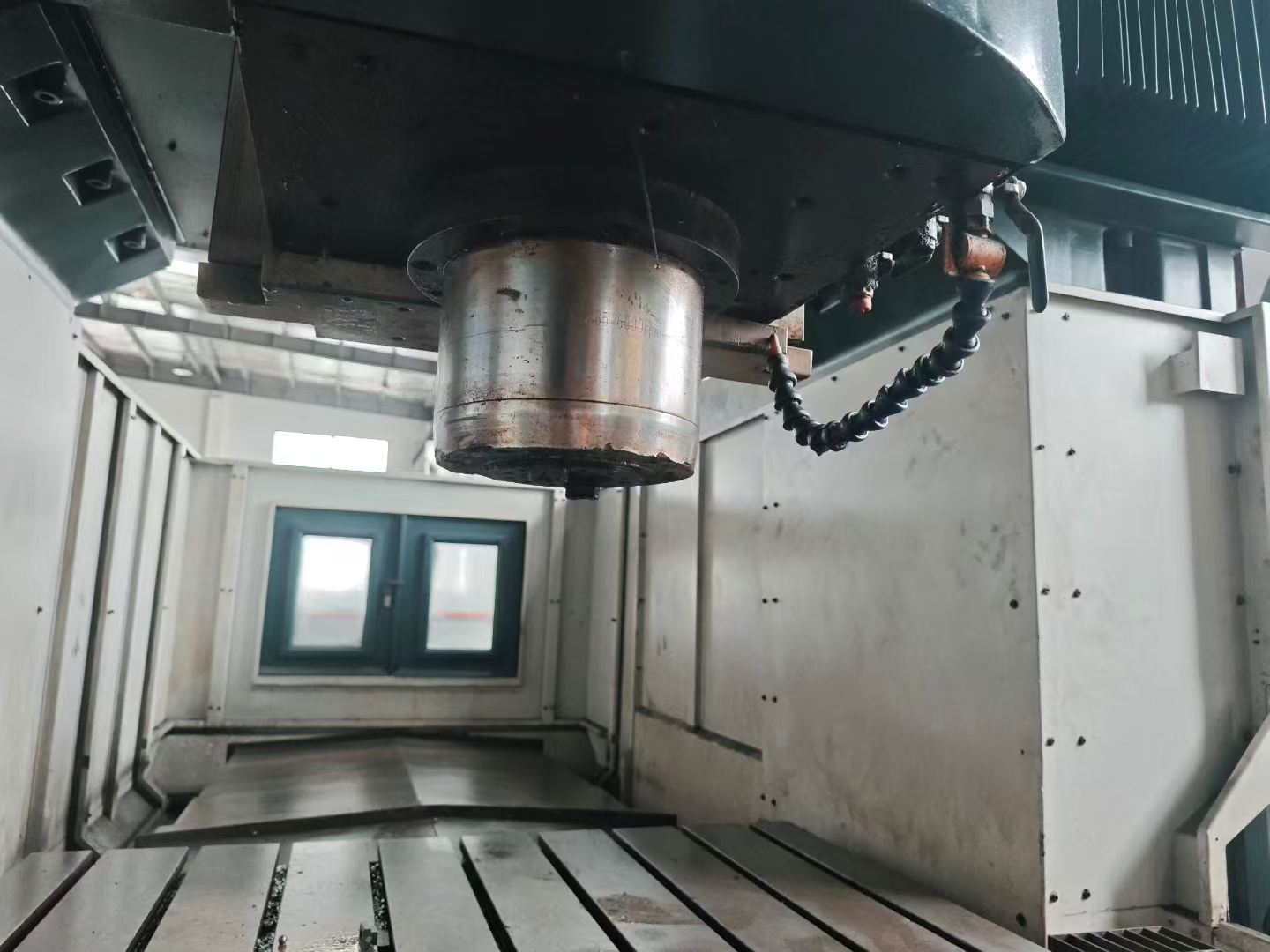

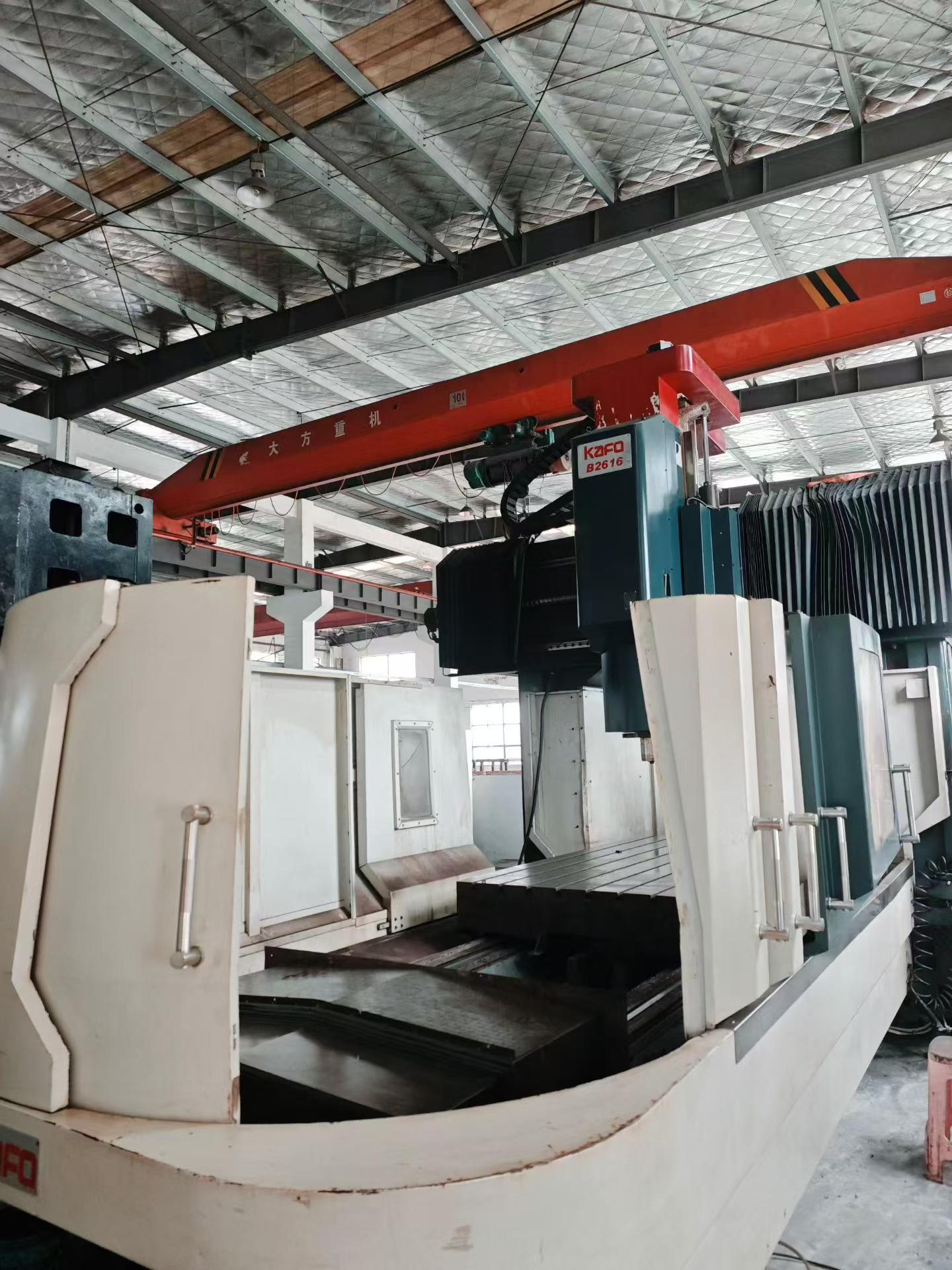

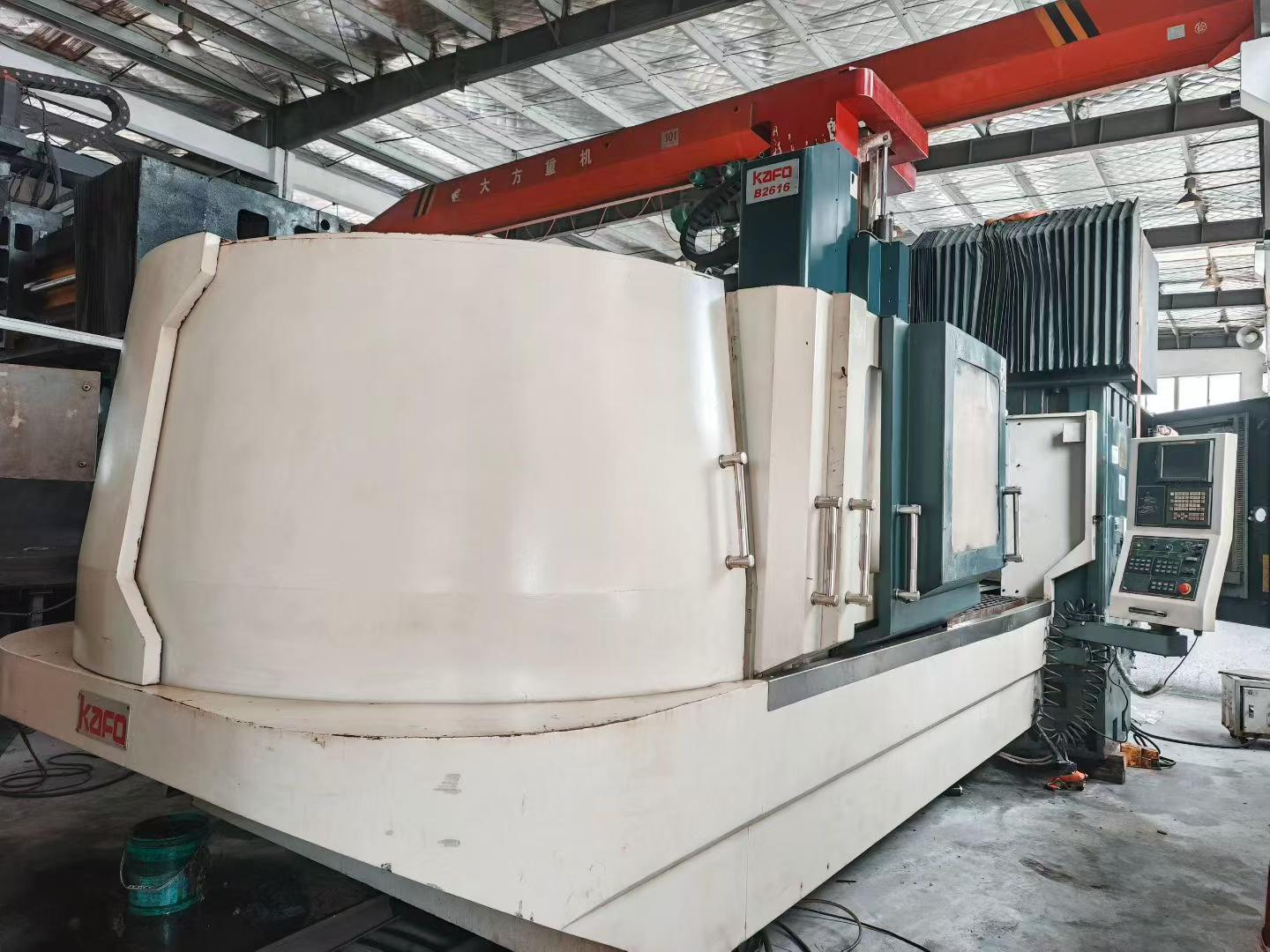

KAFO B-2616 CNC double-column gantry milling machine, a Taiwan-built machine configured for mold making. It is equipped with a FANUC Series 18 i-MB CNC control system and separate drive units. The BT50 gear-head spindle runs up to 6000 rpm and is fitted with spindle oil cooling. The guideway layout is two linear guideways and one box guideway. The worktable measures 1500 x 2500 mm, with a door width of 1740 mm and a door height of 1240 mm; the spindle nose to table distance is 1050 mm. Chip evacuation is handled by a built-in dual-spiral chip conveyor with chain-type chip removal, and a hydraulic power unit is included. The machine has just arrived and is in very good condition.

Machine Code: MC260994
Year: On request
Location: China
Usage Hours: On request

Accessories

Spindle oil cooling system; hydraulic power unit; built-in dual-spiral chip conveyor with chain-type chip removal.

Email Inquiry

Main Specifications

Machine type	CNC double-column gantry milling machine

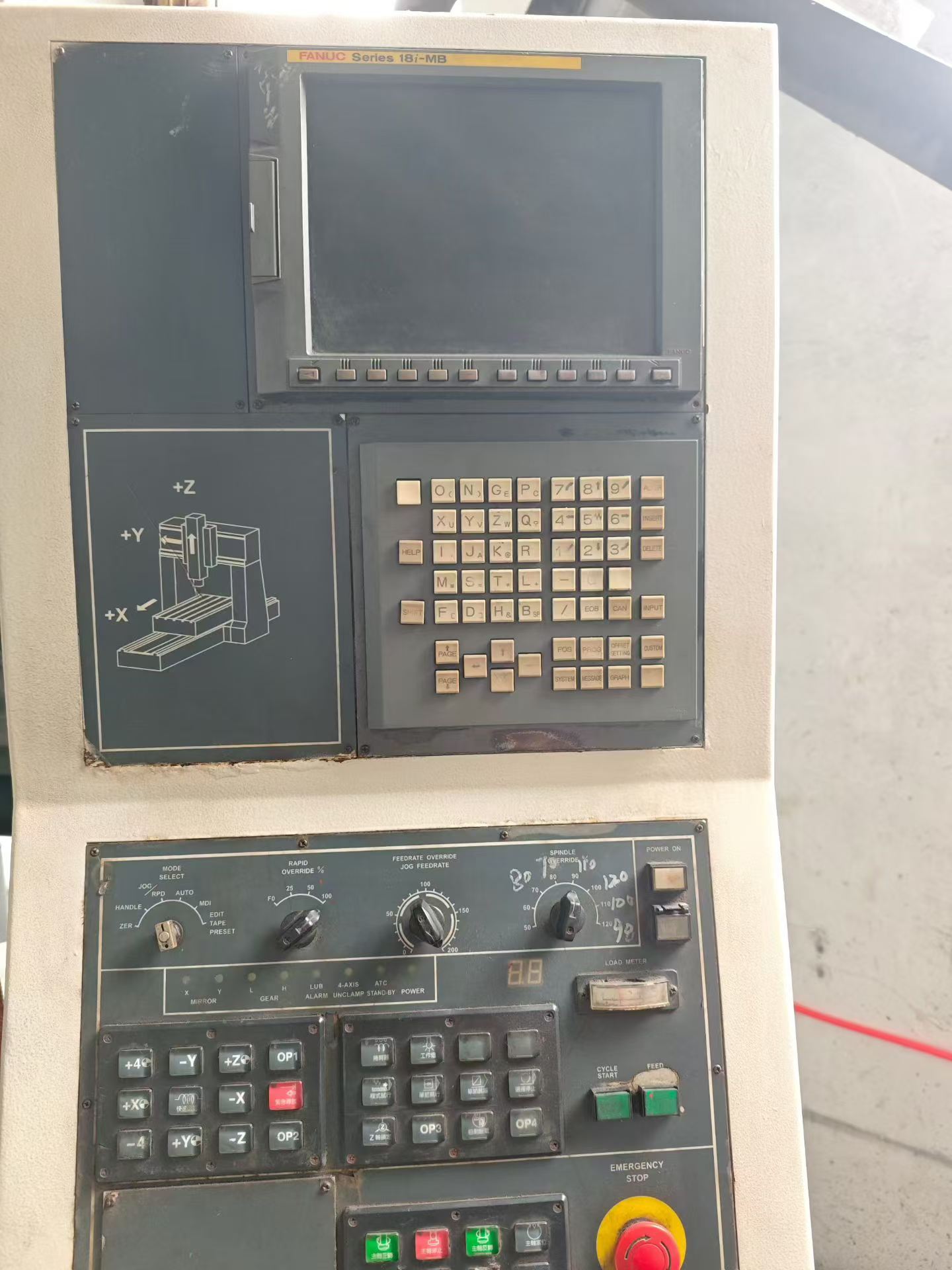

Control system	FANUC Series 18 i-MB

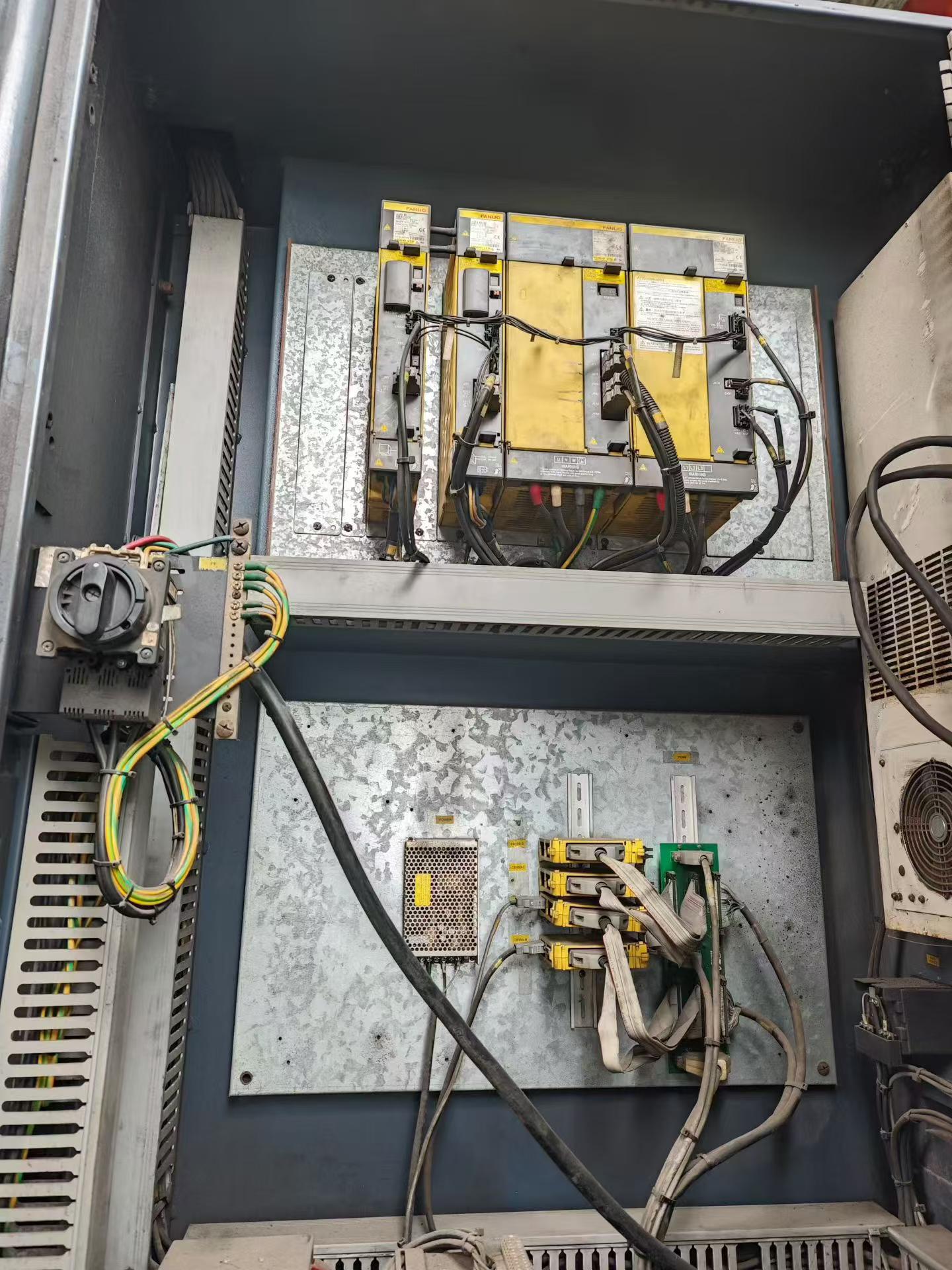

Drive configuration	Separate drive units
Guideway type	Two linear guideways and one box guideway
Spindle taper	BT50
Spindle speed	6000 rpm (gear head)
Spindle cooling	Oil cooling

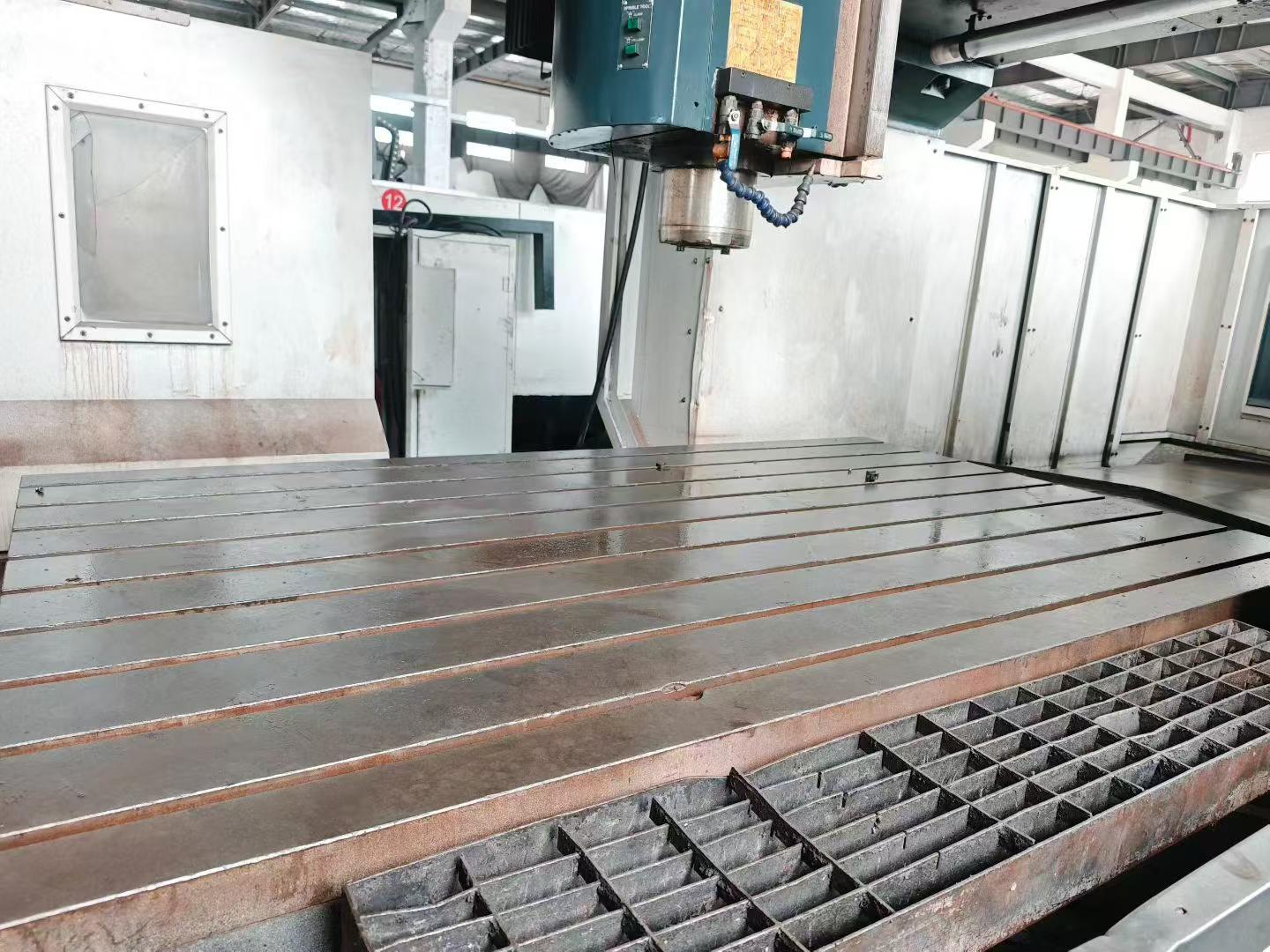

Worktable size	1500 x 2500 mm
Door width	1740 mm
Door height	1240 mm
Spindle nose to table distance	1050 mm
Chip removal	Built-in dual-spiral chip conveyor with chain-type chip removal
Hydraulics	Hydraulic power unit included
Condition	Just arrived
Origin	Taiwan original

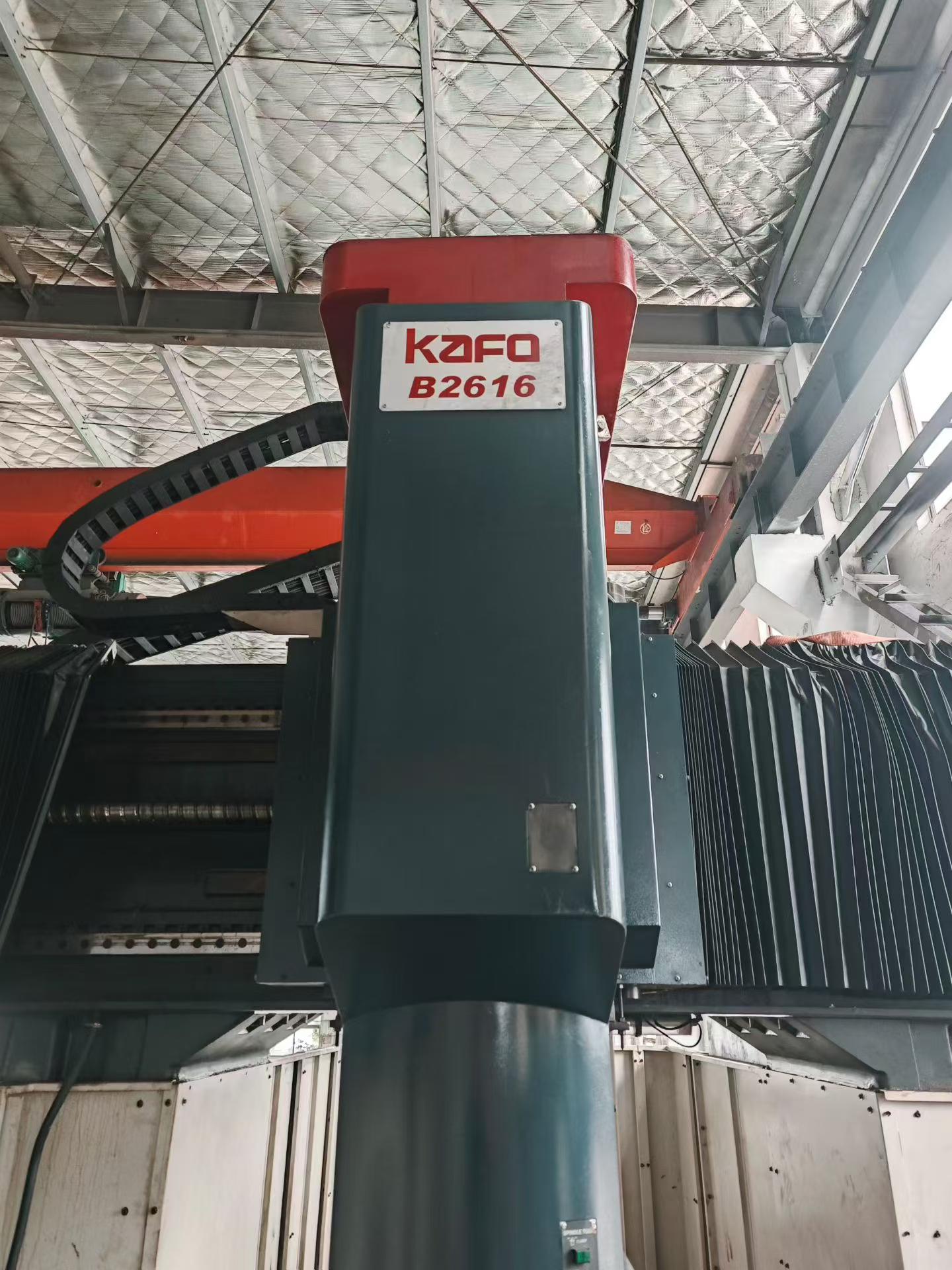

Brand	Kao Fong
Model	B-2616
Quantity	1 unit
Guideway Configuration	Two linear guideways and one box guideway
Hydraulic Unit	Hydraulic unit included
Controller	FANUC MB system
Chip Conveyor	Built-in dual screw + chain-type chip conveyor
