Used Okuma LBR-370-E Turn-Mill CNC Lathe for Sale
Okuma · LBR-370-E
2018 · Okuma OSP-P 300 LA-e · China
AvailableTurn-Mill CNC Lathe
Used Okuma U 3000 5-Axis Turn-Mill CNC Lathe with OSP-P 300 SA-H

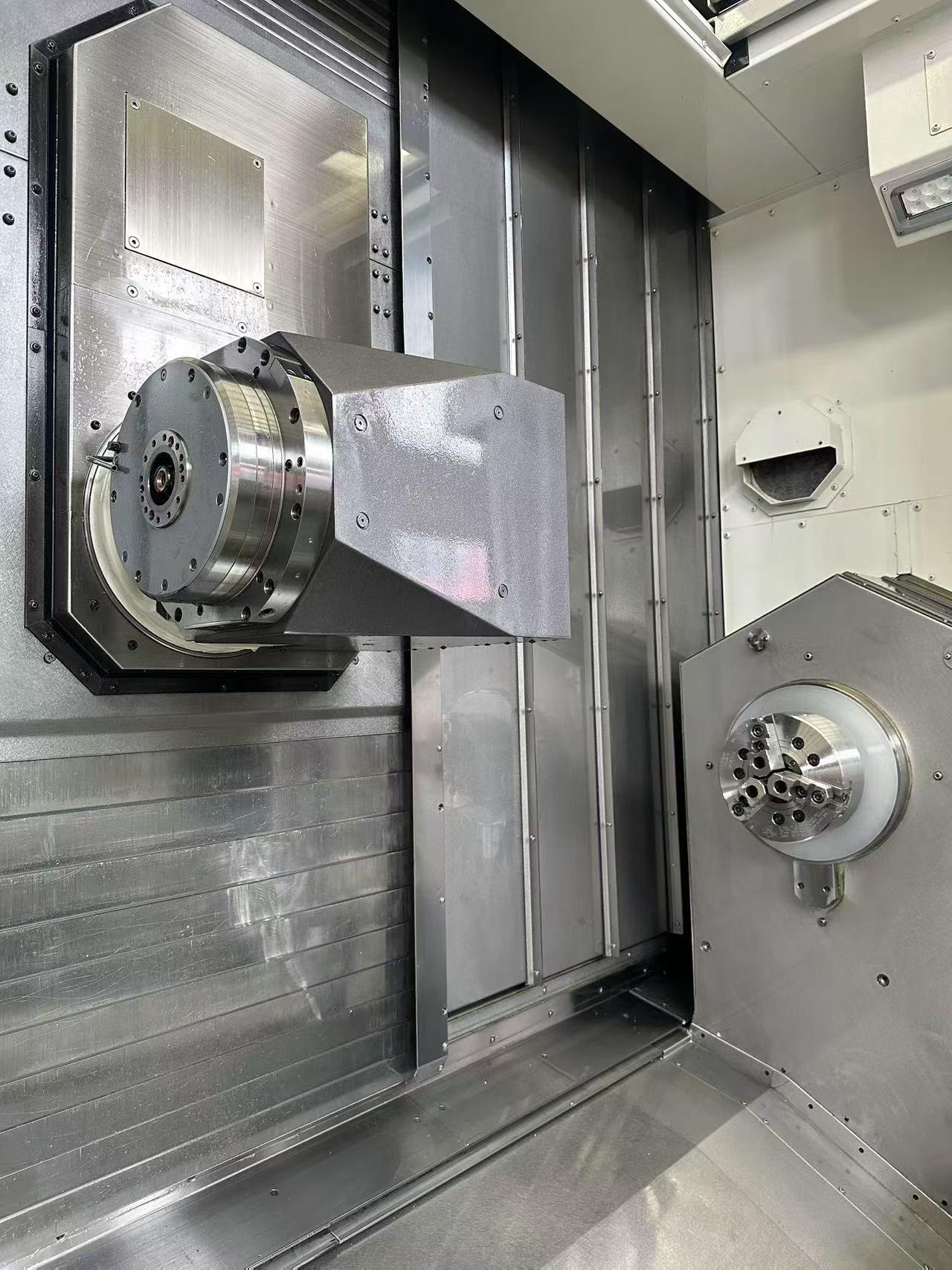

Original Japanese Okuma U 3000 5-axis turn-mill machining center with Okuma OSP-P 300 SA-H control. Equipped with B-axis rotation range of 240° and 0.001° minimum index increment for 5-axis simultaneous milling. The C-axis provides full contouring spindle indexing for integrated turning and milling. Additional specifications include HSK-A 63 tool holders, 8-inch chuck, 5,000 rpm spindle speed, 40-tool magazine, and motor power of 22/15 kW. Includes built-in anti-collision system and chip conveyor. Manufactured in October 2020.
- Machine Code
- TML260840
- Year
- 2020
- Location
- China
- Usage Hours
- On request
Accessories
Chip conveyor
Main Specifications

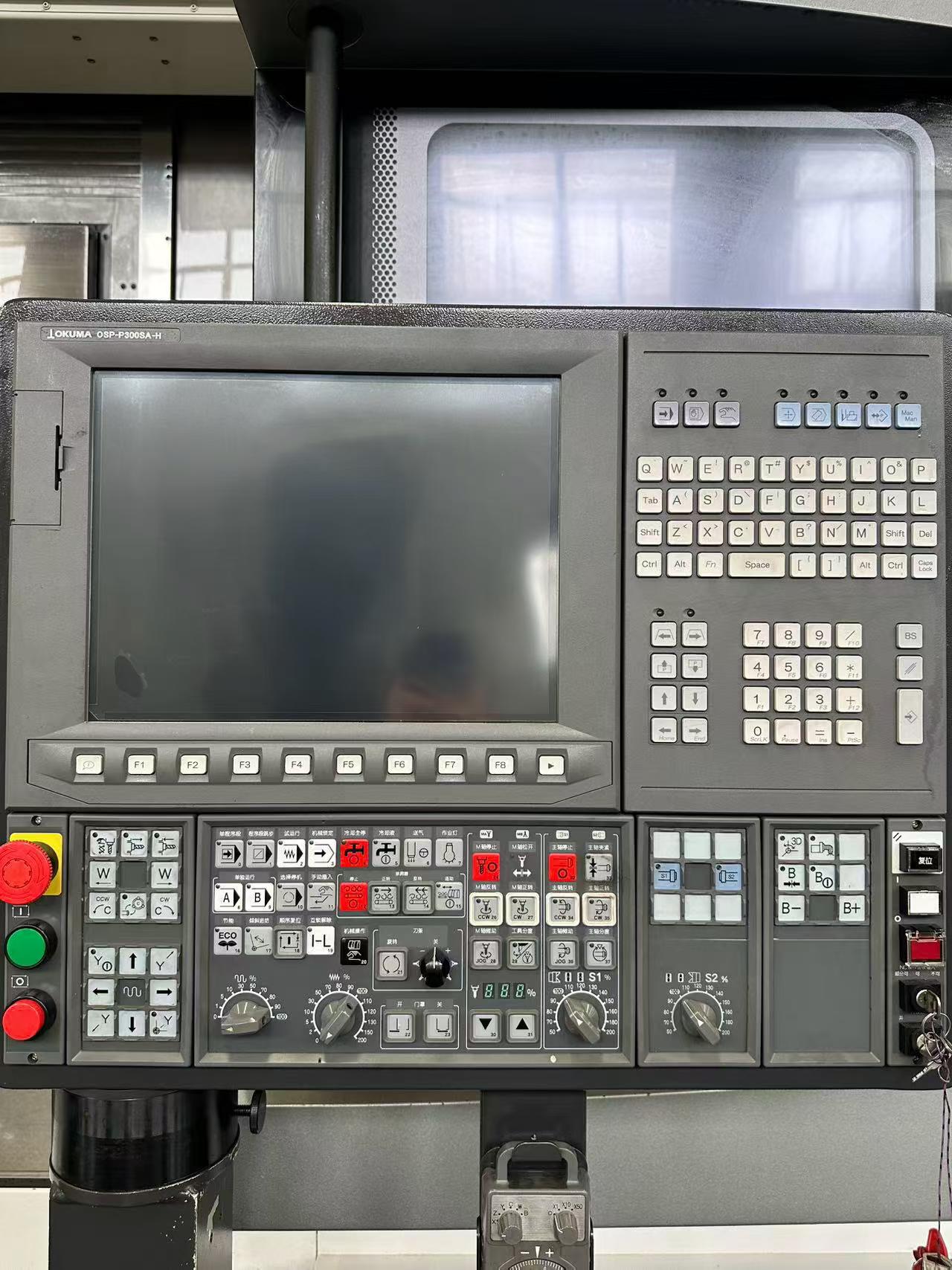

| Control system | Okuma OSP-P 300 SA-H |
|---|---|
| Maximum swing diameter | 650 mm |
| Maximum machining length | 1000 mm |
| X-axis travel | 645 mm |
| Y-axis travel | 250 mm |
| Z-axis travel | 1000 mm |
| B-axis rotation range | 240° |
| Minimum index increment | 0.001° |
| C-axis | Full contouring spindle indexing, turn-mill integrated |
| Tool holder standard | HSK-A 63 |

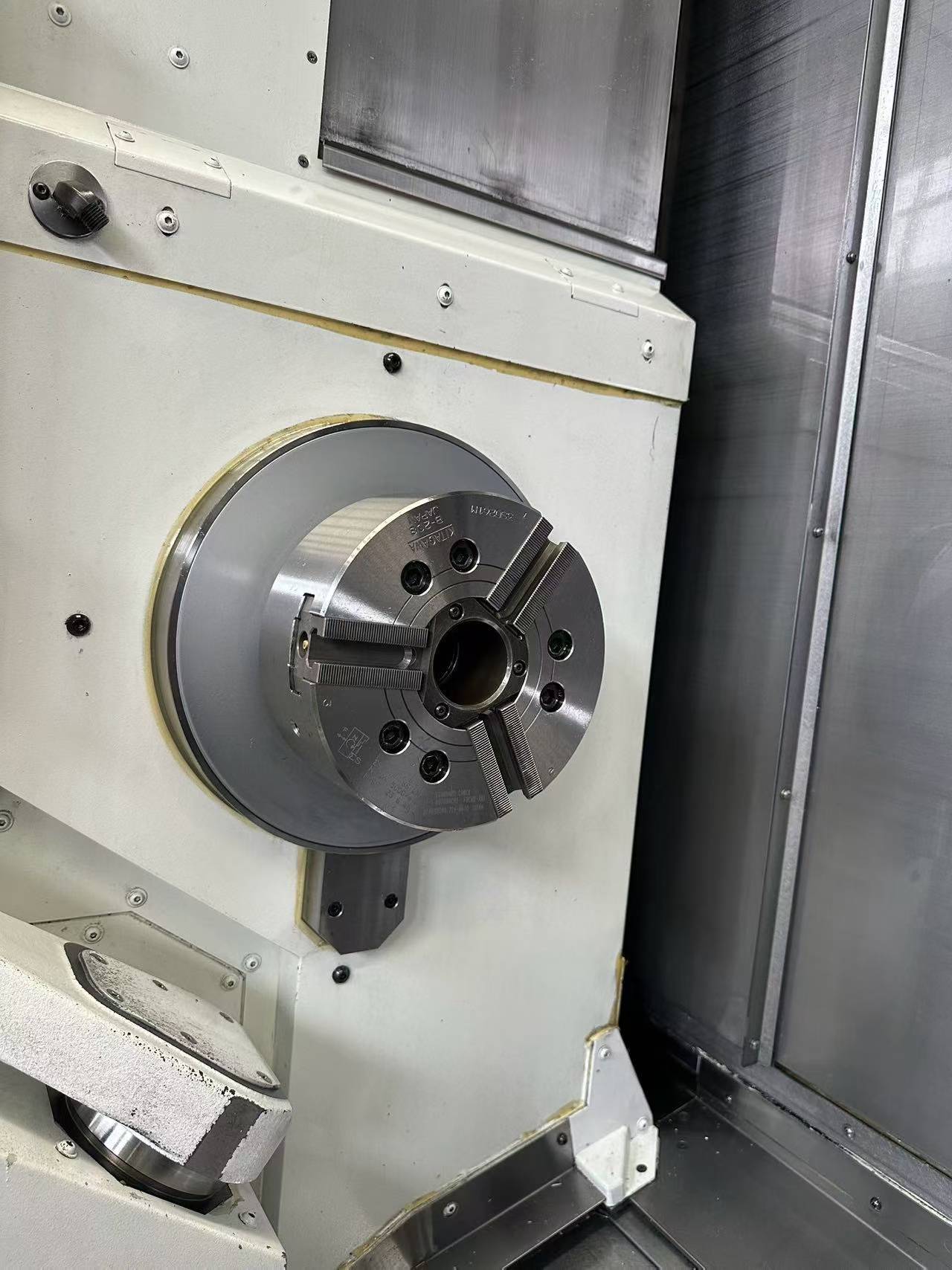

| Chuck size | 8inches |
| Spindle speed | 5000 rpm |

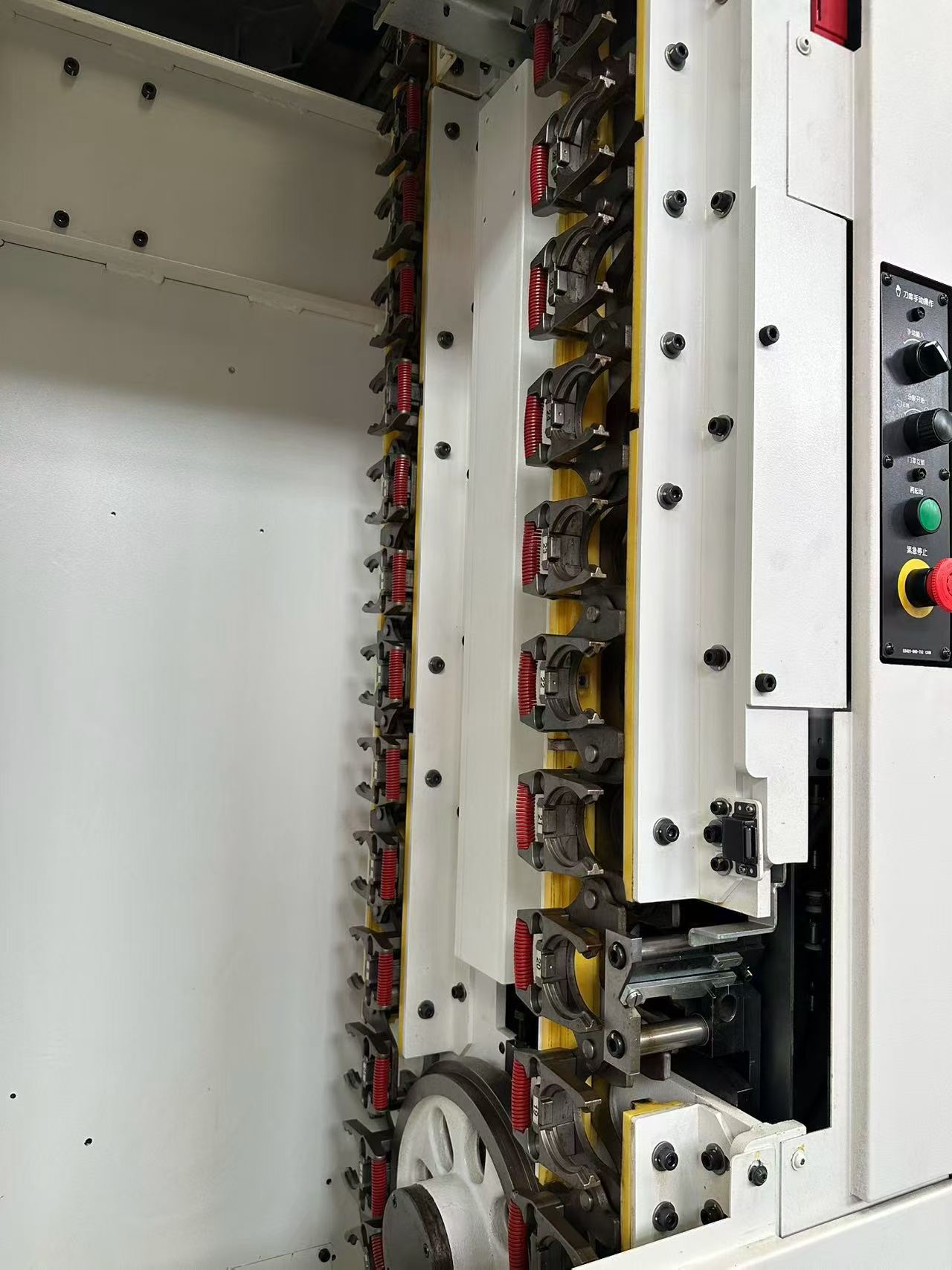

| Tool magazine capacity | 40 tools |
| Motor power | 22/15 kW |
| Manufacturing date | October 2020 |
| Brand | Okuma |
| Year of manufacture | 2020 |
