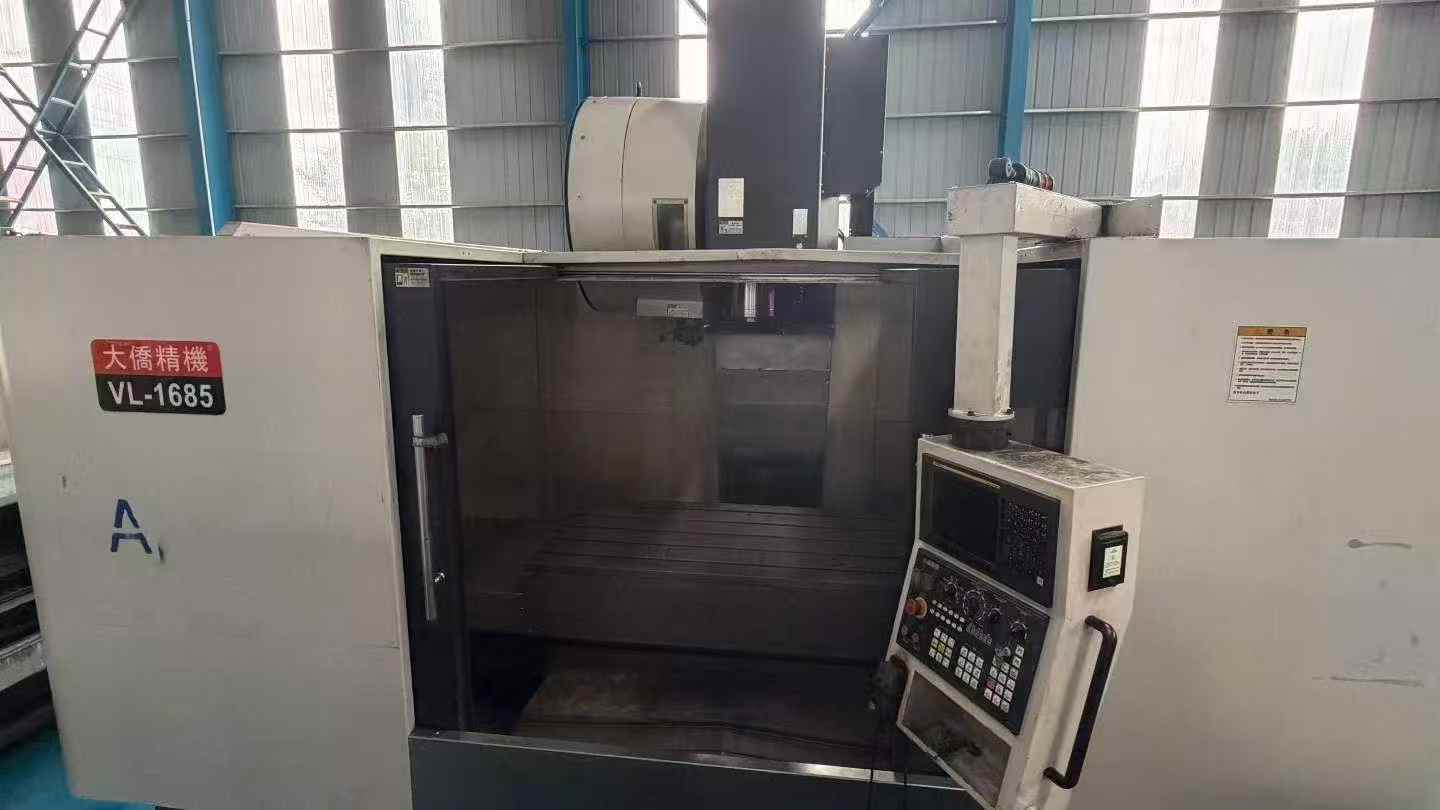

Used Daqiao Precision VL-1685 Machining Center with FANUC MF

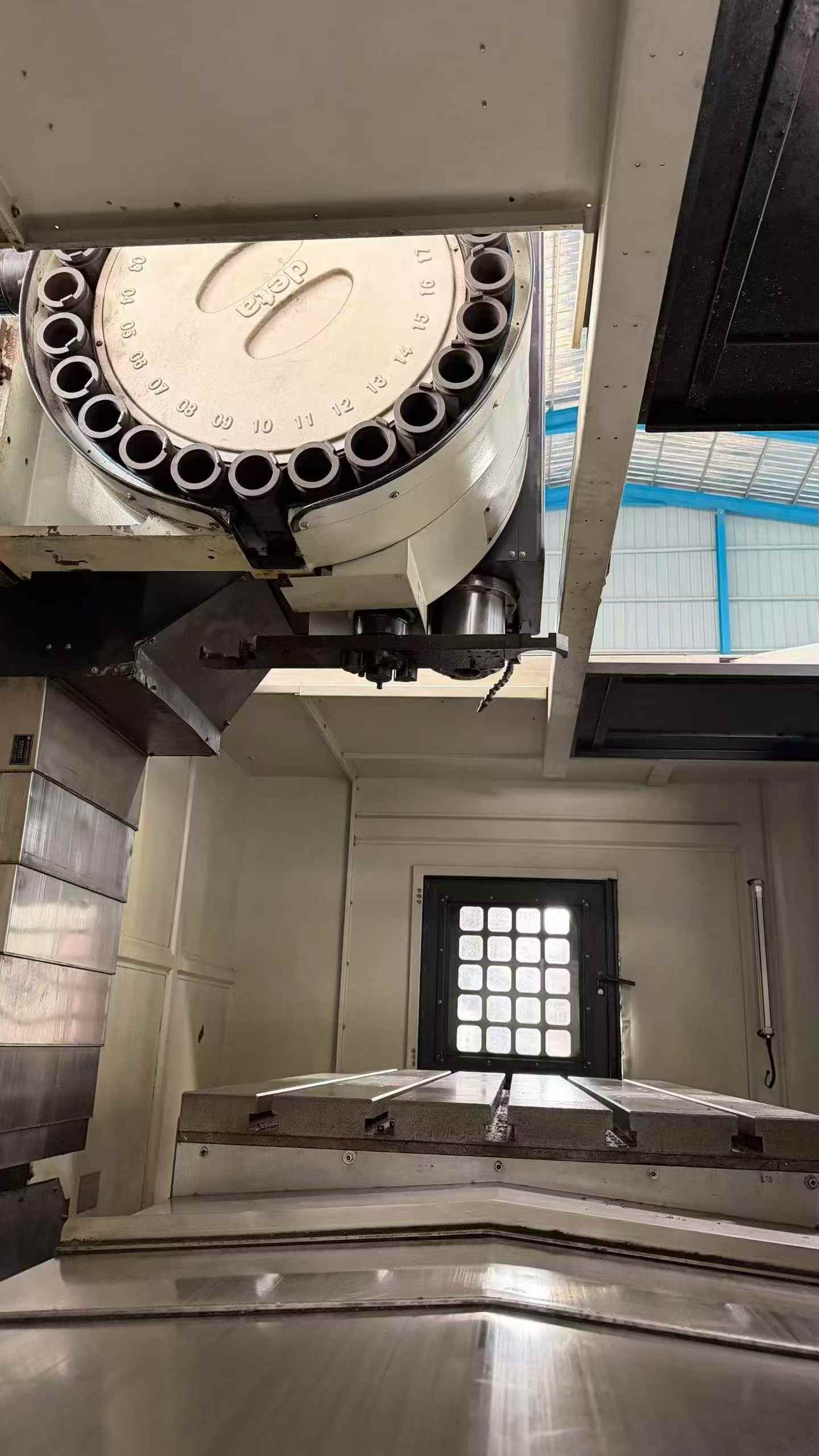

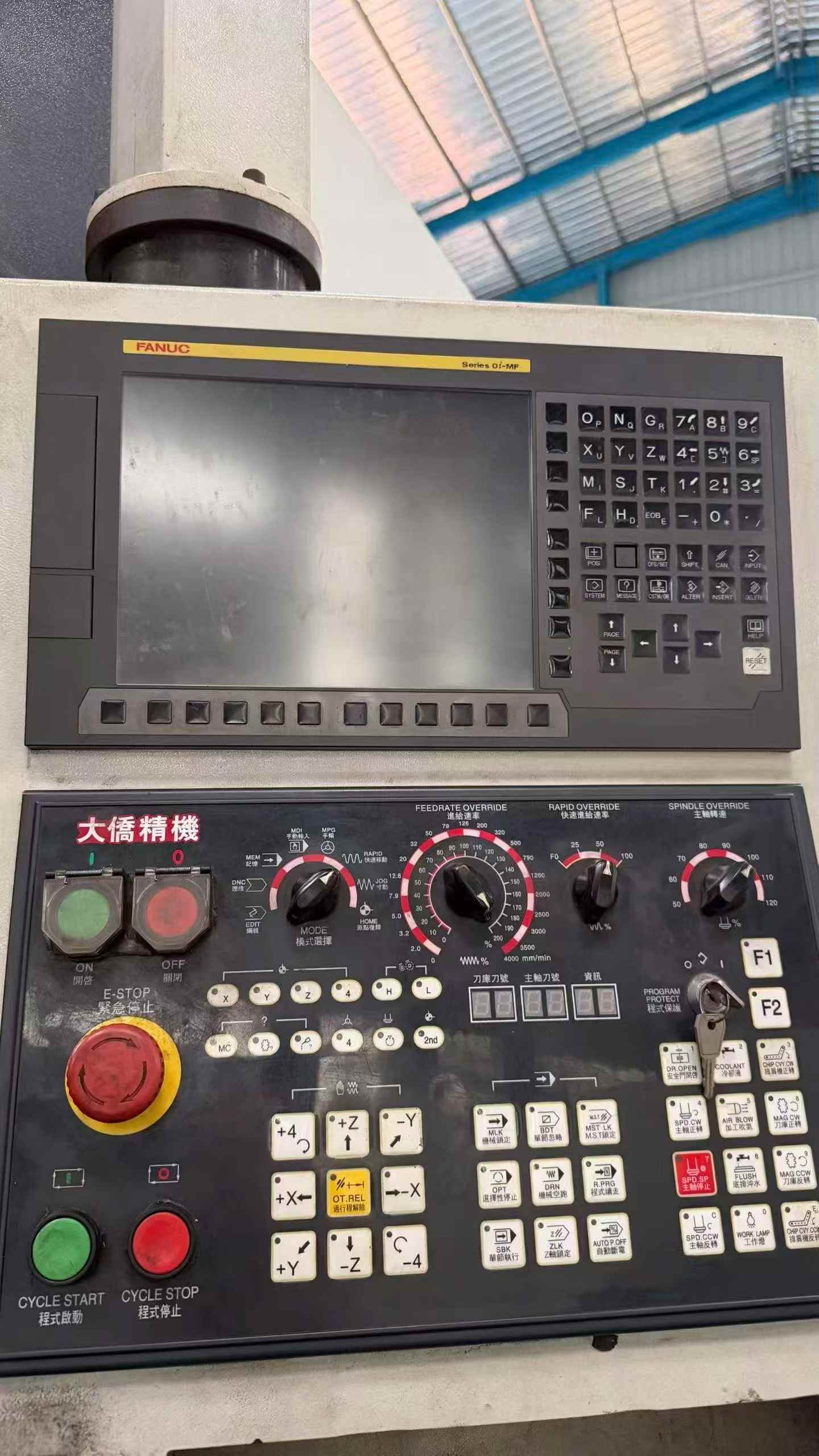

Used Daqiao Precision VL-1685 machining center with three-axis linear guideways. Equipped with FANUC MF large-screen CNC control, BT50 belt-driven spindle up to 8000 rpm, 1700 x 850 mm worktable, and X/Y/Z travels of 1680/850/850 mm. Features a 24-station arm-type disc tool magazine for automatic tool changing. Good condition and high accuracy; trial operation is welcome.
- Machine Code
- MC260898
- Year
- On request
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Control system | FANUC MF |
|---|---|
| Guideway type | 3-axis linear guideway |

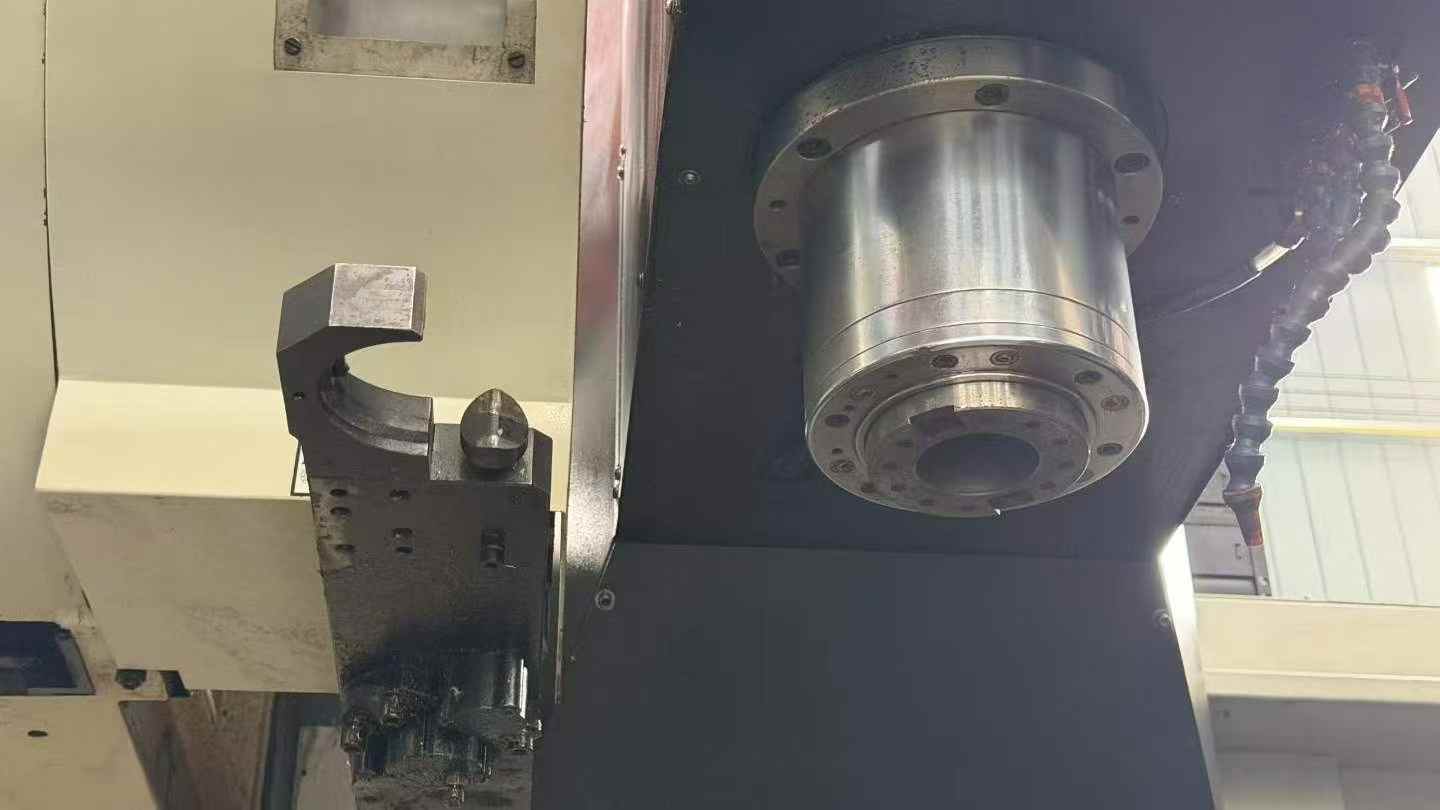

| Spindle taper | BT50 |
| Spindle drive | Belt drive |
| Spindle speed | 8000 rpm |

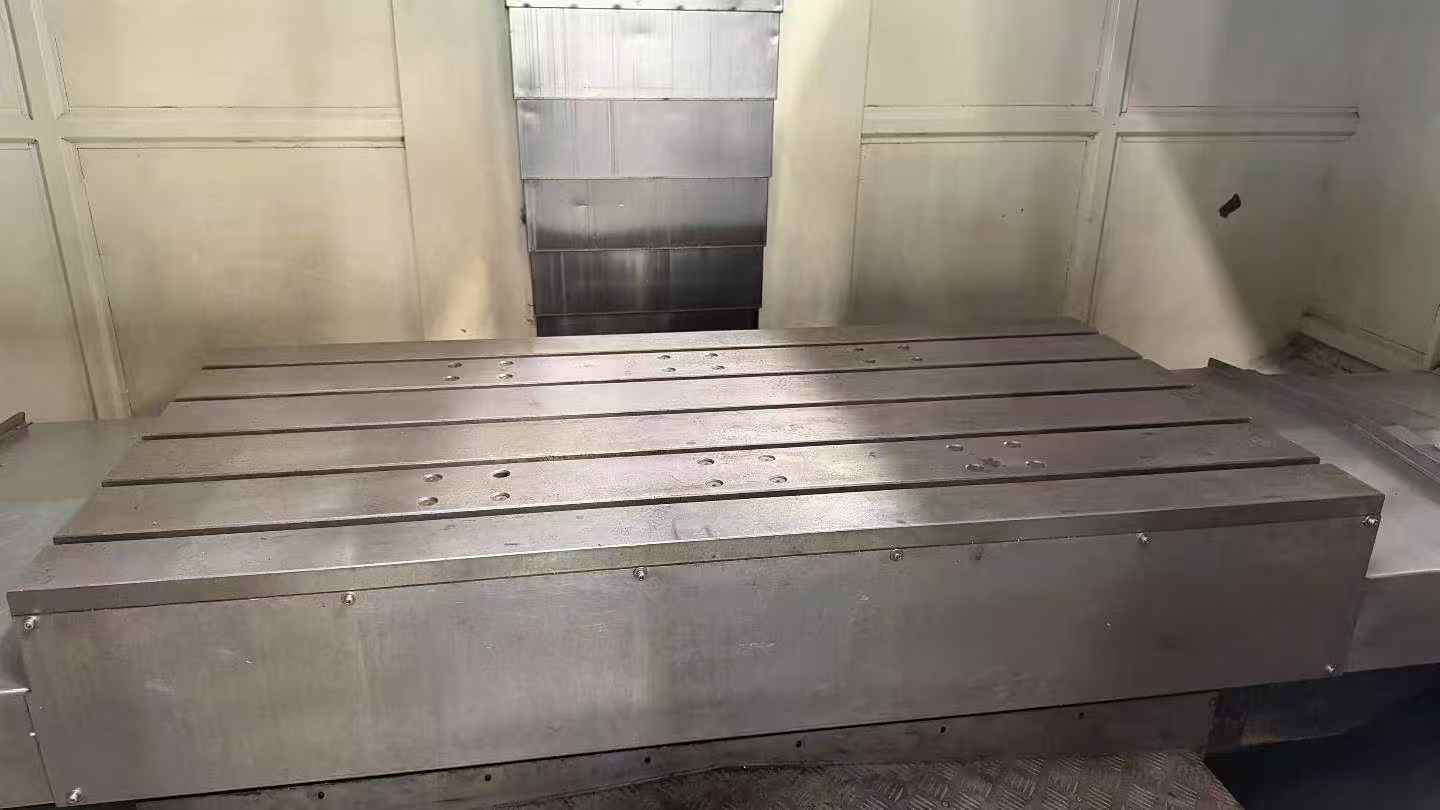

| Worktable size | 1700 x 850 mm |
| X-axis travel | 1680 mm |
| Y-axis travel | 850 mm |
| Z-axis travel | 850 mm |
| Tool magazine capacity | 24 tools |
| Tool changer type | Arm-type disc automatic tool changer |
