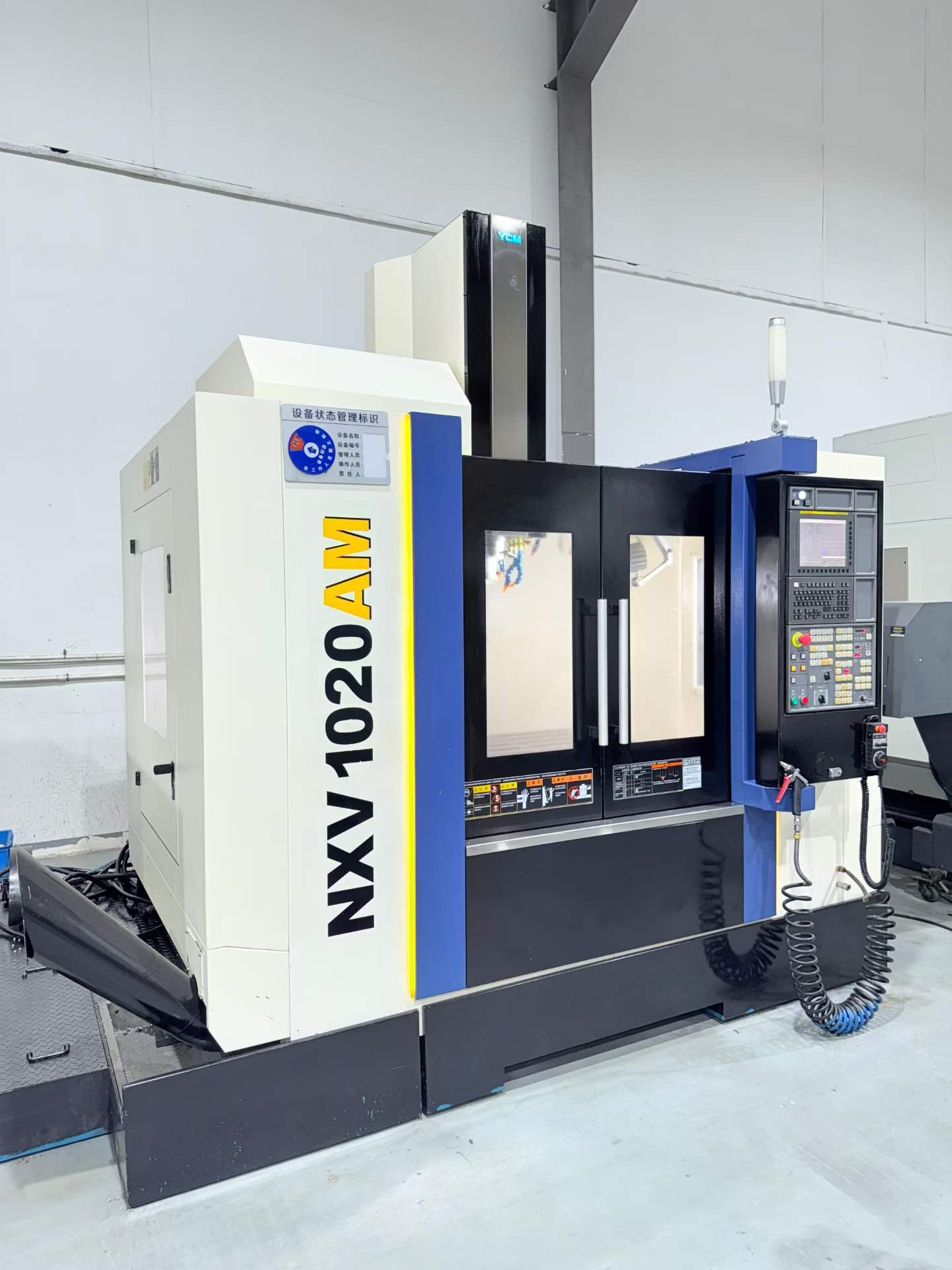

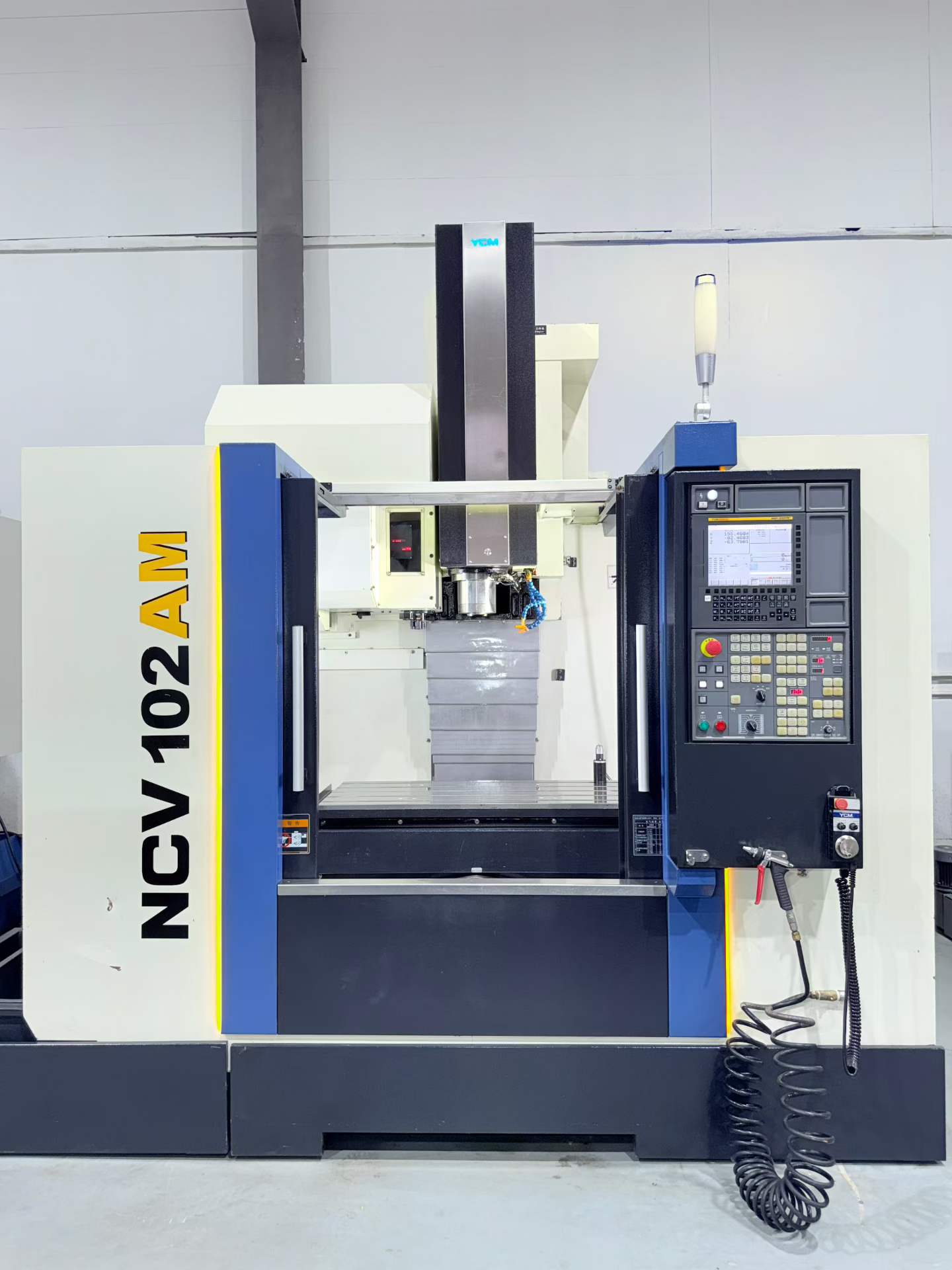

Used YCM NCV 102 AM Vertical Machining Center with FANUC MXP-200 FB Control

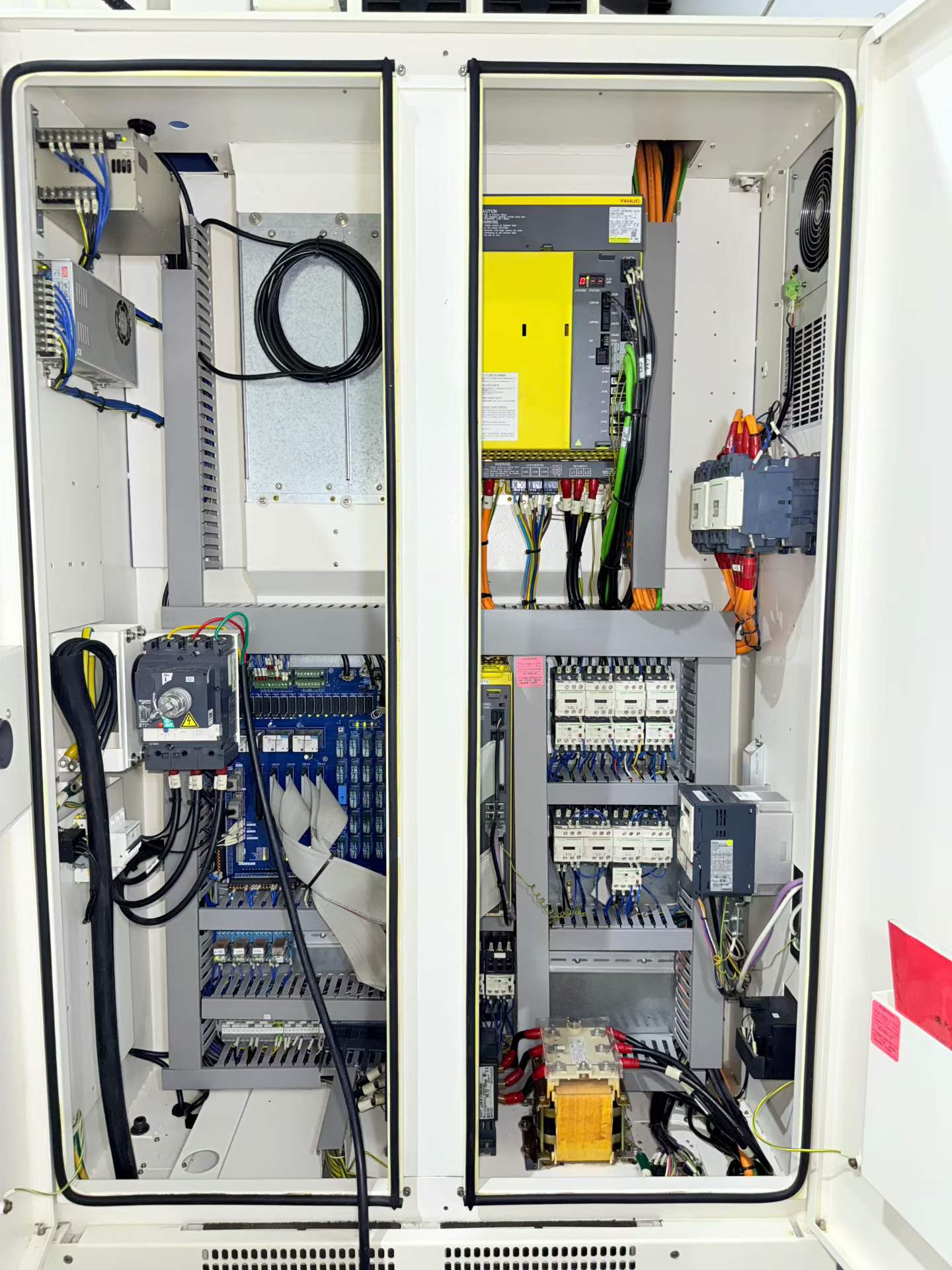

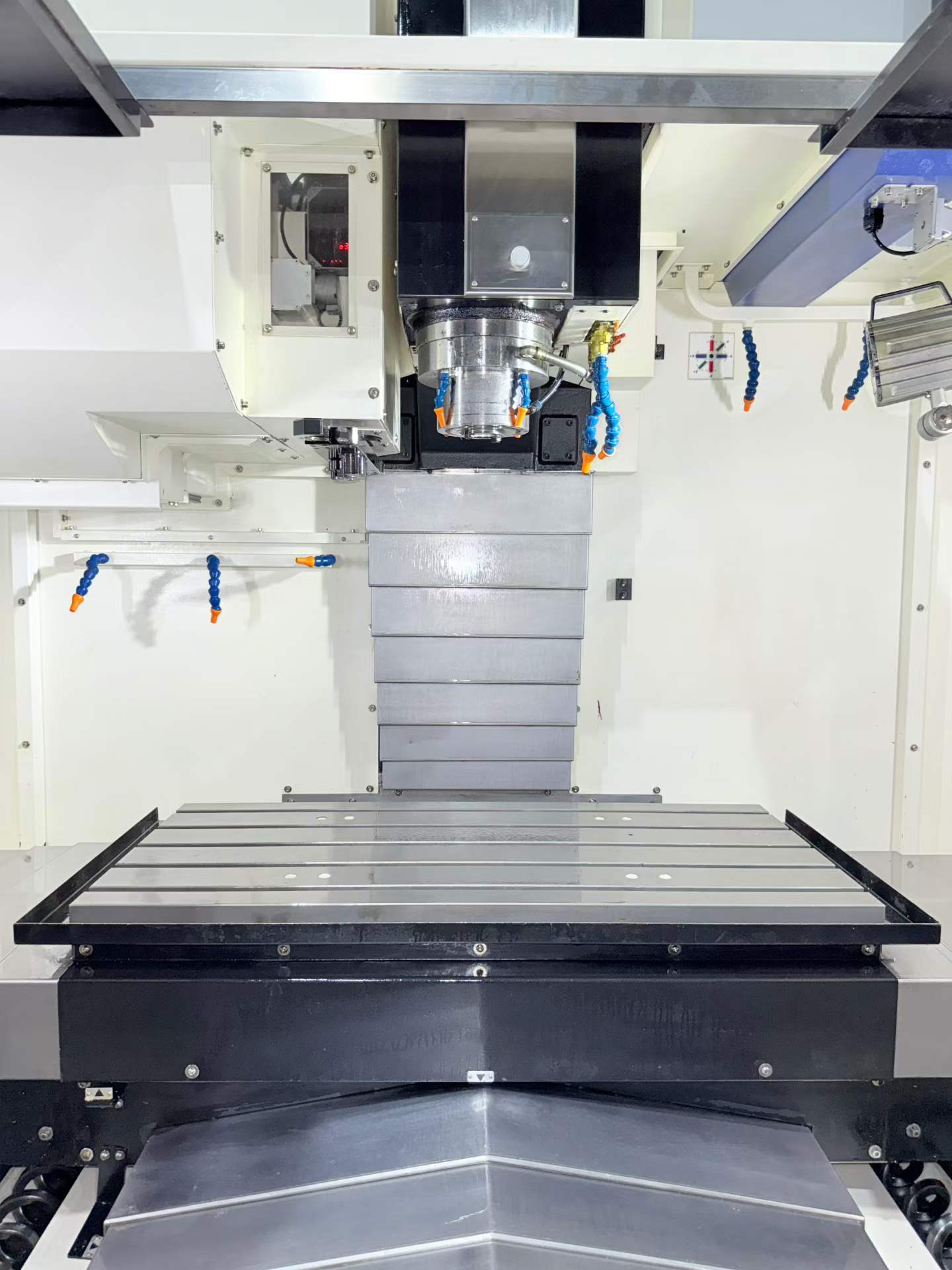

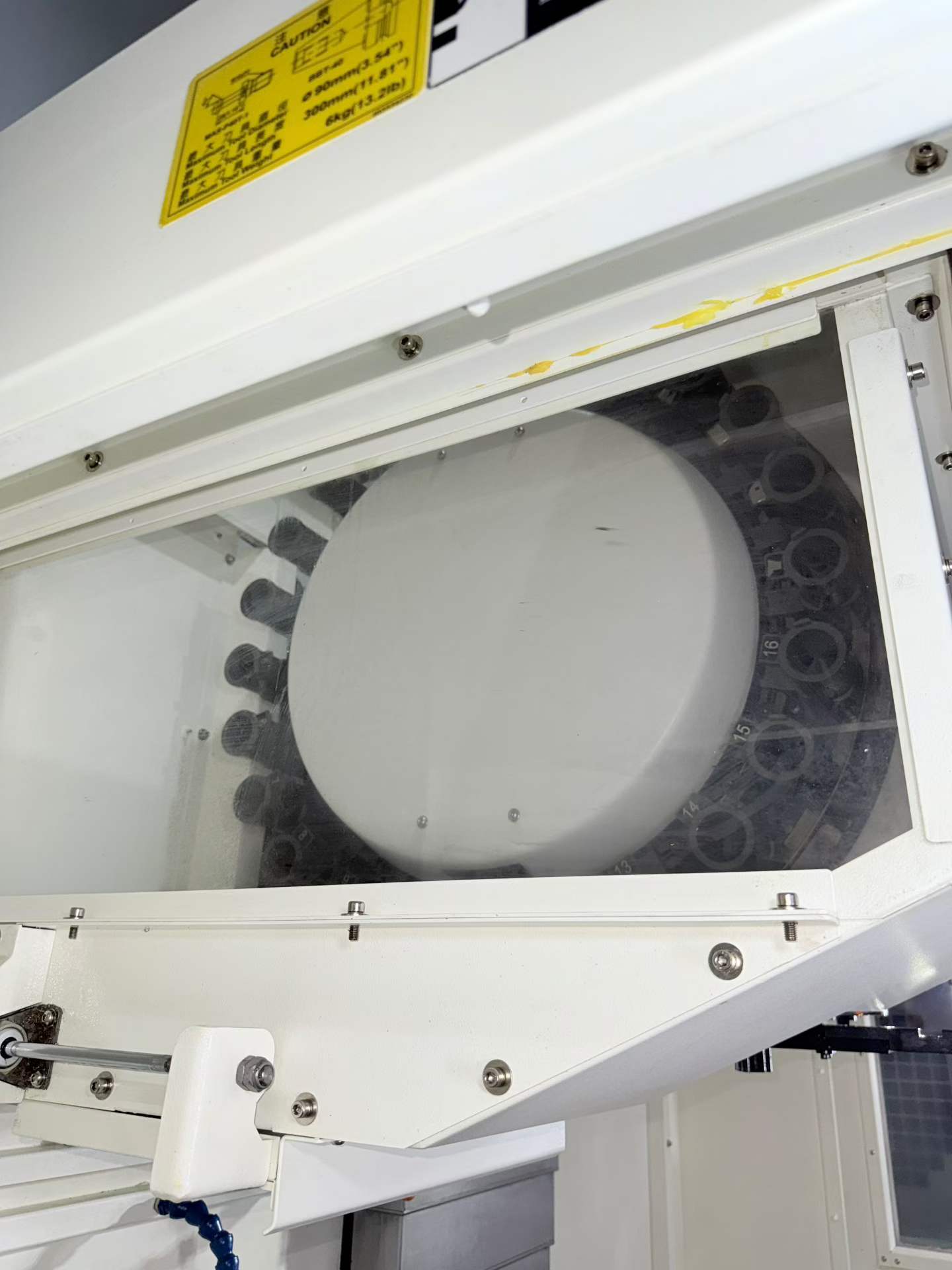

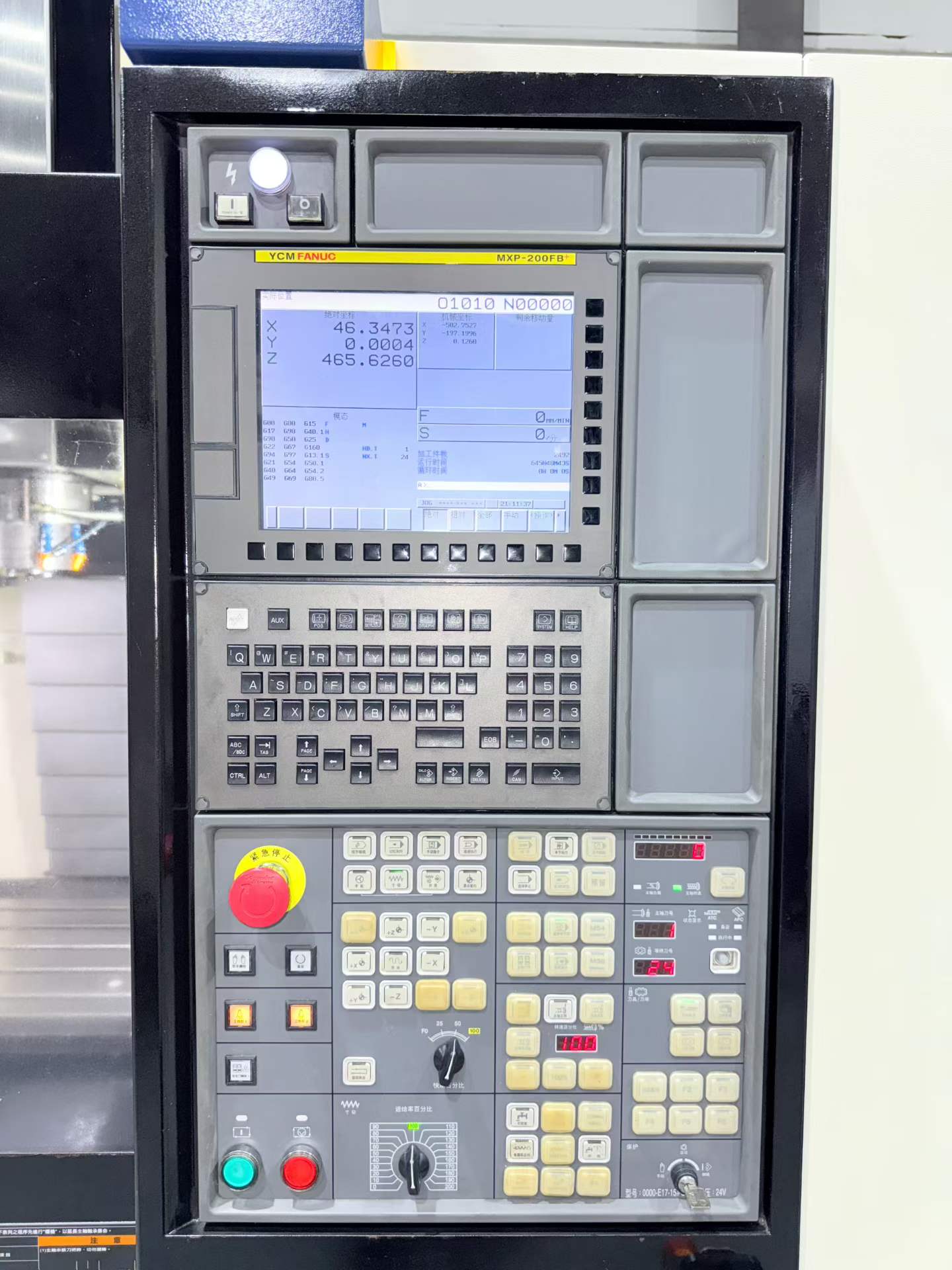

Used YCM NCV 102 AM vertical machining center, offered as three identical units for mold machining work. The machine is equipped with the FANUC MXP-200 FB high-specification control system including the mold machining package, with FANUC drives installed in the electrical cabinet. X/Y/Z travels are 1020 x 520 x 540 mm. The BBT 40 spindle is oil-air lubricated, runs up to 15,000 rpm and is fitted with an oil cooler. A 24-station disc-type tool magazine, THK guideways and ball screws with 8 mm pitch are fitted, and the worktable uses a T-slot structure. Ancillary equipment includes an automatic chip conveyor, a tool setter and an oil-water separator.

Machine Code: VMC2609170
Year: On request
Location: China
Usage Hours: On request

Accessories

Automatic chip conveyor, tool setter, oil-water separator, disc-type 24-station tool magazine, oil cooler for spindle

Email Inquiry

Main Specifications

X/Y/Z travel	1020 x 520 x 540 mm
Spindle taper	BBT 40
Spindle speed	15,000 rpm
Spindle lubrication	Oil-air lubrication with oil cooler
Tool magazine capacity	24 tools (disc type)
Guideway	THK
Ball screw pitch	8 mm
Control system	FANUC MXP-200 FB
Brand	YCM
