Used YLES GMC 2015 CNC Gantry Machining Center with FANUC 0i-MF Plus

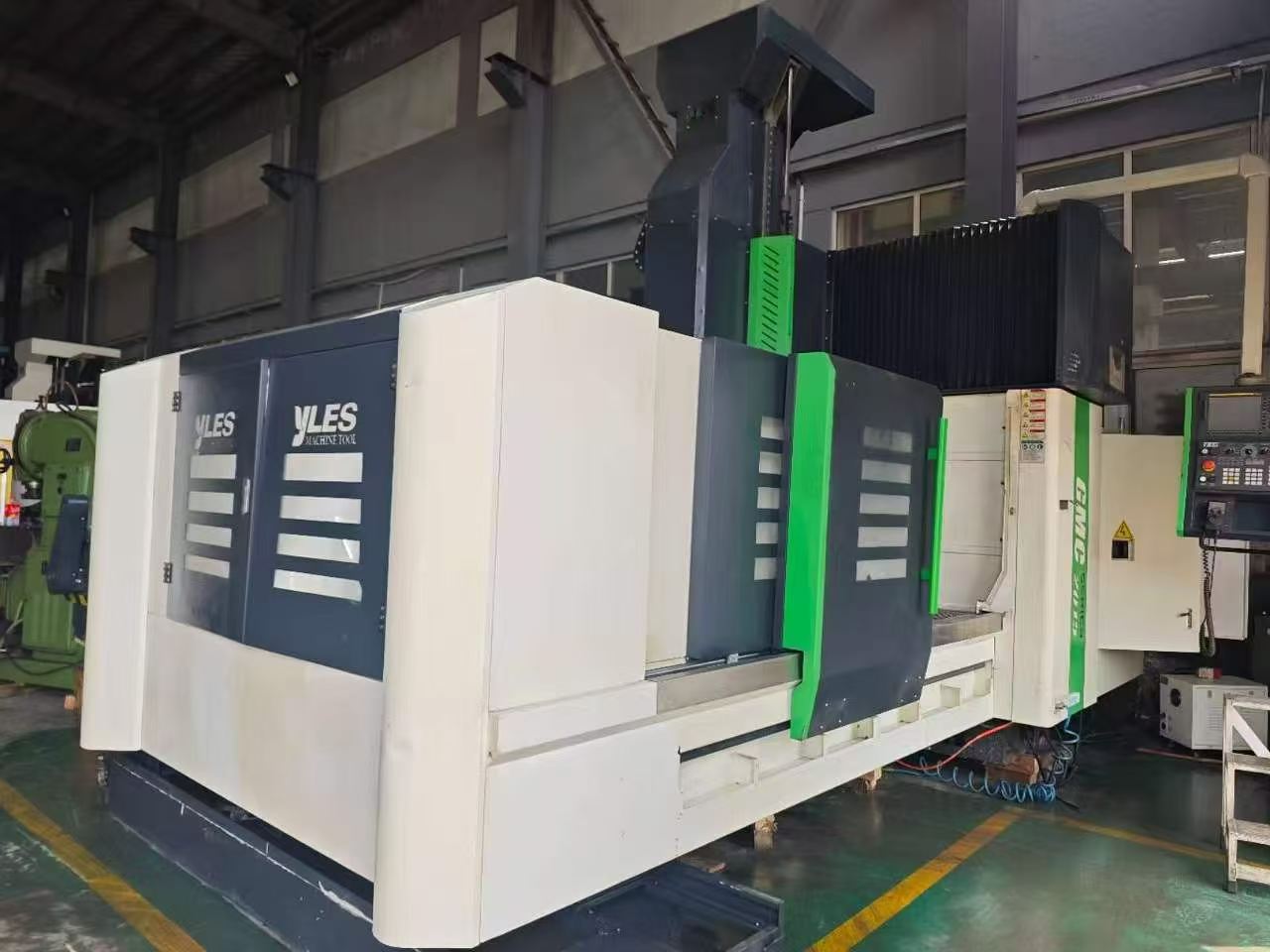

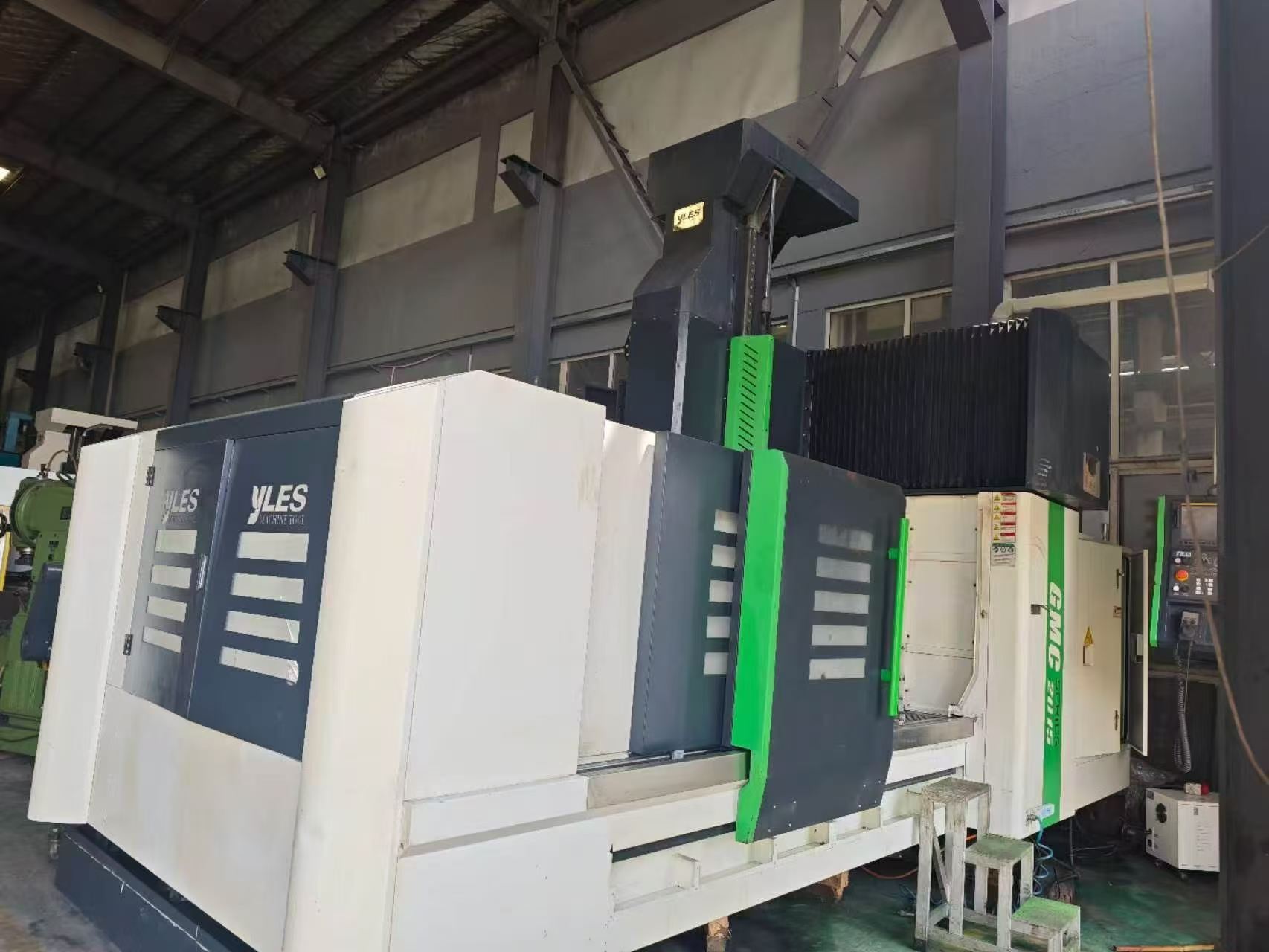

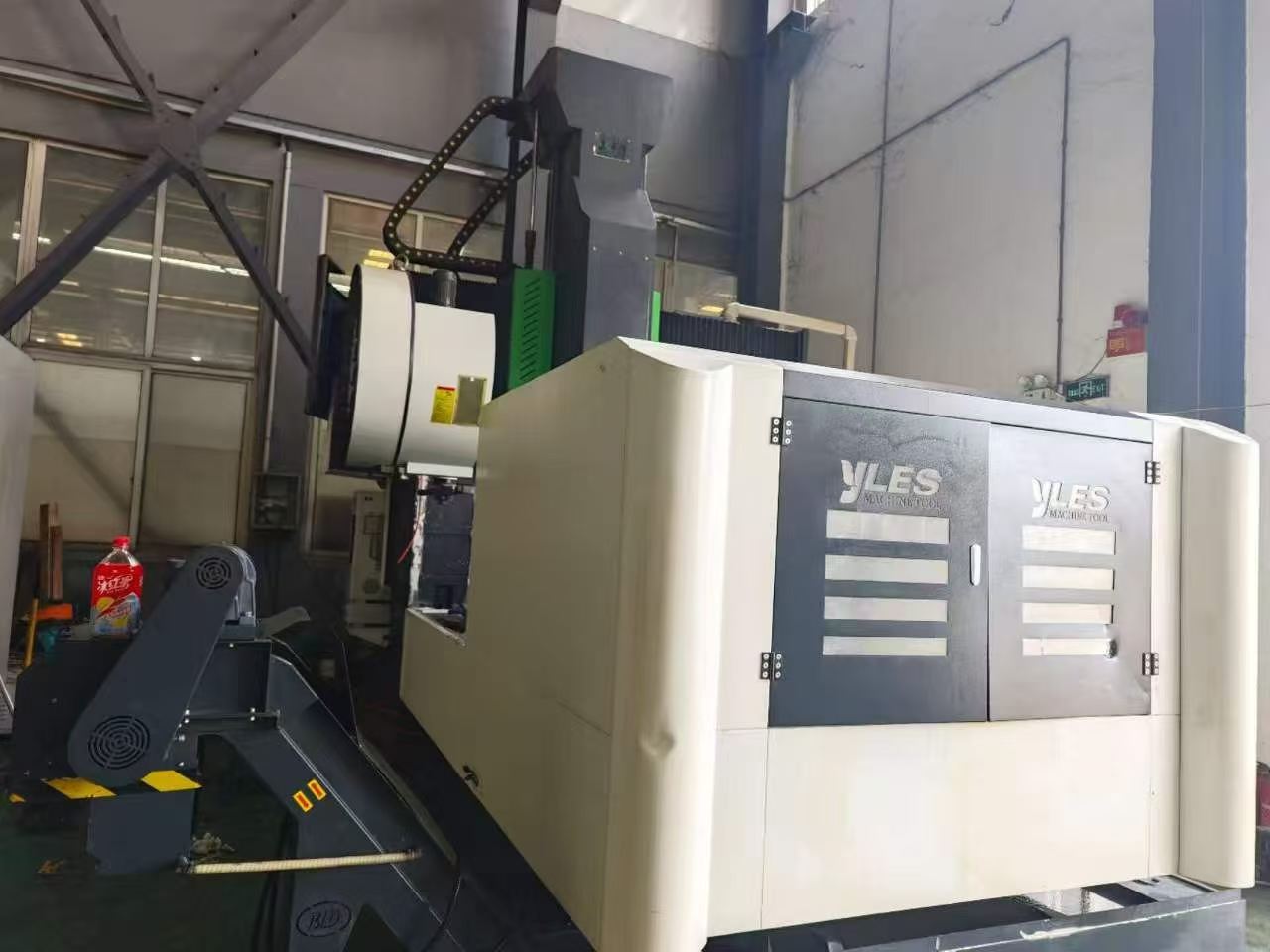

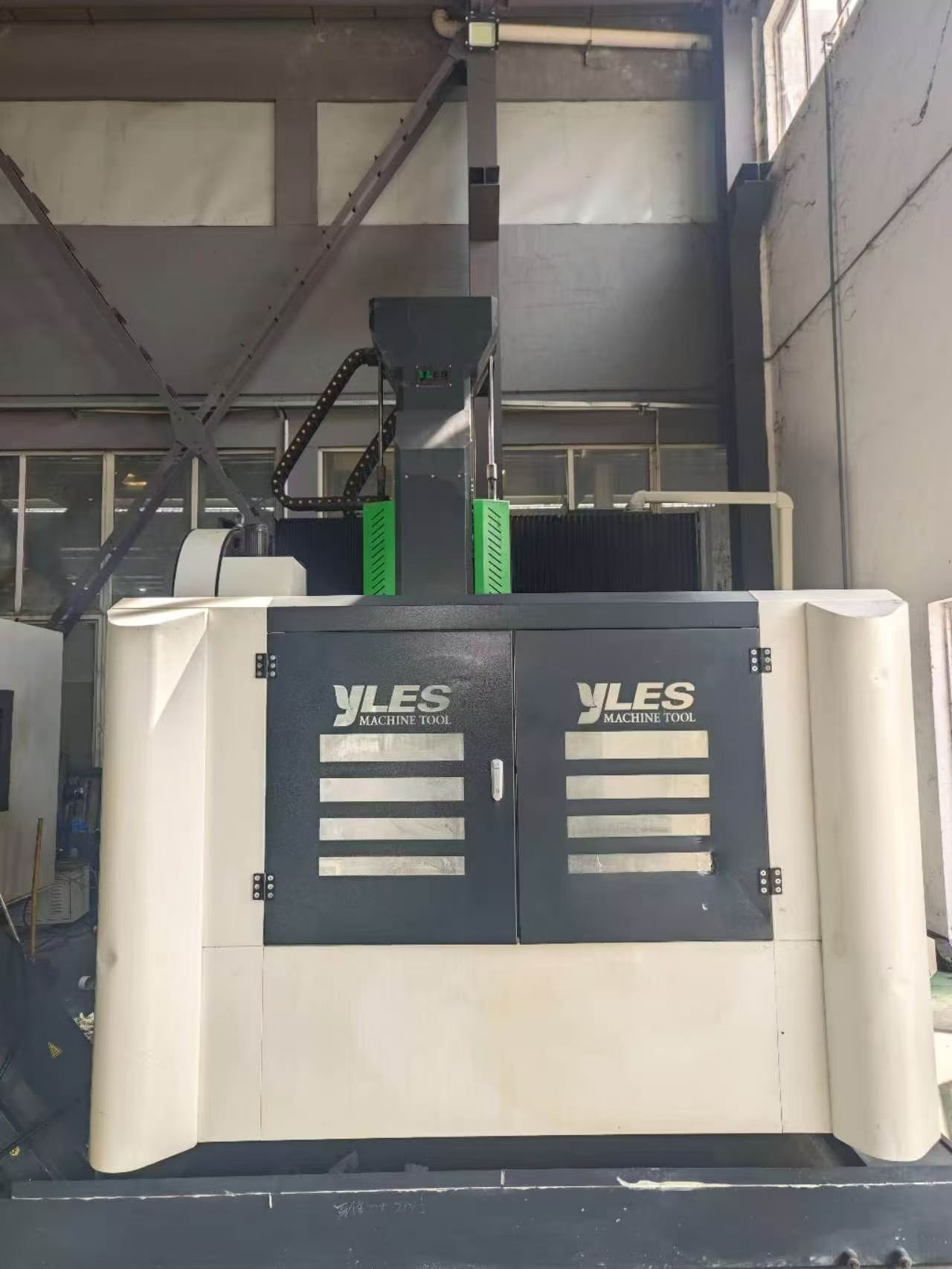

Newly arrived YLES GMC 2015 CNC gantry machining center, manufactured in March 2024 and in very good condition. The machine runs on a FANUC 0i-MF Plus CNC control system and features three-axis linear guideways, giving smooth, rigid travel and reliable accuracy on large workpieces. The spindle is a Taiwan Luoyi BT50 unit rated 6,000 rpm and fitted with an oil cooler, and tool changes are handled by a 24-station Taiwan Gangtian mechanical tool magazine. The worktable measures 2100 x 1300 mm, with a door width of 1570 mm, door height of 1150 mm and a spindle nose to table distance of 1060 mm, providing generous room for tall fixtured parts. Chip evacuation uses a built-in dual screw-type conveyor combined with a chain-type chip conveyor for continuous production. Electrical rating is 380 V, 40 KVA. The machine is in very good condition throughout and ready to work.
- Machine Code
- MC260990
- Year
- 2024
- Location
- China
- Usage Hours
- On request
Accessories
Taiwan Luoyi BT50 spindle unit, 6,000 rpm, with spindle oil cooler 24-station Taiwan Gangtian mechanical tool magazine Built-in dual screw-type chip conveyor plus chain-type chip conveyor FANUC 0i-MF Plus CNC control system
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Machine type | CNC Gantry Machining Center |
|---|---|
| Model | GMC 2015 |

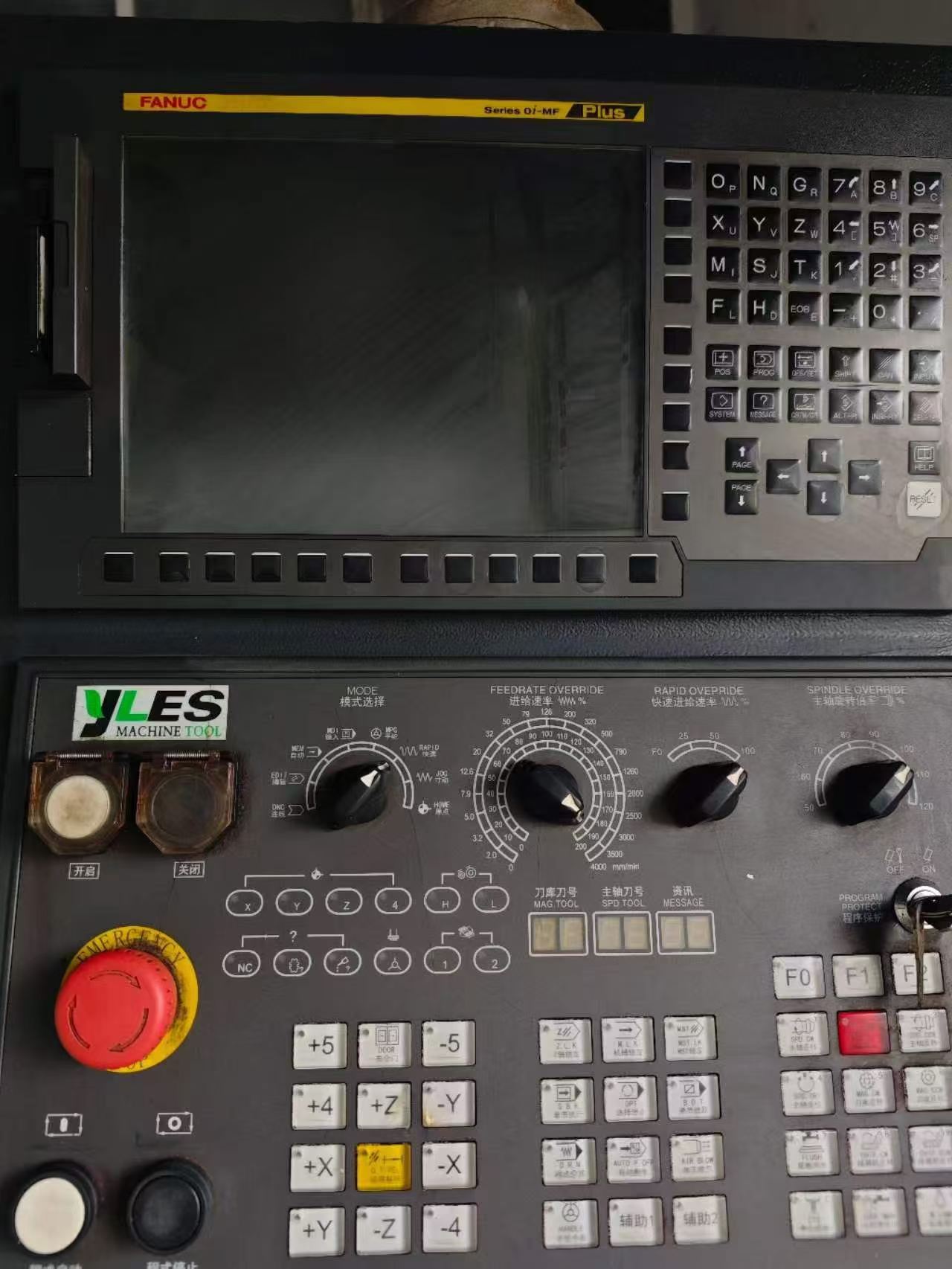

| Control system | FANUC 0i-MF Plus |
| Guideway type | 3-axis linear guideways |

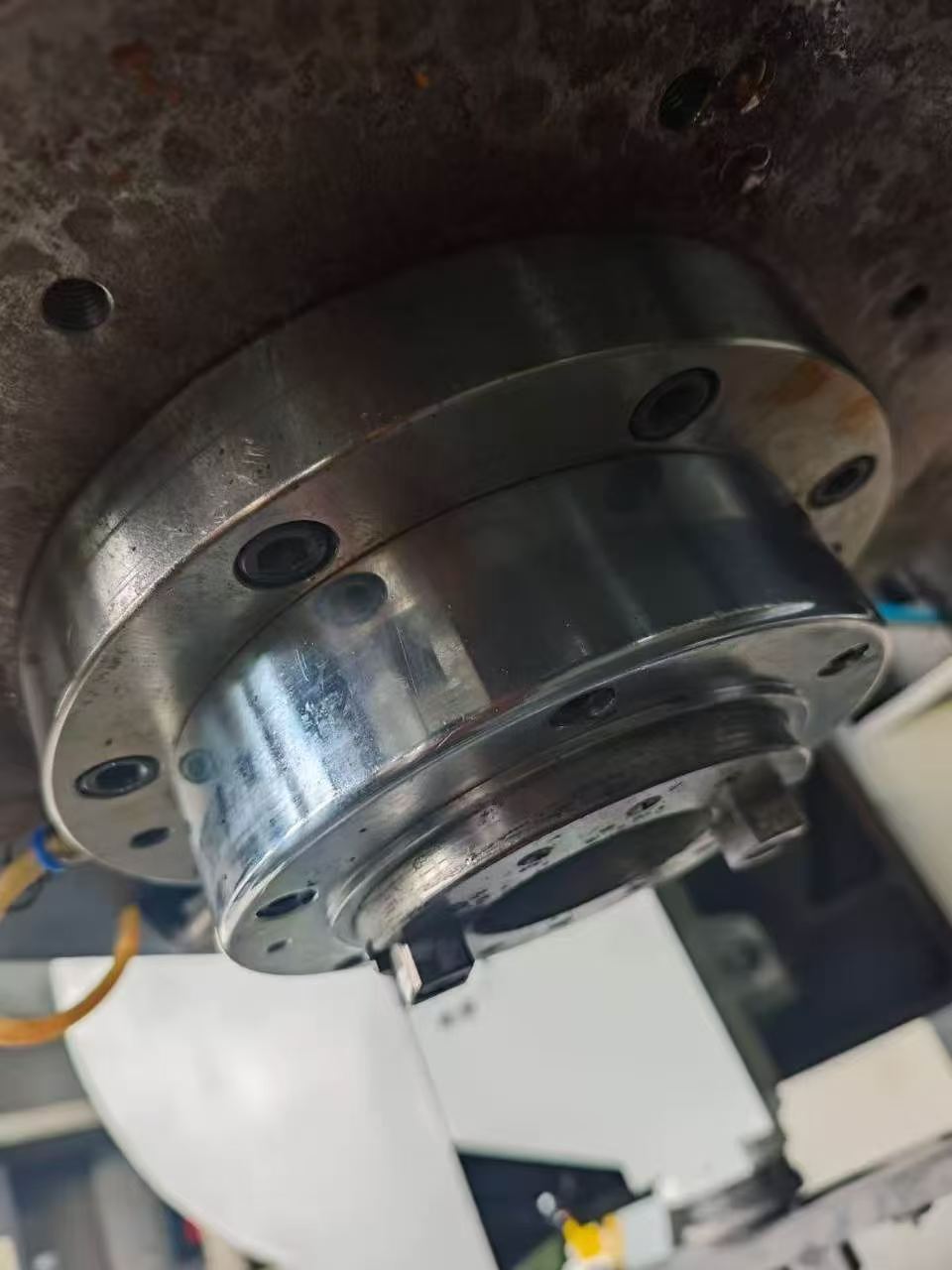

| Spindle taper | BT50 |
| Spindle speed | 6,000 rpm |
| Spindle cooling | Oil cooler |
| Tool magazine capacity | 24 stations, mechanical type |

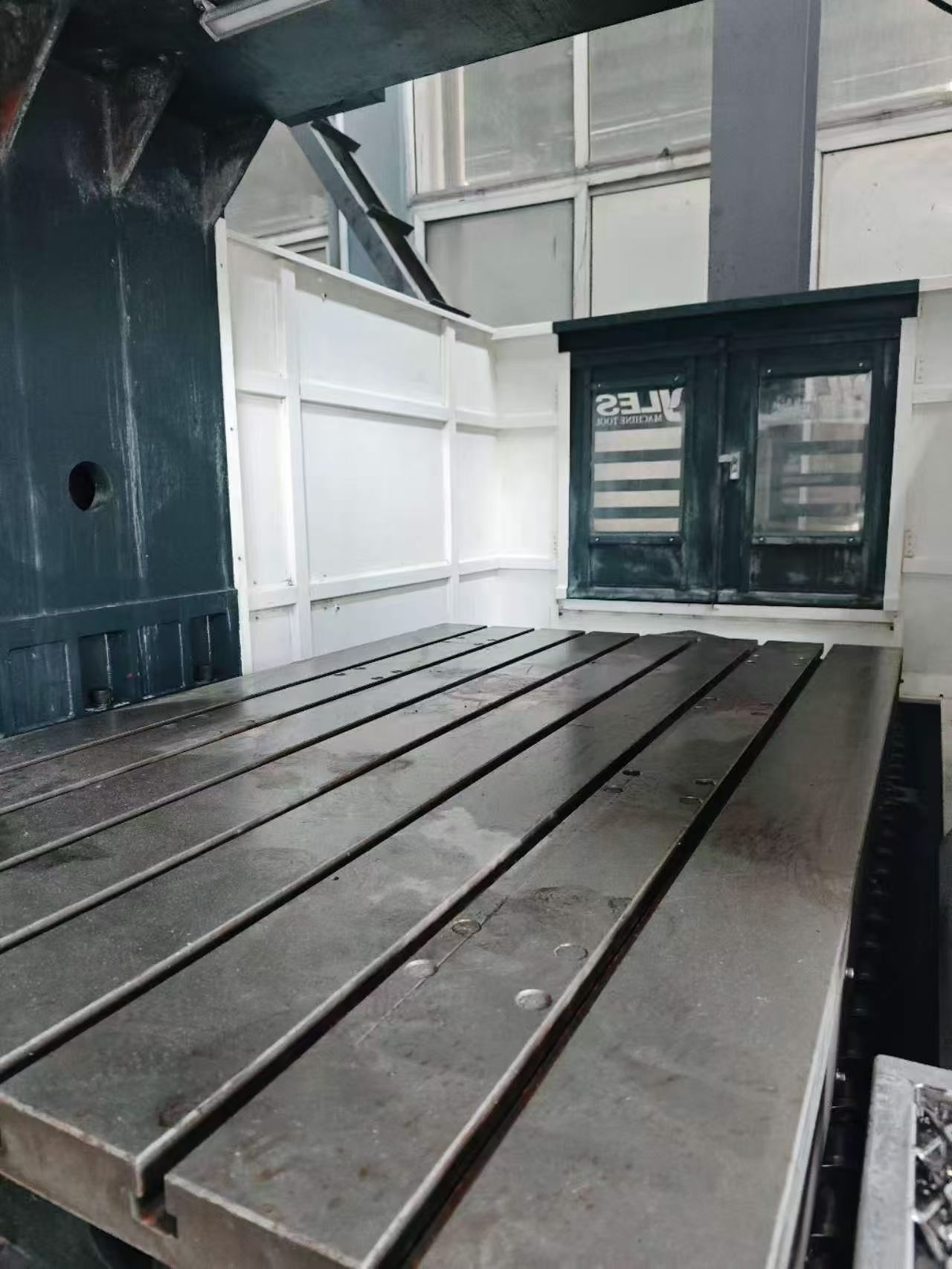

| Worktable size | 2100 x 1300 mm |
| Door width | 1570 mm |
| Door height | 1150 mm |
| Spindle nose to table distance | 1060 mm |
| Chip conveyor | Built-in dual screw-type with chain-type chip conveyor |

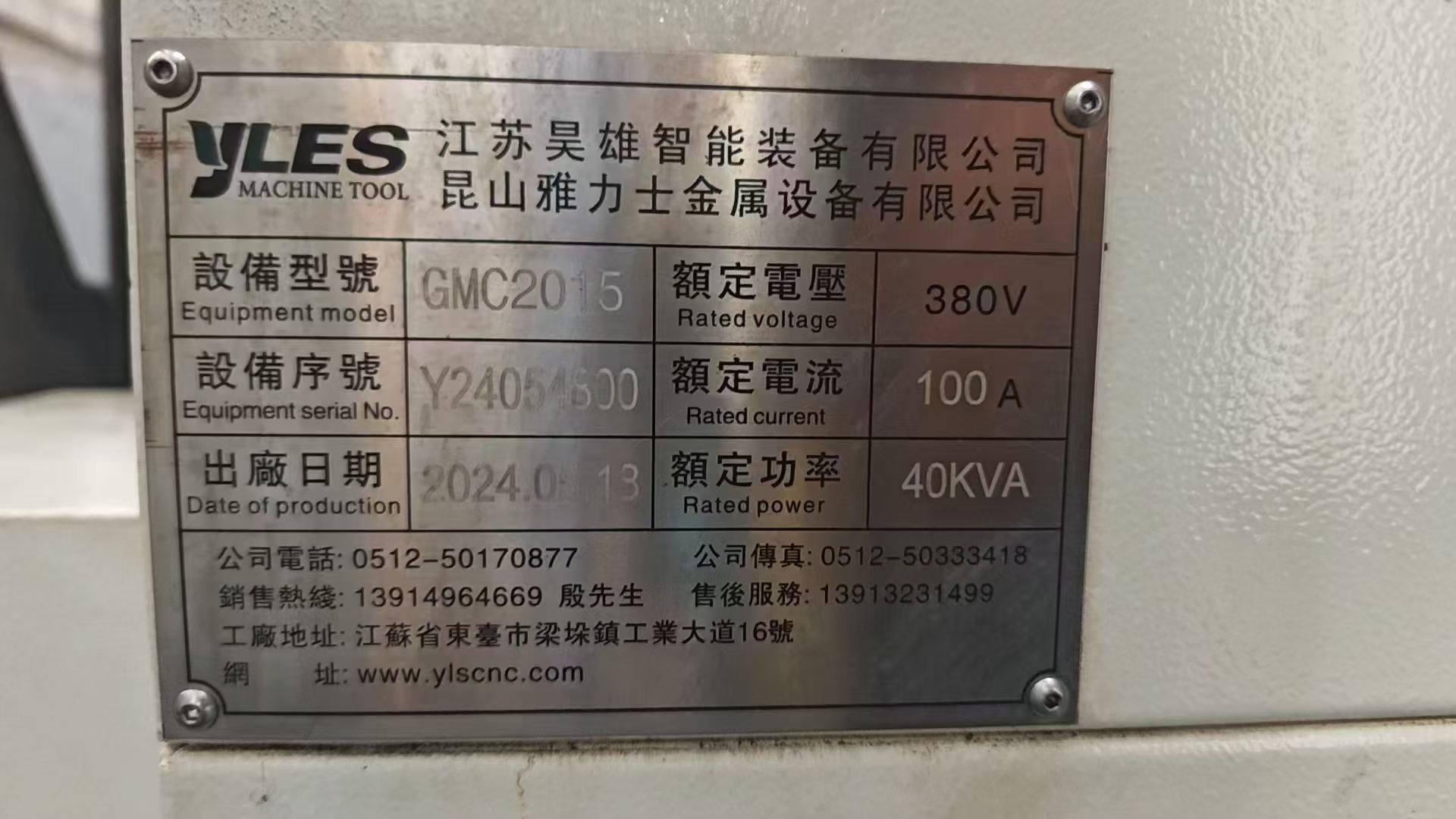

| Rated voltage | 380 V |
| Rated power | 40 KVA |
| Factory date | 2024.03 |
| Guideway Configuration | 3-axis linear guideways |
| Controller | FANUC 0i-MF Plus |
| Spindle Brand | Taiwan Luoyi |
| Tool Magazine | 24 stations, Taiwan Okada mechanical type |
| Brand | YLES |
| Year of manufacture | 2024 |
